Product Description
CPU Parameters | ||
Processor | Intel Celeron J1900 Quad Core 2.0GHz,up to 2.4GHz | |
Memory | 1x DDR3L low voltage memory 2G( Max 8GB) | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller | |
Audio | Realtek ALC662, High Definition Audio (HD) | |
storage | 1xSATA2.0 ;1xMINI-SATA | |
Display output | VGA HDMI LVDS | |
Expland interface | 1xMINI-PCIE(WIFI/4G);1xSIM(external) | |

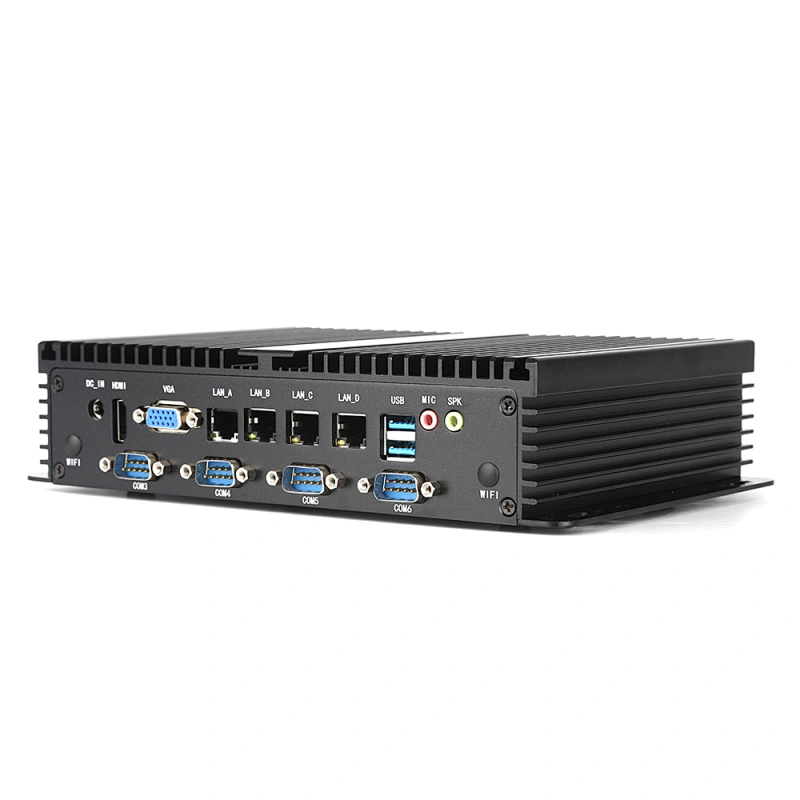

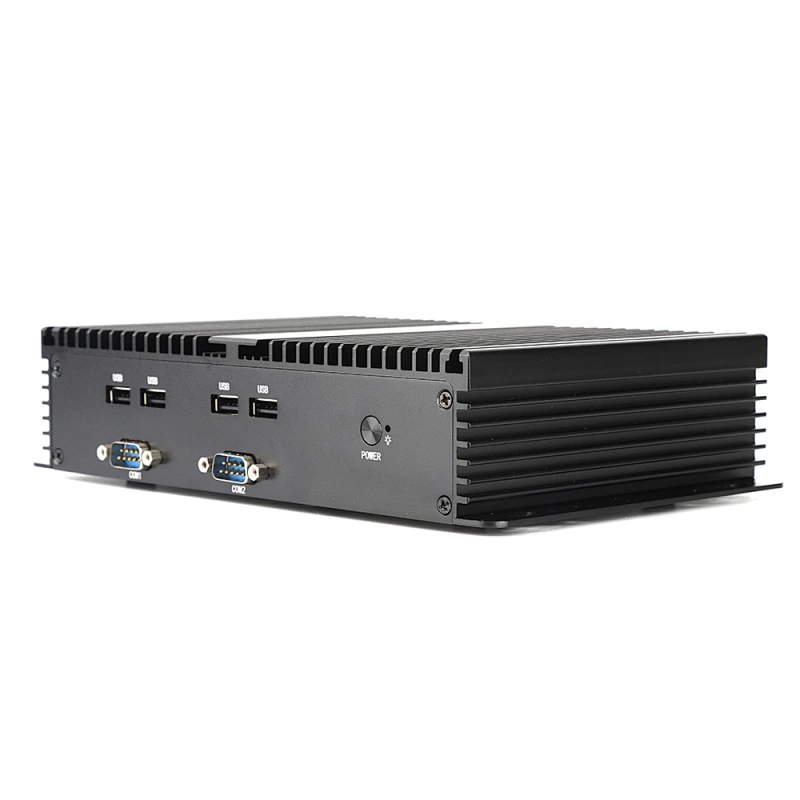

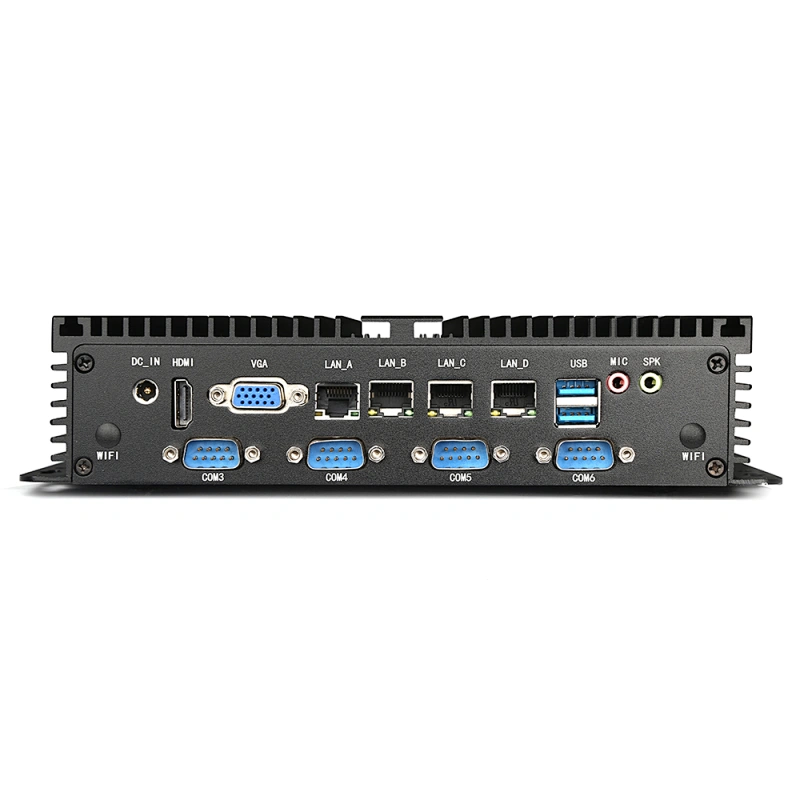

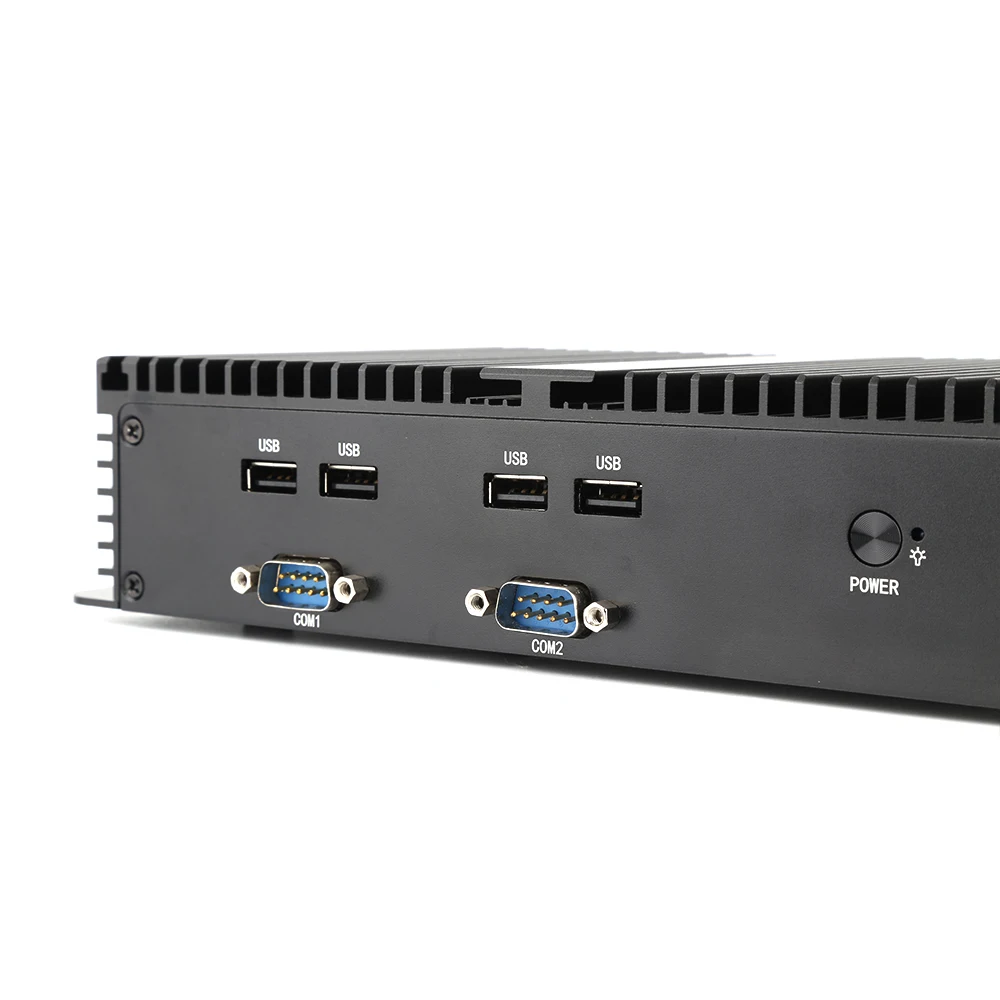

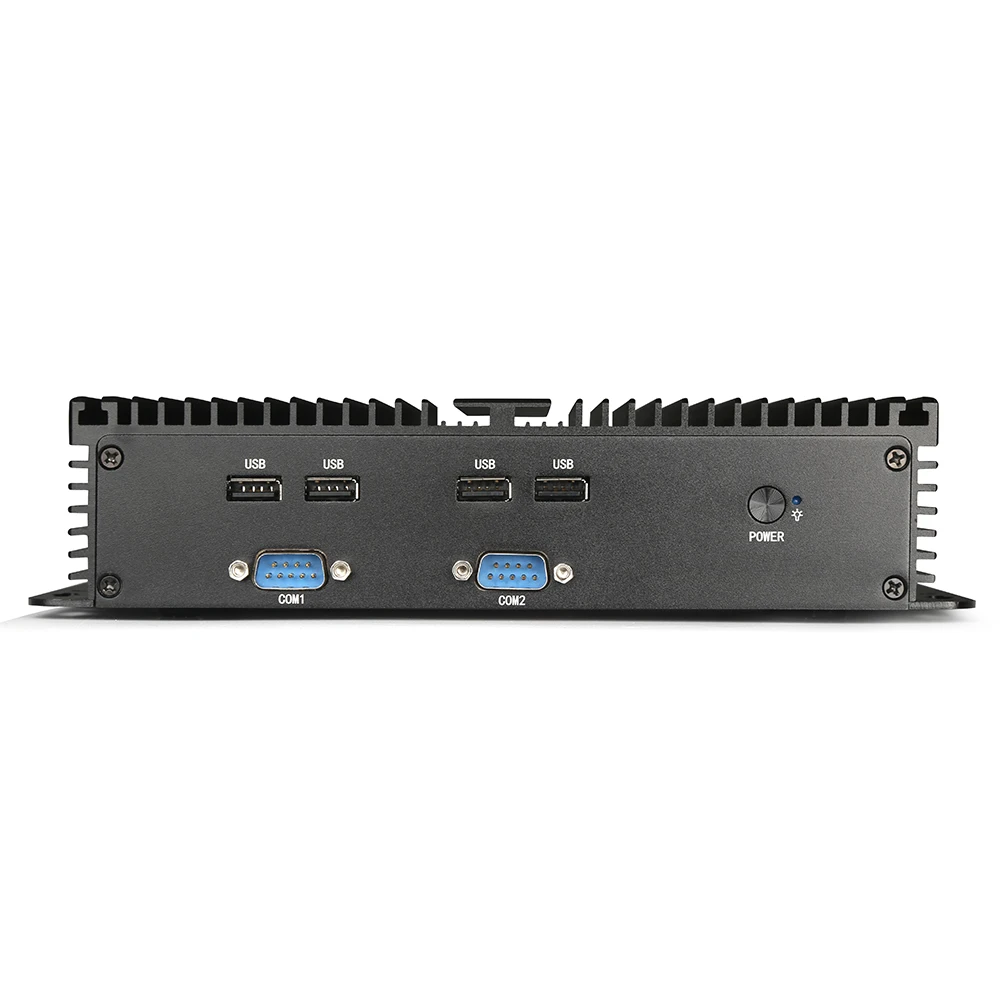

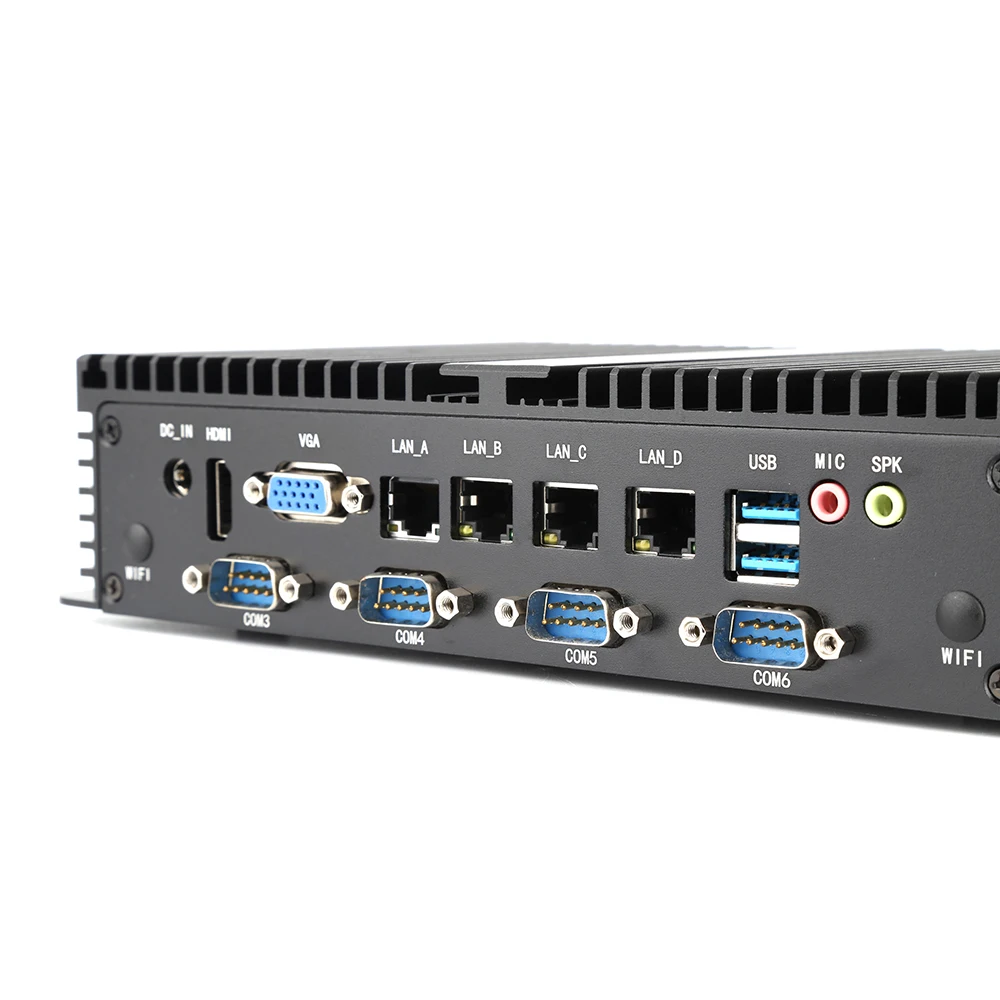

I/O interface | 4*LAN;6*COM;4*USB2.0;2*USB3.0 | |
BIOS | AMI BIOS | |
Other Parameters | ||
Operating environment | -10-60℃;0%-95% Relative humidity 5%~95% @ 40° C, non-condensing | |

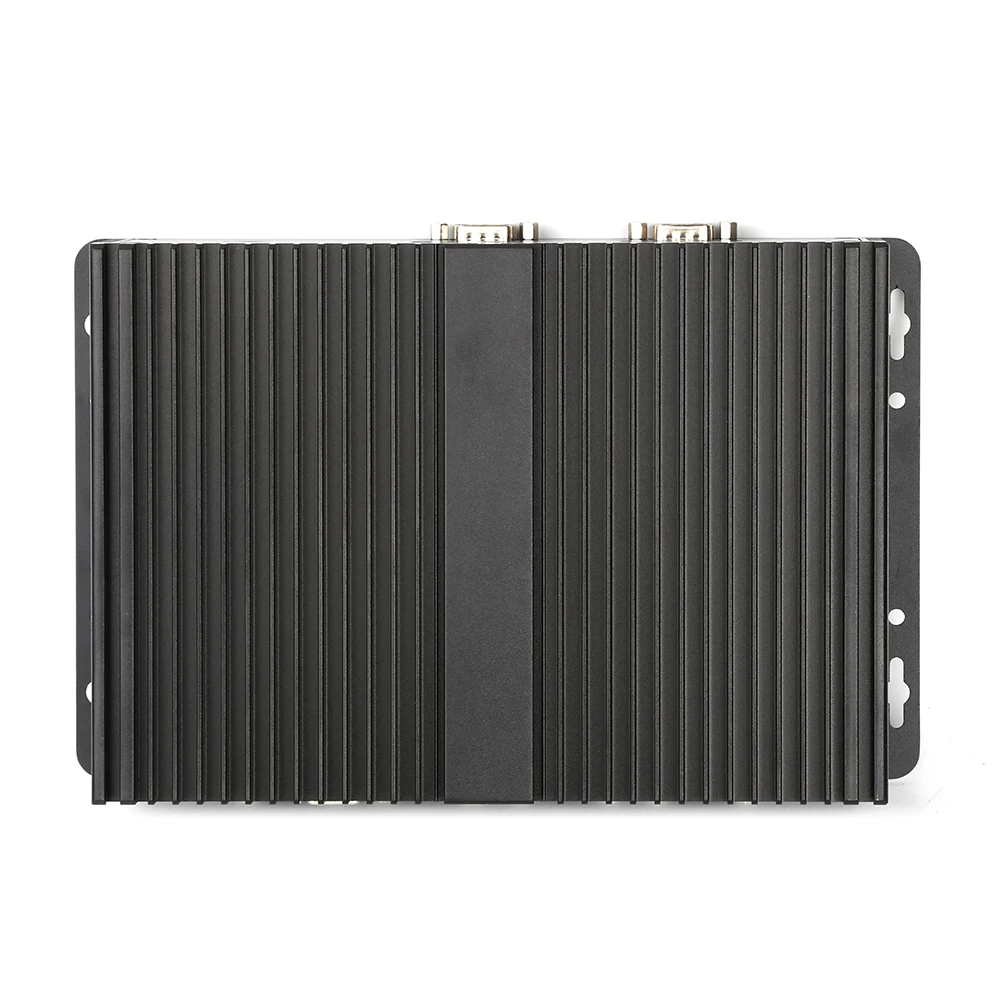

Cooling system | Integrated fanless aluminum alloy | |
Vibration: | -100 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Shock: | 294m/S2 11ms, half sine wave, ±X, ±Y, ±Z direction, 3 times in each direction | |
Case/Bezel | Aluminum alloy panel, shockproof, anti-interference, metal shell (painted) | |
Consumption | <25W | |
Power Supply: | DC12V 5A | |
Dimension: | 215*150*52mm | |
CPU Options | I3-4010U/I5-4200U/I7-4500U | |
DDR Memory | 2G/4G/8G | |
Hard Disk | 32G/64G128G/256G | |
Operating System | Window 7/8/10, Linux | |
Wireless | 802.11 b/g/n Mini-PCIe Intel® wireless network card | |
Communication | 3G/4G Full Netcom IoT module | |
Installation bracket | Desk stand, Vesa bracket | |
Main features Standard Intel® Low Power Quad Core Processor 12x12 ultra-mini low power small board Multi-directional aluminum alloy fanless heat dissipation structure Ultra-thin aluminum alloy design is beautiful and durable CPU integrated graphics support VGA / HDMI 1080P output Optional built-in WLAN/3G, 4G network
