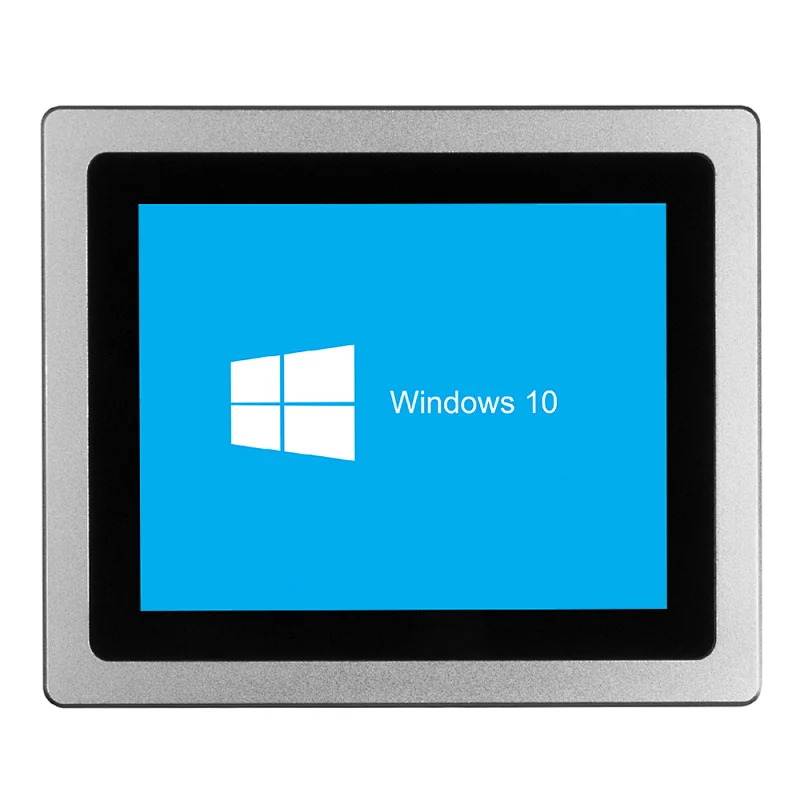

Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc
Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc

Bestview 8 inch capacitive touch panel pc Aluminum Alloy case IP66 front waterproof industrial pc

Quantity:
  • Color:black and silver
  • CPU:Celeron J1900,2.0Ghz, quad core, fanless
  • Chipset:Intel NM10 Express Chipset
  • Memory:on board 2GB DDR3,4GB optional
  • Hard Disk:SSD 32GB/64GB;
  • Pixel Pitch:0.264 x 0.264mm
  • Brightness:400cd/m2
  • Resolution:1024*768
  • OS:Linux/Win XP/Win7/Win8/Win10/Ubuntu
  • Warranty:1 year
  • Certification:FCC
  • Certification:ce
  • Products Status:Stock
  • Type:Panel PC
  • Place of Origin:CN;GUA
  • Brand Name:Bestview
Product Catalogue
Details Images
Products Description
PC
CPU
Intel® J1900 2.0GHz dual core,(core i3, i5 optional)
Memory
2G; DDR3; 4G optional
Hard Drive Capacity
32G ; 64GB,128GB optional
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
WIFI
I/O Interface
4×USB2.0,2×Lan(RJ45),2 x COM(RS232),1×VGA/HDMI/POWER DC
Opetation System
Preinstall test version Windows 7/8/10
LCD panel
Panel size
8"(4:3)
Resolution
1024*768
Brightness (cd/m²)
350nits
Response time
15ms
Contrast ratio
500:1
View angle
80°/80°/70°/75° (R/L/U/D)
Touch panel
Touchscreen Type
capacitive touch, IP66 front
Touch Interface
USB
Touch response time
<8ms
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤30W
Operating Environment
Temperature range
operating: 0 to 50°C, storage :-10 to 60°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight
3kg
Gross weight
3.5kg
Accessories
Power adapter, Wifi, Antenna, open frame bracket
Other
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Certification
CE, FCC
Warranty
1 year warranty
