Product Description

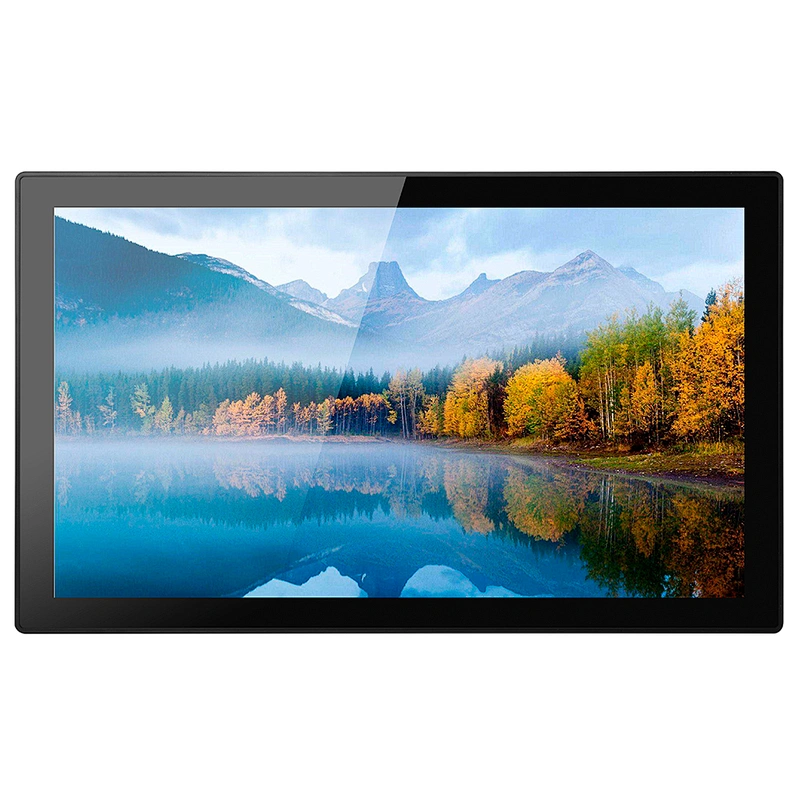

23.6 inch industrial touch all in one pc with IP65 front case
PC | ||
CPU | Intel® Celeron J1900 2.0GHz, Quad cores, fanless | |
Intel® Core i3-3217U 1.8GHz dual cores, with fan | ||
Intel® Core i5-3317U 1.7GHz dual cores, with fan | ||
Memory | 2G DDR3 ( Max. 8G) | |
Hard Drive Optional | SSD: 32GB,64GB,128GB, 256GB | |
HDD: 160GB,320GB,500GB,1TB | ||
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | |
Network | 1×Realtek RTL 8111F Gigabit Ethernet controller | |
Wifi | Optional | |
4G module | Optional | |

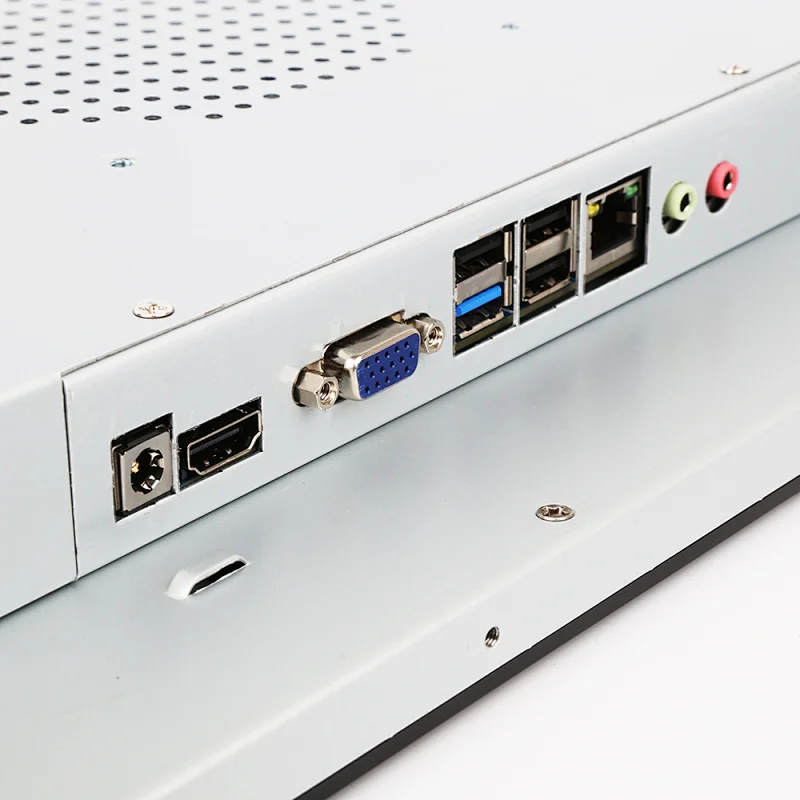

I/O Interface | 2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC | |
Opetation System | Windows 7/8/10/Linux | |
LCD panel | ||
Panel size | 23.6"(16:9) | |
Resolution | 1920x1080 | |
Brightness (cd/m²) | 300 | |
Response time | 15ms | |
Contrast ratio | 1000:1 | |
View angle | 89°/89°/89°/89° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | 10 points Projected capacitive touch | |
Touch Interface | USB | |
Touch response time | <8ms | |
Luminousness | 75-85% | |
Power Supply | ||
External Power Supply | AC 100 - 240V | |
Working voltage | DC 12V | |
Power consumption | ≤18W | |
Operating Environment | ||
Temperature range | operating: -25 to 75°C, storage :-30 to 80°C | |
Relative humidity | 5%~95% @ 40° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Packing Details | ||
Accessories | Power adapter, wall mounting bracket | |
Other | ||
Mounting (options) | 1) Wall brackets for wall-mounting, VESA 100×100mm | |
2) Metal desl stander to support the PC | ||
3) Open frame mount kits( left and right side) to hold the PC | ||
4) Embedded installation, 1 sets screws provided | ||
Certification | CE, FCC | |
Warranty | 1 year warranty | |
