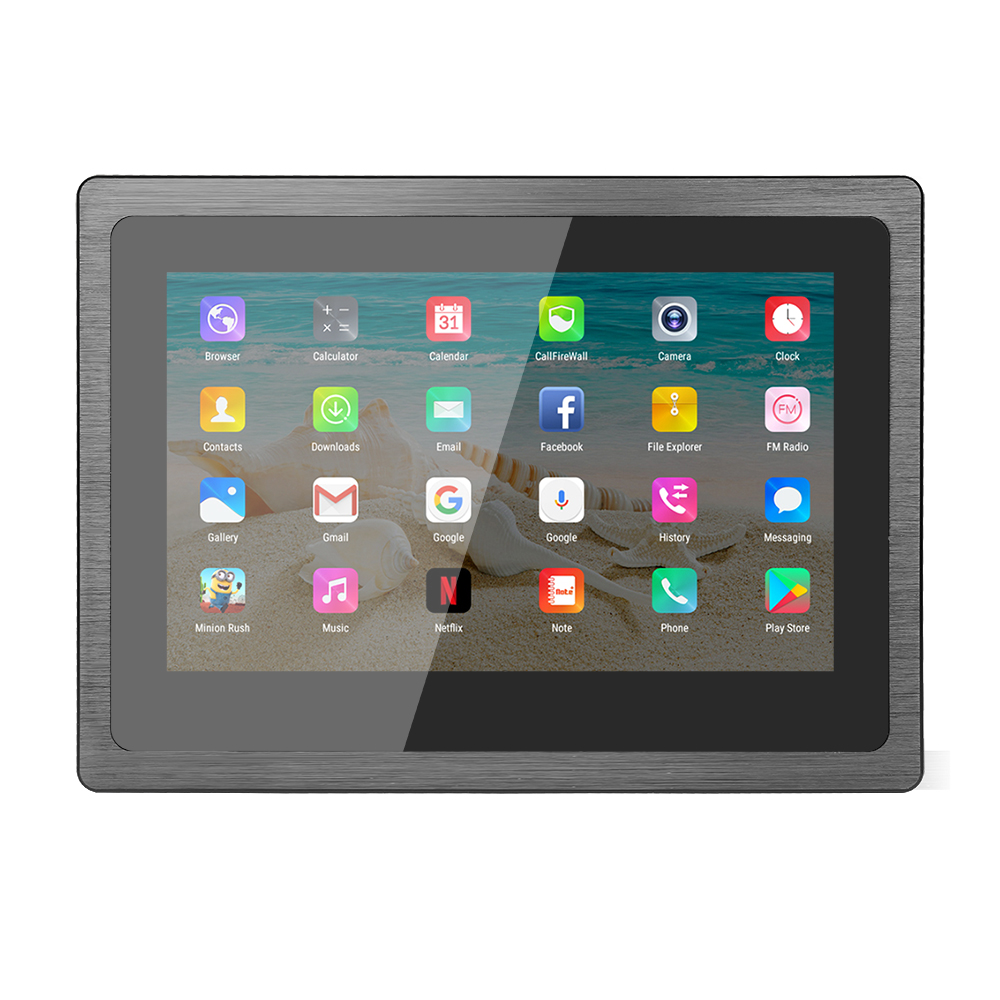

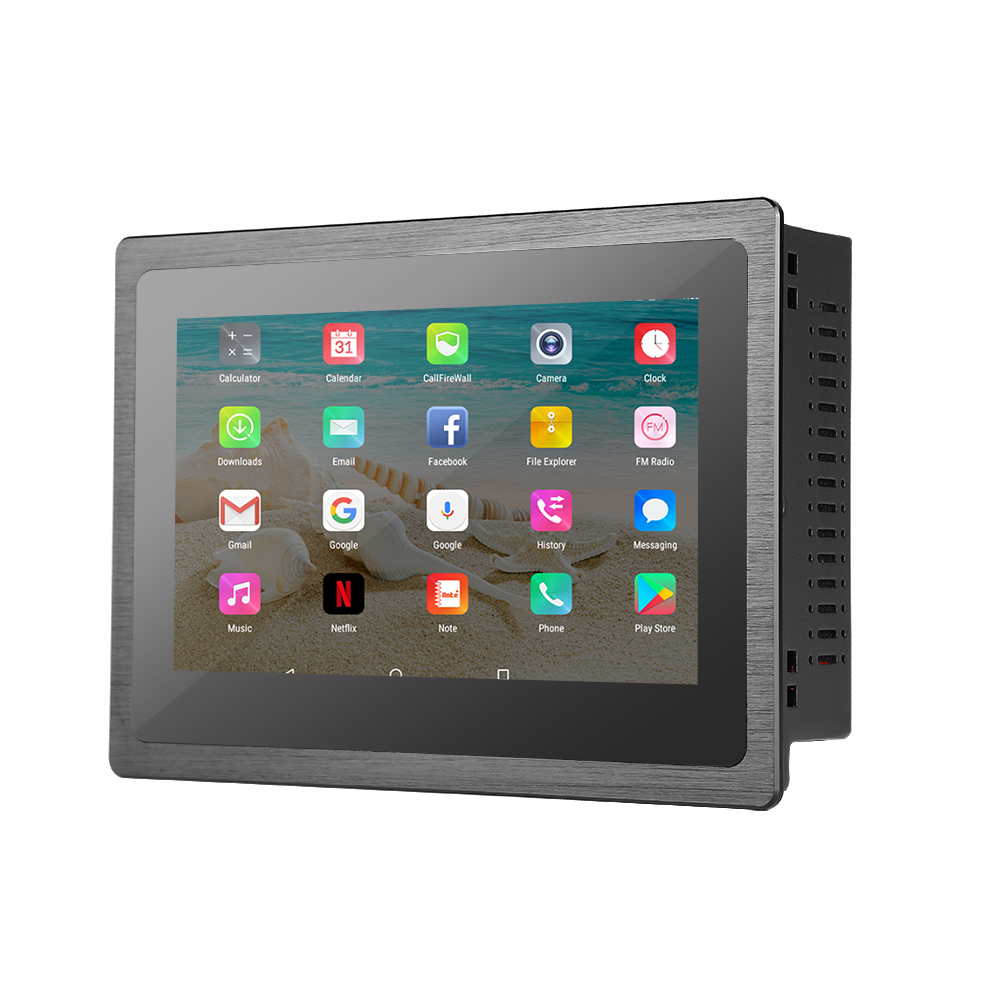

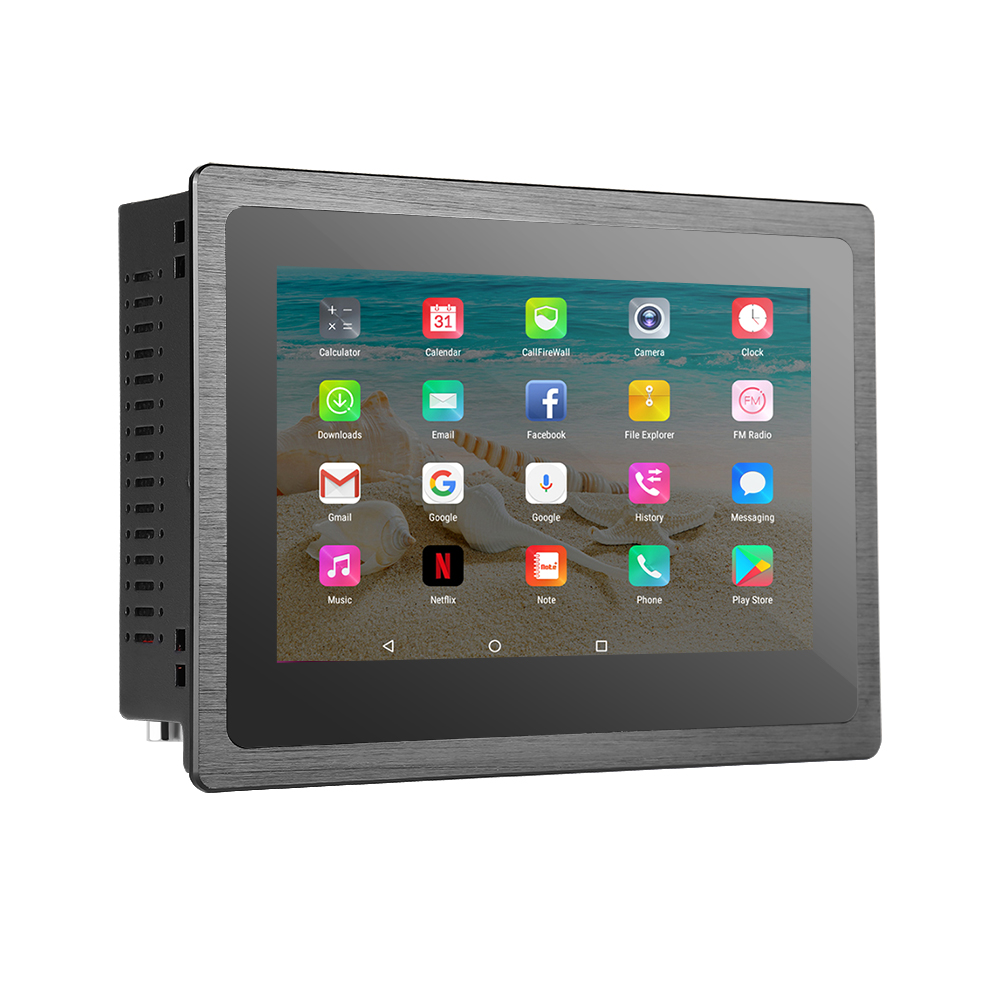

Bestview 7 8 10.1 10.4 12 inch Android panel PC IP65 Waterproof Android Industrial PC RK3566/RK3568 Android 11 Panel PC with POE

Model NO.
YT121APC
Price:
$ 229.00-252.00 / piece
Minimum order quantity:
1 piece
Quantity:
Product Description
Product Description
LCD panel( IPS screen)
Bestview 10/10.1 inch Android Tablet PC IP65 Waterproof Android Industrial PC RK3566/RK3568 Android 11 Panel PC with POE
PC specification
CPU
RK3288 28nm Quad core ARM Cortex A17 1.8 GHz
Memory
2GB DDR3
Nand Flash
EMMC Flash 8GB,24 bit ECC
GPU
Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback
Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Image Format
Support BMP,JPEG,PNG,GIF
Network support
3G, Ethernet, WiFi/Blue-tooth 4.0, wireless peripheral expansion
Wireless Network
WIFI optional

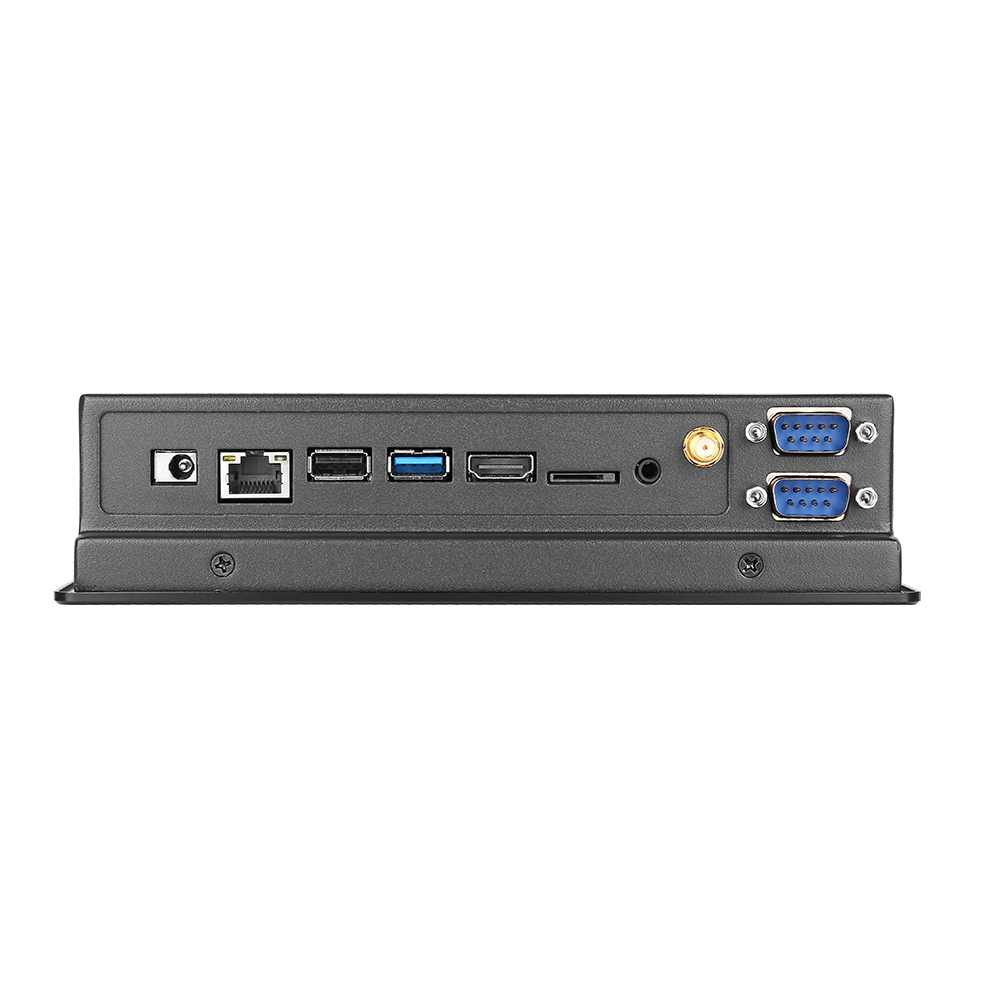

I/O Interface
USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Blue-tooth
Opetation System
Support above Android 4.4-6.1 operation system
LCD panel
Panel size
12.1Inch
Resolution
1280x800
Brightness (cd/m²)
300 cd/m2
Response time
15ms
Contrast ratio
800:1
View angle
85°/85°/80°/80° (R/L/U/D)
Touch panel
Touch Type
10 points projective Capacitive touch
Touch Interface
USB
Response time
<8ms
Transmittance
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, Wifi antenna
Other

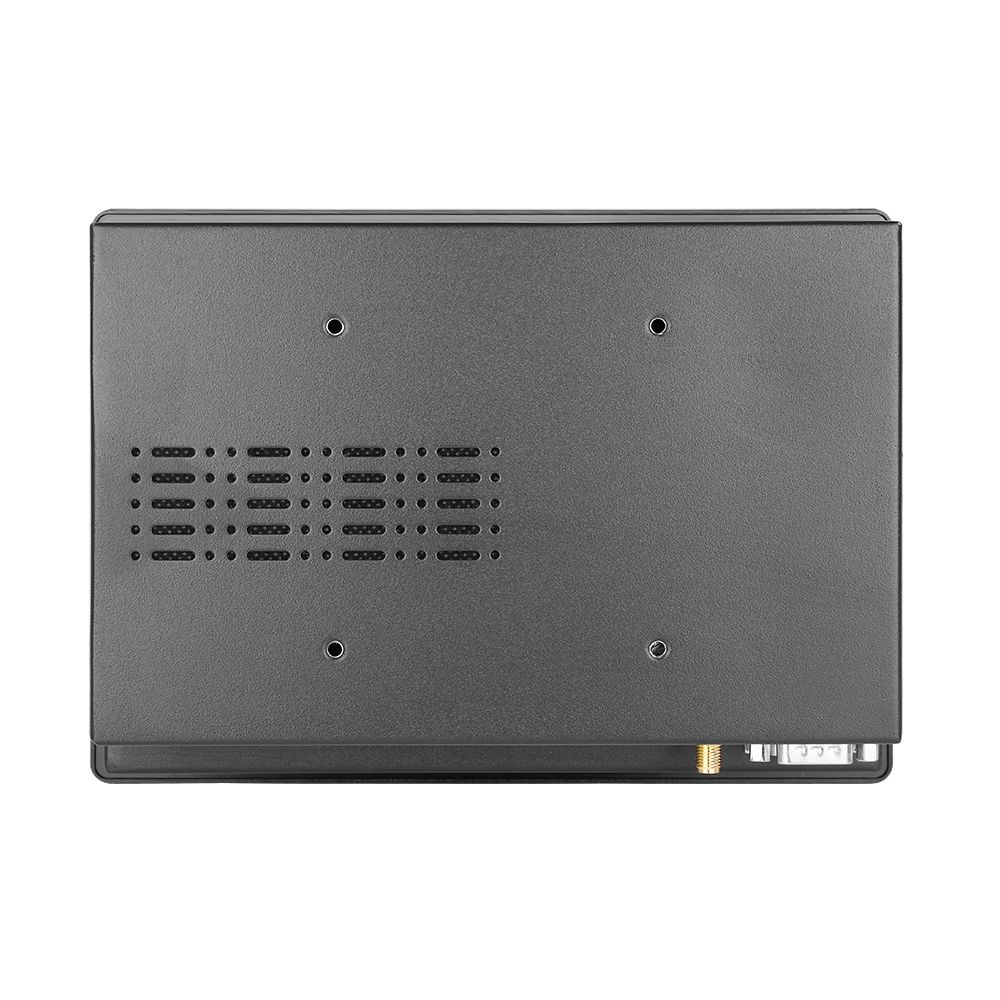

Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide Floor standing to support the PC
Certification
CE, FCC,ROHS
Warranty
1 year warranty
Product Usage
Company Profile
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.
Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.
Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D
experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.
Packing&Shipping
FAQ
Q: Are you a trading company or factory?
A: We are a professional industrial Panel PC/monitor/Android touch panel PC manufacturer, Established more than 10 years

Q: What’s Minimum Order Quantity?
A: 1 pcs sample. welcome to test our sample first and then place bulk order.

Q: How long is your Lead Time ?
A: Different quantity with different production time.regular product with 7-10 days, customized with 15-25 days around.

Q: What’s your Payment Terms?
A: TT or Paypal, Western Union.
We also welcome to place Trade Assurance order on Alibaba

Q: Do you give any discount?
A: we surely try our best to help you get the best price and good service at the same time.

Q: Do you support OEM / ODM?
A: Yes, pls let us know your detailed requirements then we can provide you the solution.
