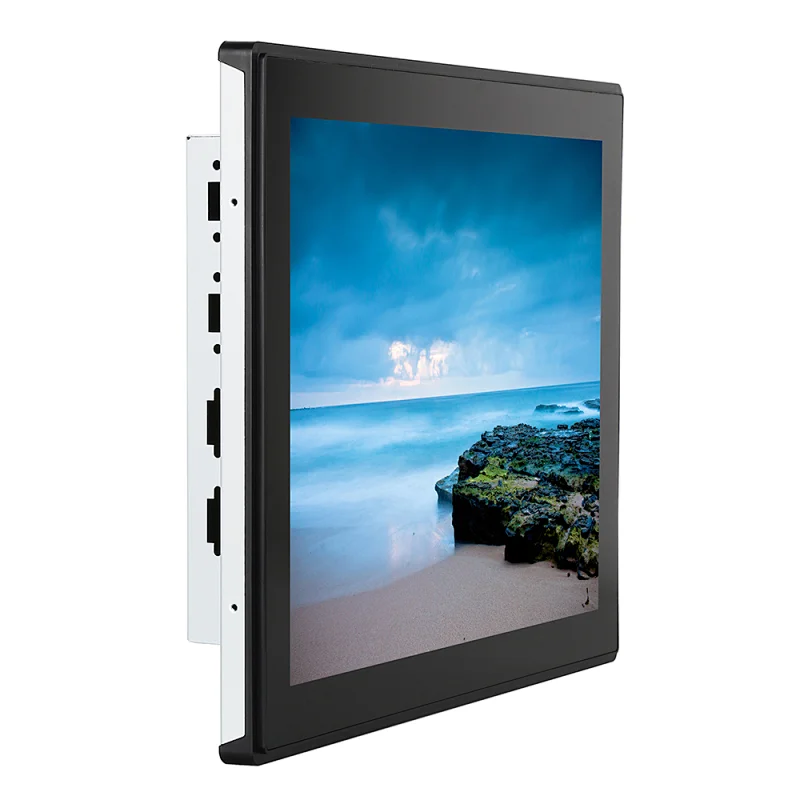

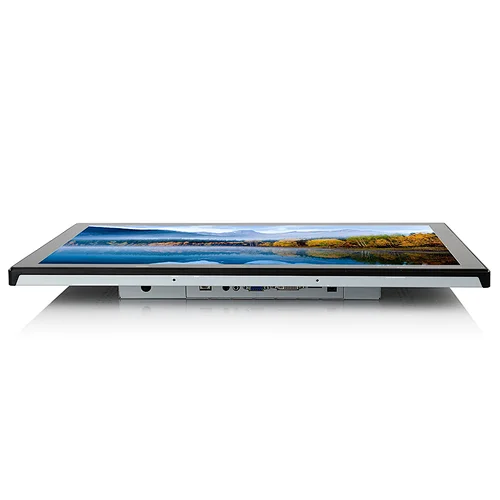

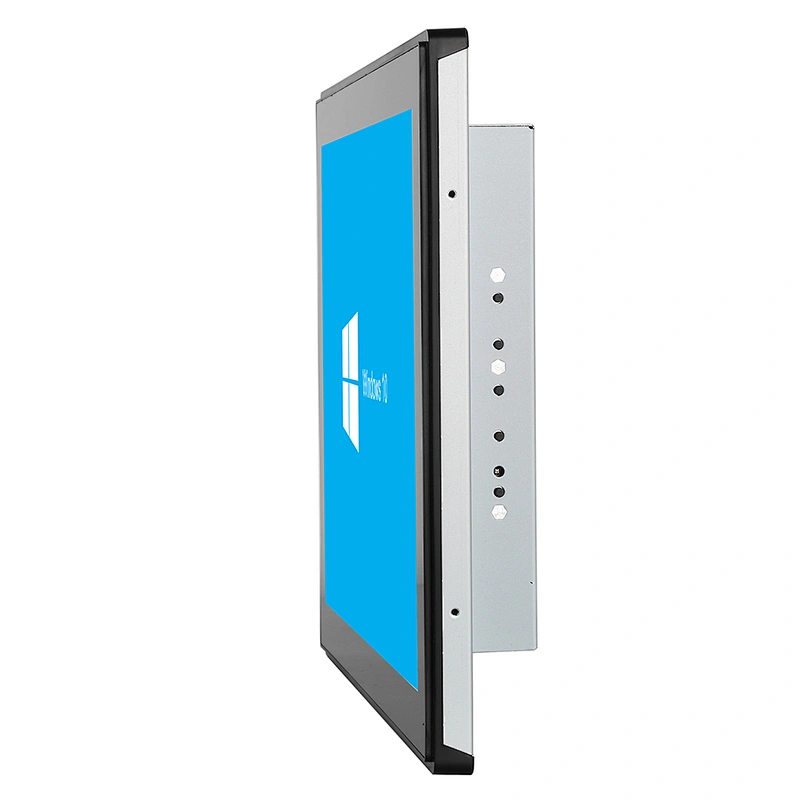

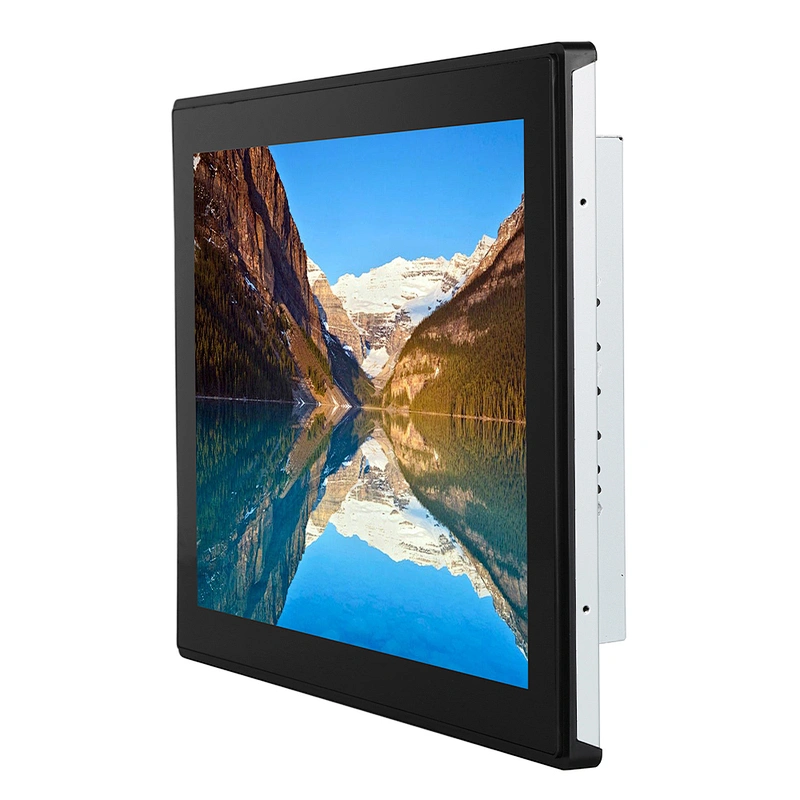

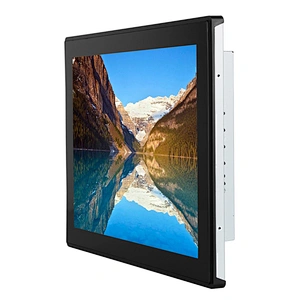

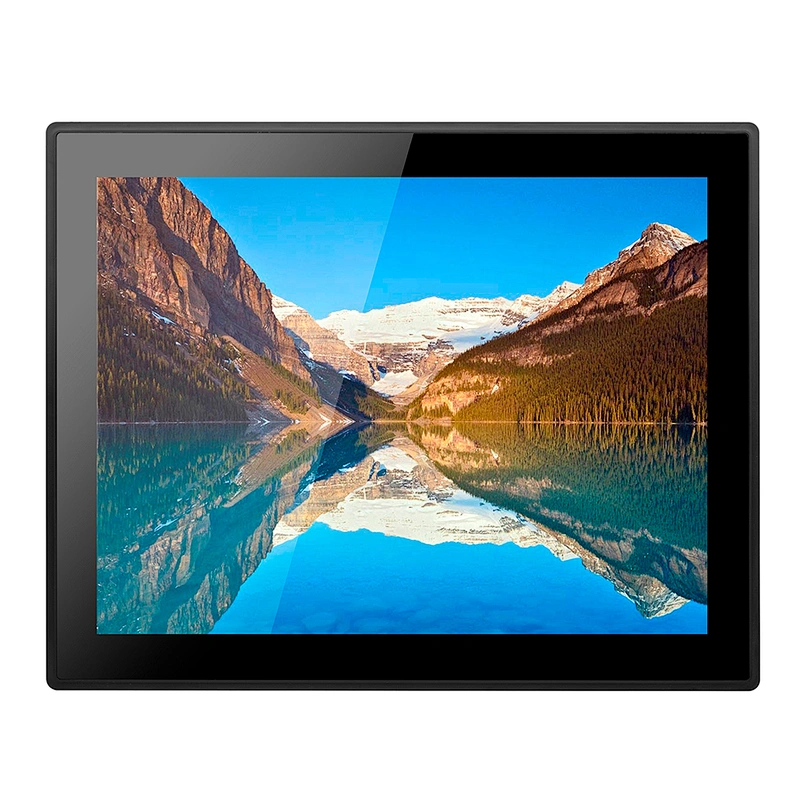

19 inch embedded open frame touch screen lcd monitor self-service kiosk monitor
19 inch embedded open frame touch screen lcd monitor self-service kiosk monitor | |
LCD panel( IPS screen) | |
Panel size | 19” (4:3) |
Native Resolution | 1280x1024@75Hz |
Brightness (cd/m²) | 350cd/m2 |
Contrast ratio | 1000:1 |
View angle | 85°/85°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 Ponits projective capacitive touch |
Touch Interface | USB |

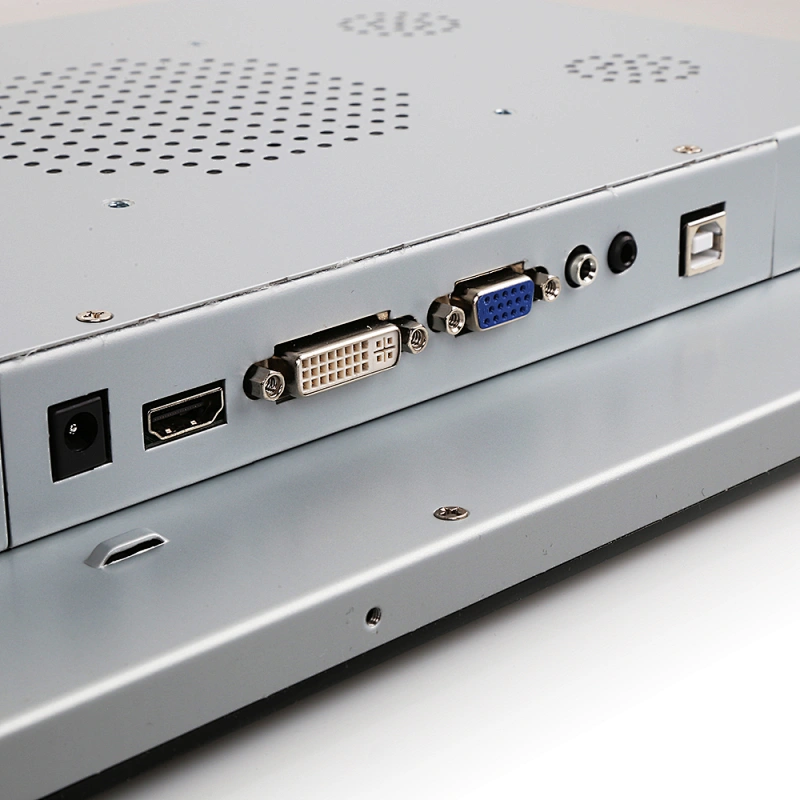

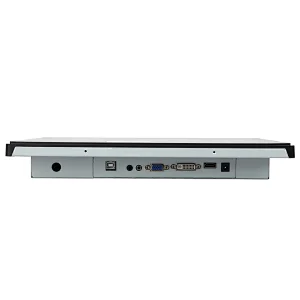

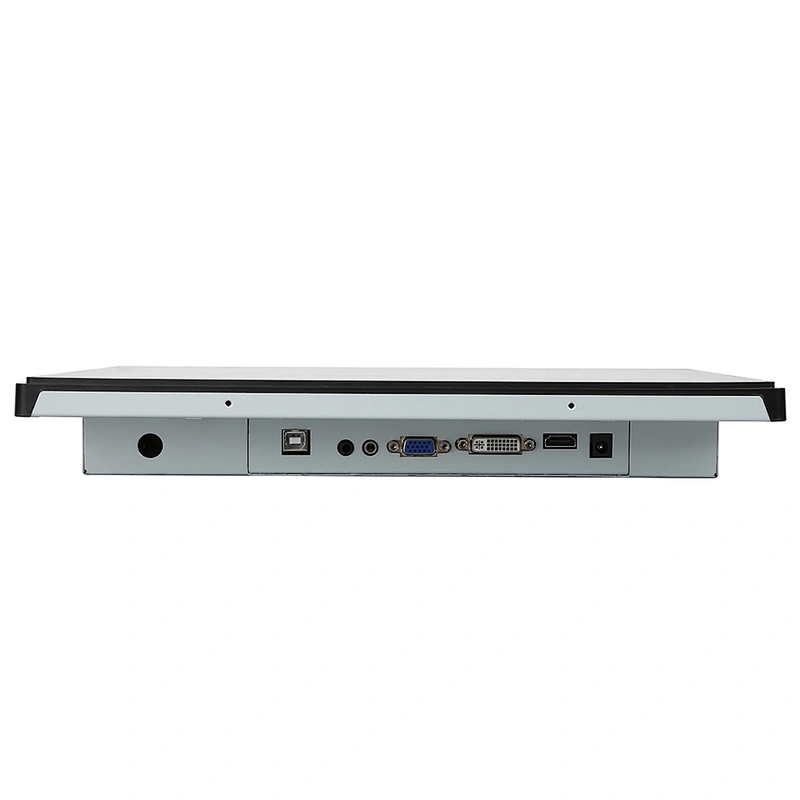

SignalPorts | |
VGA | 1×VGA |
DVI | 1×DVI |
HDMI | 1×HDMI |
USB | 1xUSB |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤30W |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Accessories | Power adapter, VGA cabl,DVI cable, RS232 touch cable, Touch driver disk,Remote Control, User Manual (English) ,Stander optional |
Others | |
IP Rate | Front case IP65 waterproof |
Certification | CE, FCC, ROHS |
Warranty | 1 year warranty |
ShenzhenBESTVIEW Electronic Co., Ltd. founded in 2003 Shenzhen China,One of the earliest supplier dealwith various size LCD monitors(Touch &Non-touch),Touch Panel PC and Broadcasting Field monitor.With its own professionalR&Dandproduction Team,regular come out 3-4 New products per year.
QUALITY is one of the Key factors for BESTVIEW’s sustainable business success-we will focus on continuous improvement and development of our quality system. Quality certificate includingISO9001-2008 Quality Management System,CE,ROHS,FCC and KCC.
BESTVIEW Sales Team takes part in theExhibition every yearheld in HongKong,Netherlands,USA and Germany to meet the NEW and OLD clients from all over the world.
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
1.Youranyinquiryor question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
3.To be our agent or distributor is well welcomed.
4.You can find the right product you want,whatever the most competitive price or Highest quality!
