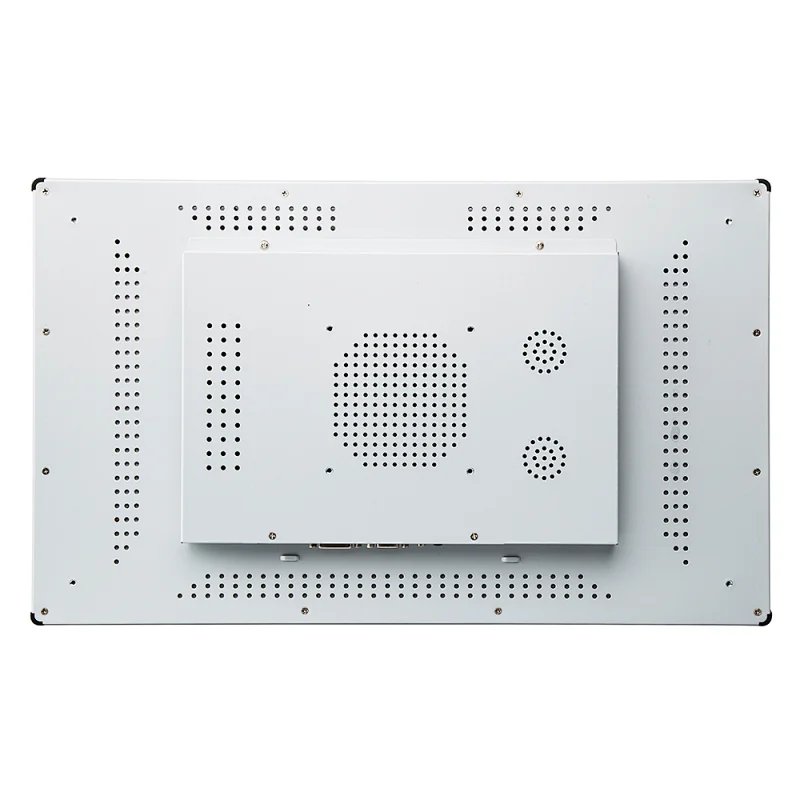

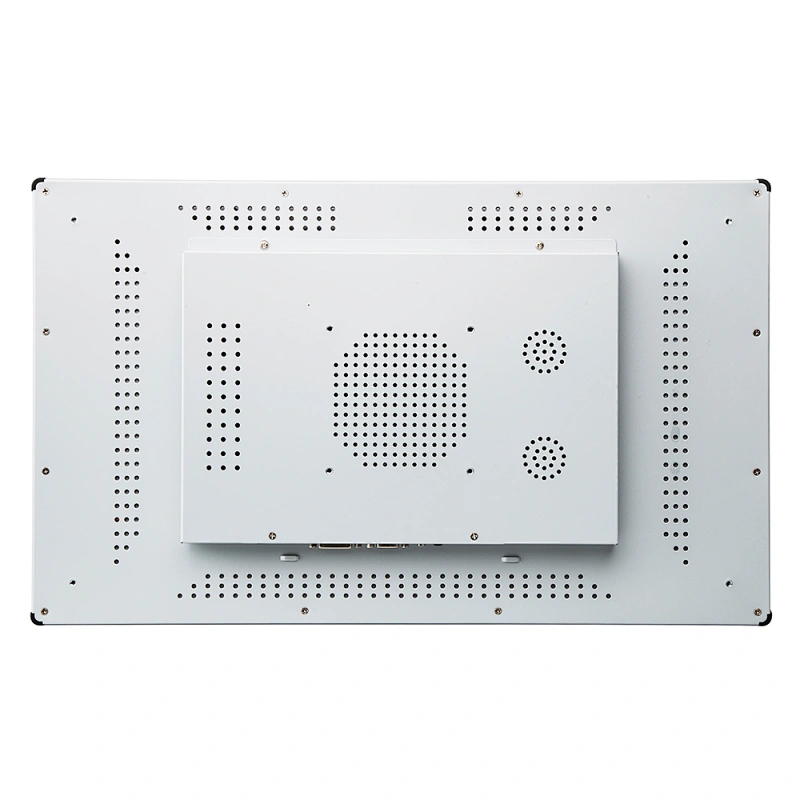

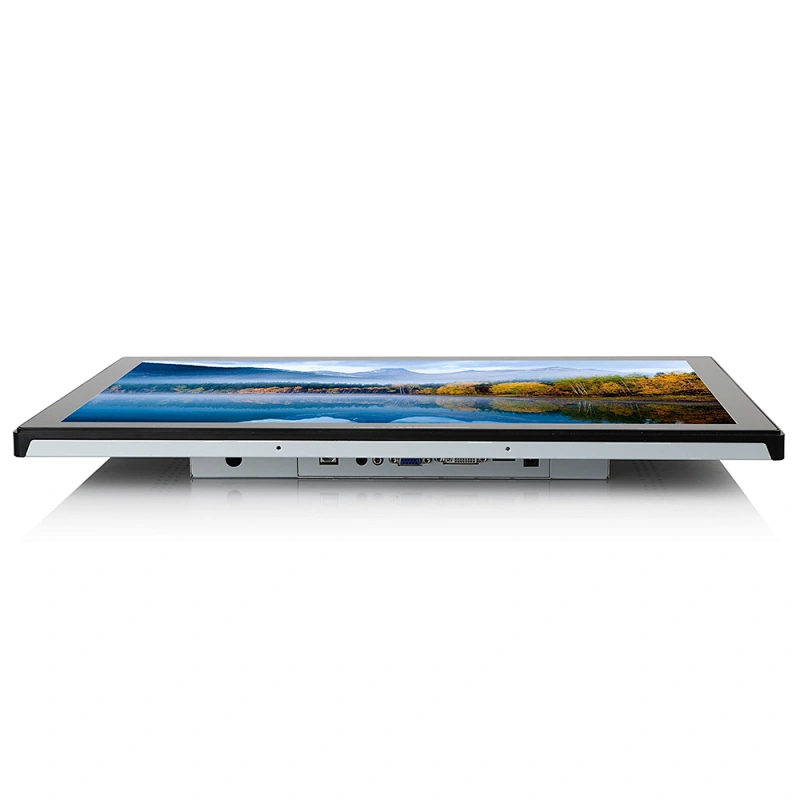

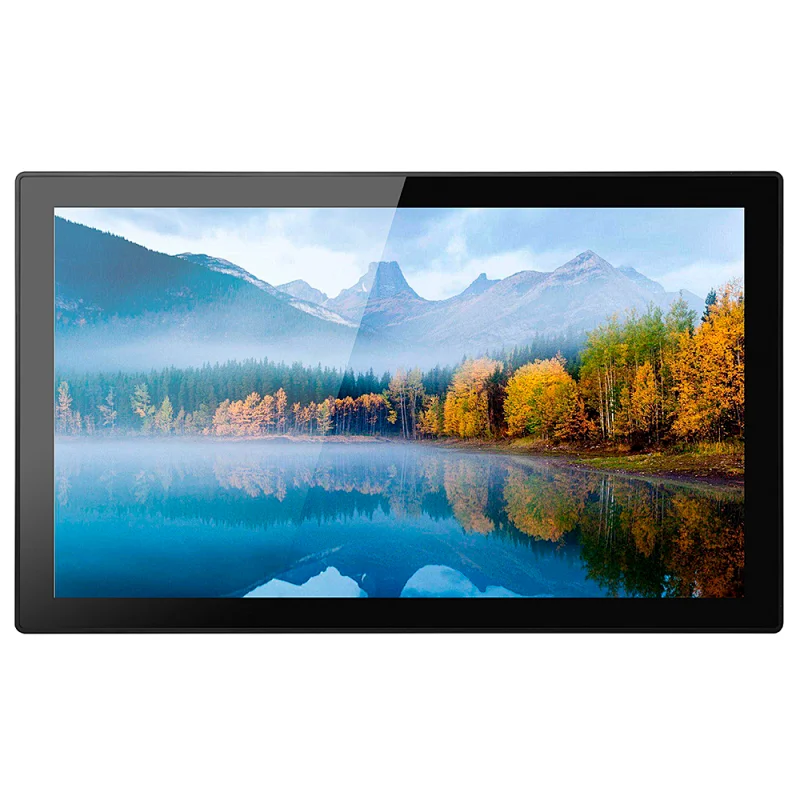

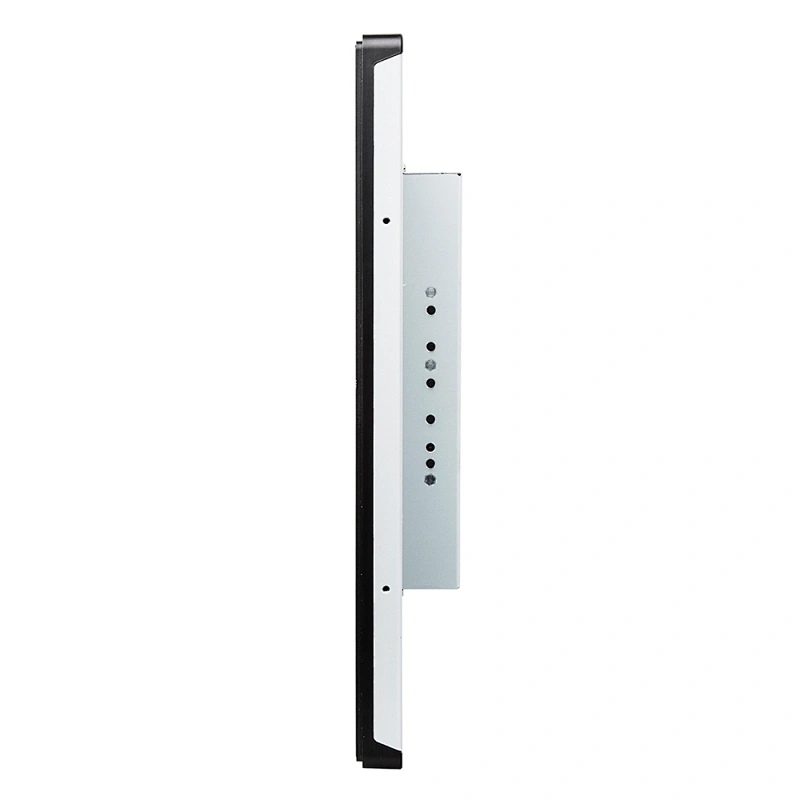

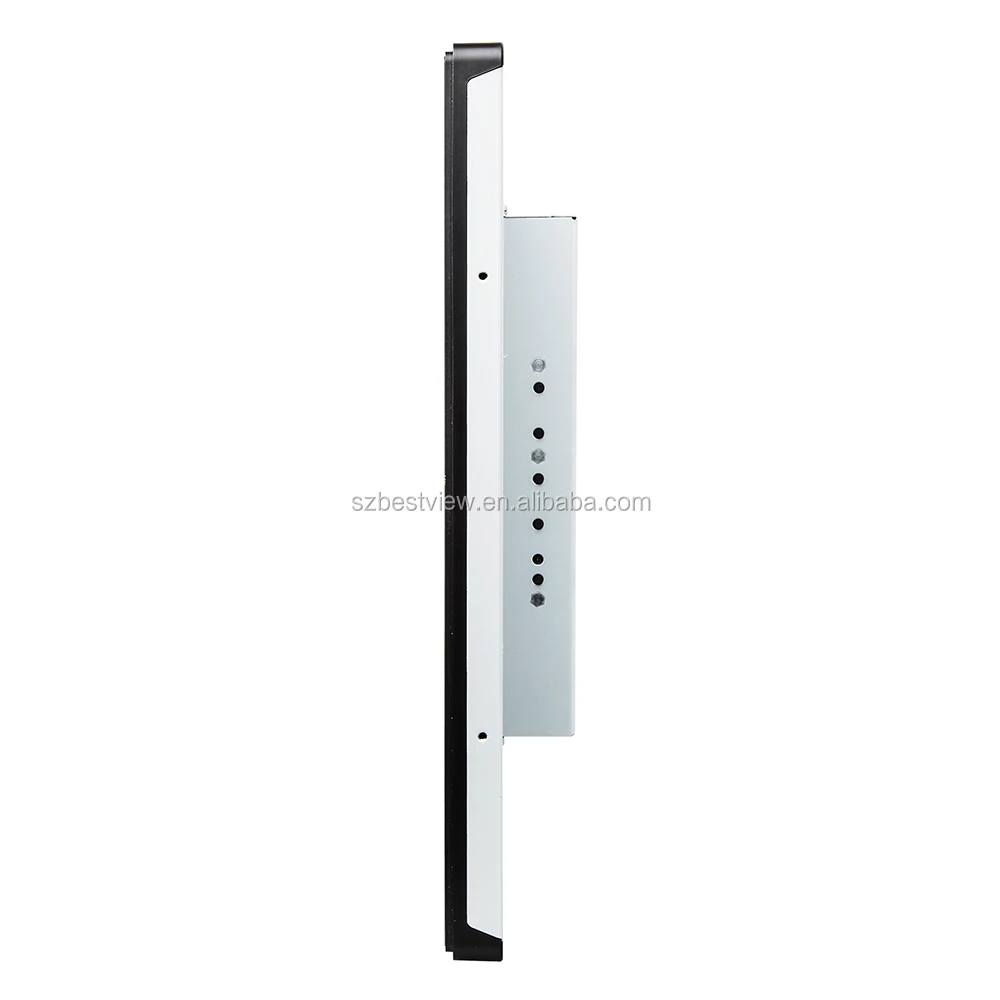

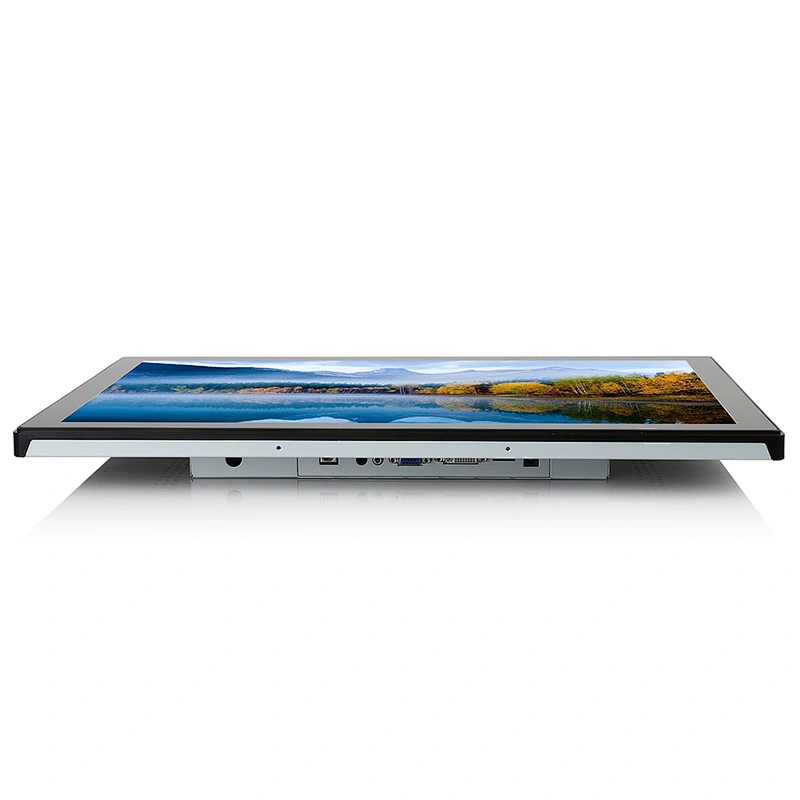

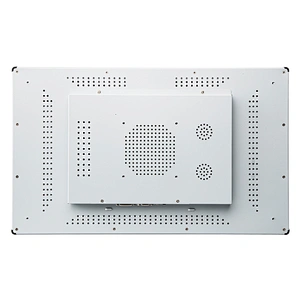

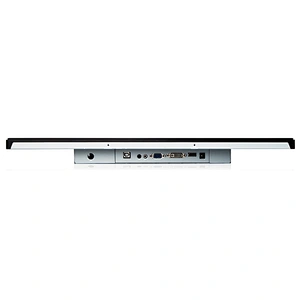

Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame
Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame
Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame
Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame
Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame
Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame

Bestview 21.5 inch industrial touch screen lcd monitor high brightness front panel waterproof monitor open frame

Model NO.:
YT215-WOC
Applications
·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
·Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
·Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
·Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
·Non-profit Organizations: Telecommunications, post offices, hospital, schools;
·Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
·Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Product Description
Products Description
LCD panel( IPS screen)
Panel size
21.5” (16:9)
Native Resolution
1920*1080
Brightness (cd/m²)
250 cd/m2
Contrast ratio
1000:1
View angle
89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type
10 points Projected capacitive touch
Touch Interface
USB

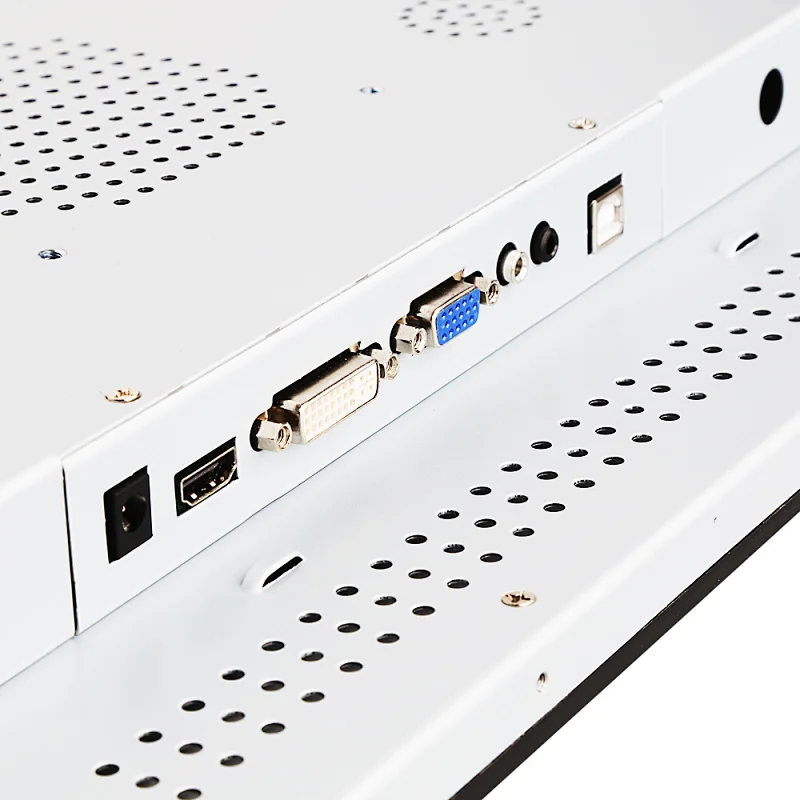

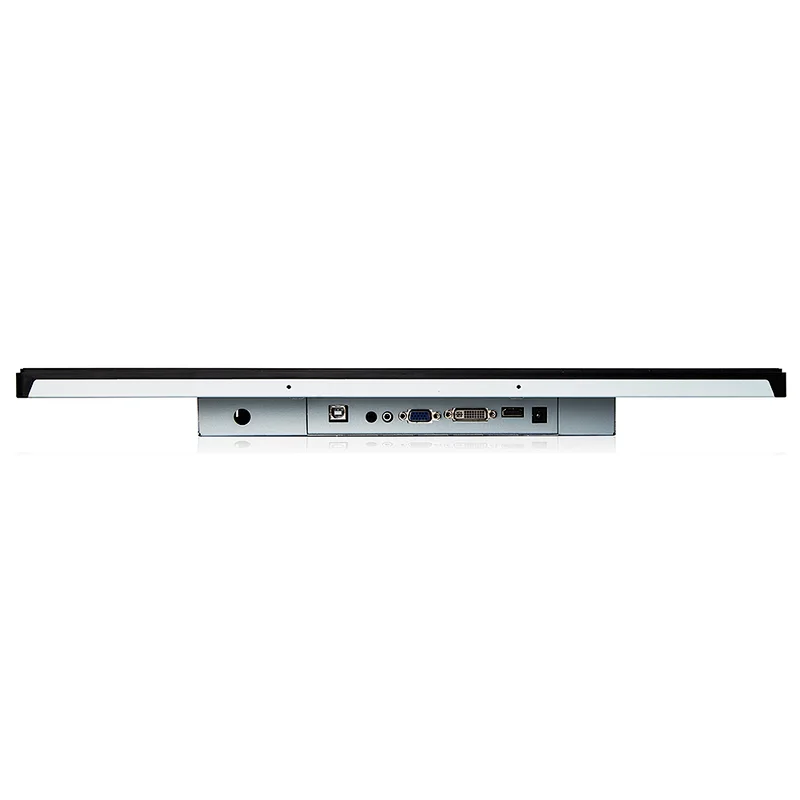

Signal Ports
VGA
1×VGA
USB
1xUSB for touch
HDMI
1xHDMI
DVI
1XDVI
OSD
OSD control
Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support OS
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤30W
Operating Environment
Temperature Range
operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity
operating: 10% to 90% , storage :5% to 90%
Packing Details
Packing detail
1pcs/box   2pieces/carton
Accessories
 Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional
Others
Warranty
1 year warranty
Company Profile
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch
monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got
certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.
Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian
World Studios etc.
Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D
experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product
has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.
Product Usage
Packing&Shipping
FAQ
1. How to pay? For bulk order, it is better to pay by TT(HSBC), to save your banking charges. For sample and small order, Paypal and Western Union are acceptable. 2. When can you get it? For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days. OEM or ODM order, the lead time is negotiated. 3. How to get? All items can be shipped by DHL, UPS, FedEx, EMS, BY AIR, BY SEA and so on ACCORDINGLY.
