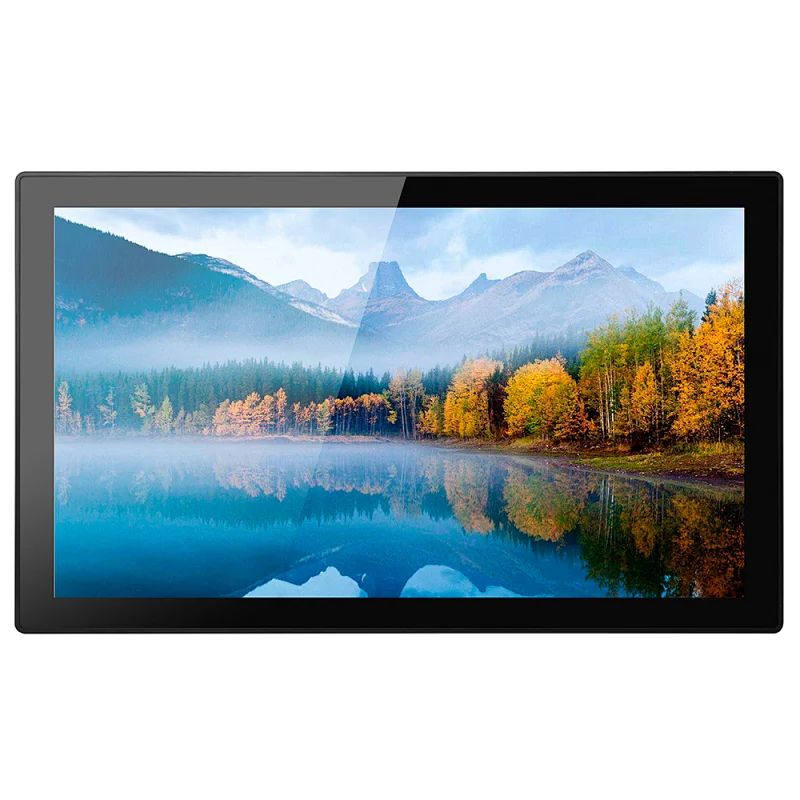

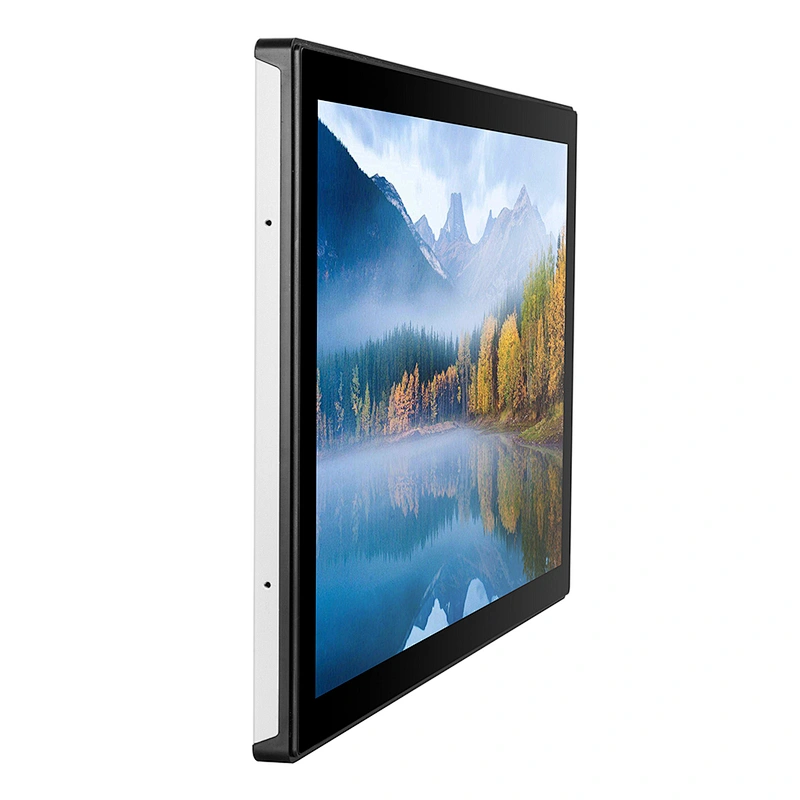

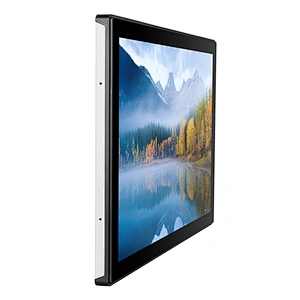

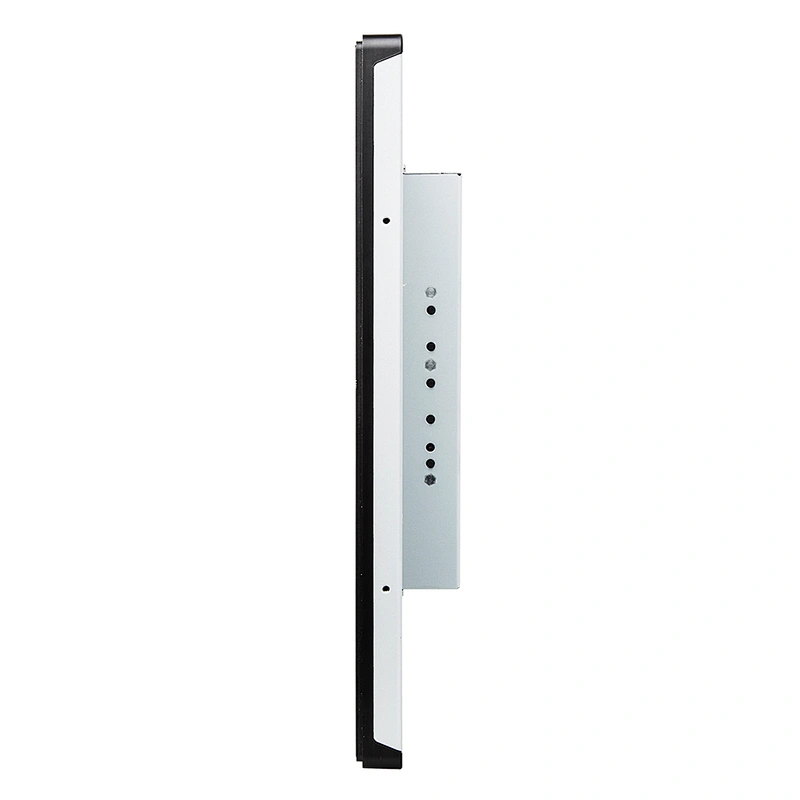

Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC

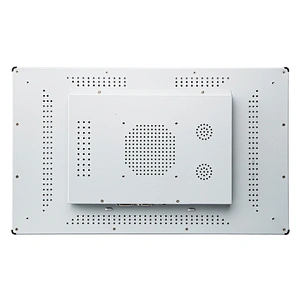

Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC
Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC
Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC
Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC
Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC

Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC

Model NO.:
YT32PC-WAC
Applications
·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
·Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
·Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
·Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
·Non-profit Organizations: Telecommunications, post offices, hospital, schools;
·Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
·Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Product Description
LCD panel( IPS screen)
Bestview RK3288/RK3399 32 inch android Industrial touch panel PC open frame touch screen panel PC
PC specification
CPU
RK3288 28nm Quad core ARM Cortex A17 1.8 GHz
Memory
2GB DDR3
Nand Flash
EMMC Flash 8GB,24 bit ECC
GPU
Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback
Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Image Format
Support BMP,JPEG,PNG,GIF
Network support
3G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion
Wireless Network
WIFI optional

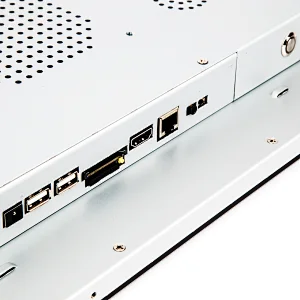

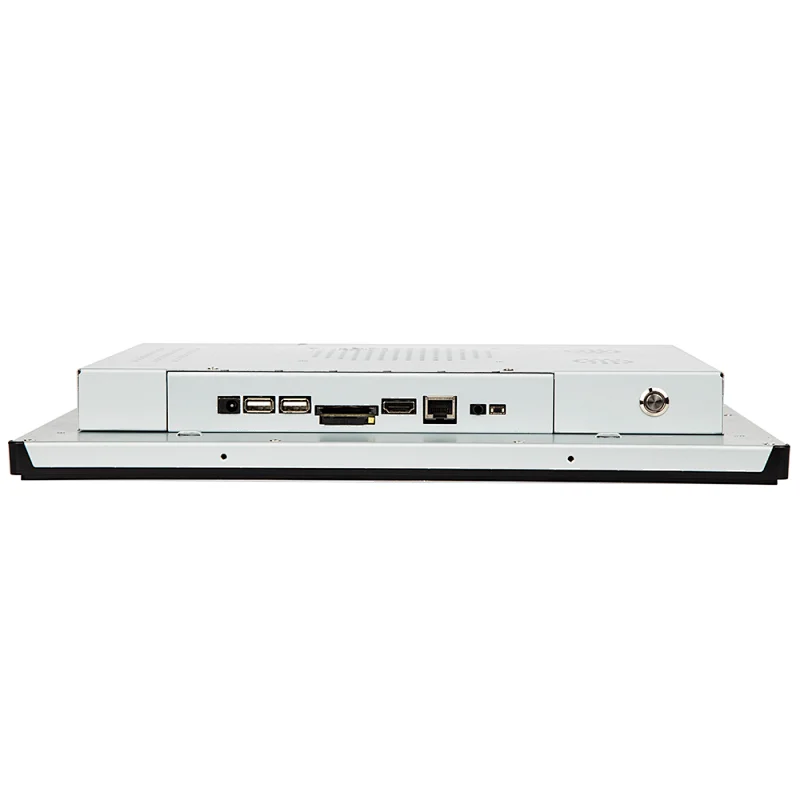

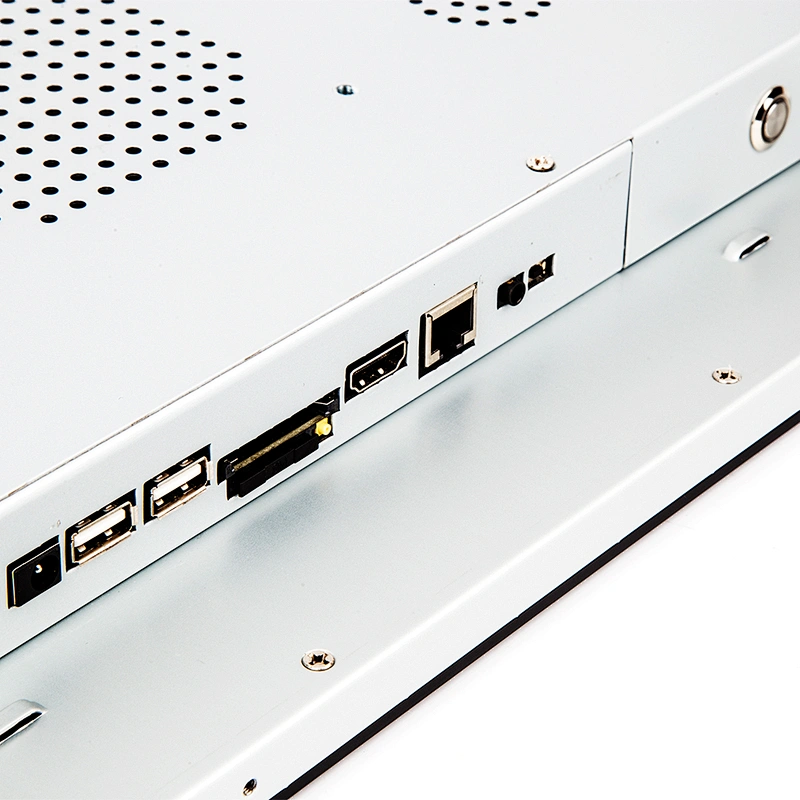

I/O Interface
USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Bluetooth
Opetation System
Support above Android 4.4-6.1 operation system
LCD panel
Panel size
32 Inch
Resolution
1920x1080
Brightness (cd/m²)
300 cd/m2
Response time
15ms
Contrast ratio
3000:1
View angle
89°/89°/89°/89° (R/L/U/D)
Touch panel
Touch Type
10 points projective Capacitive touch
Touch Interface
USB
Response time
<8ms
Transmittance
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, Wifi antenna
Other

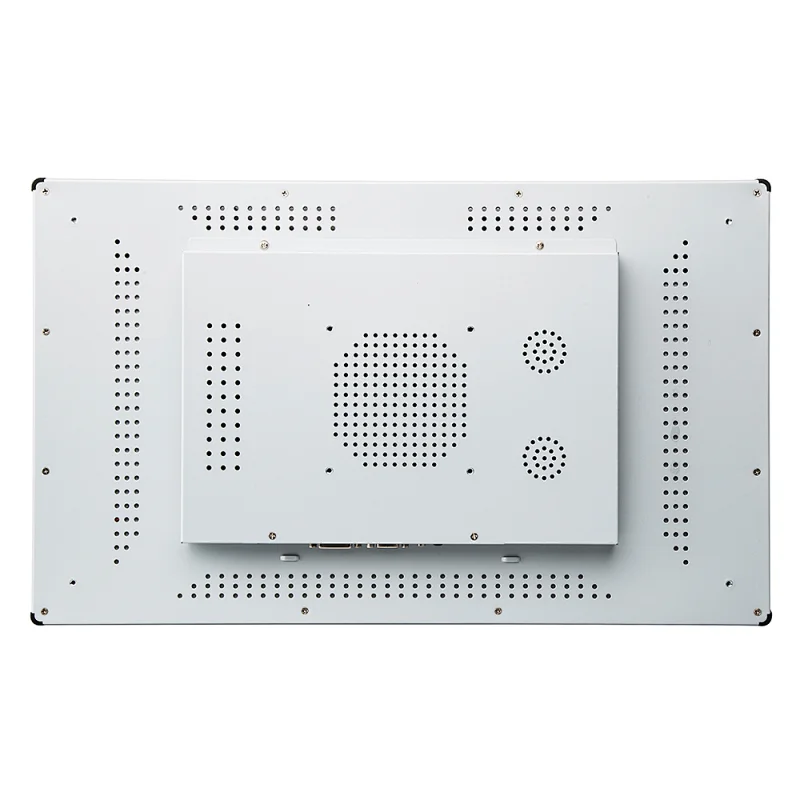

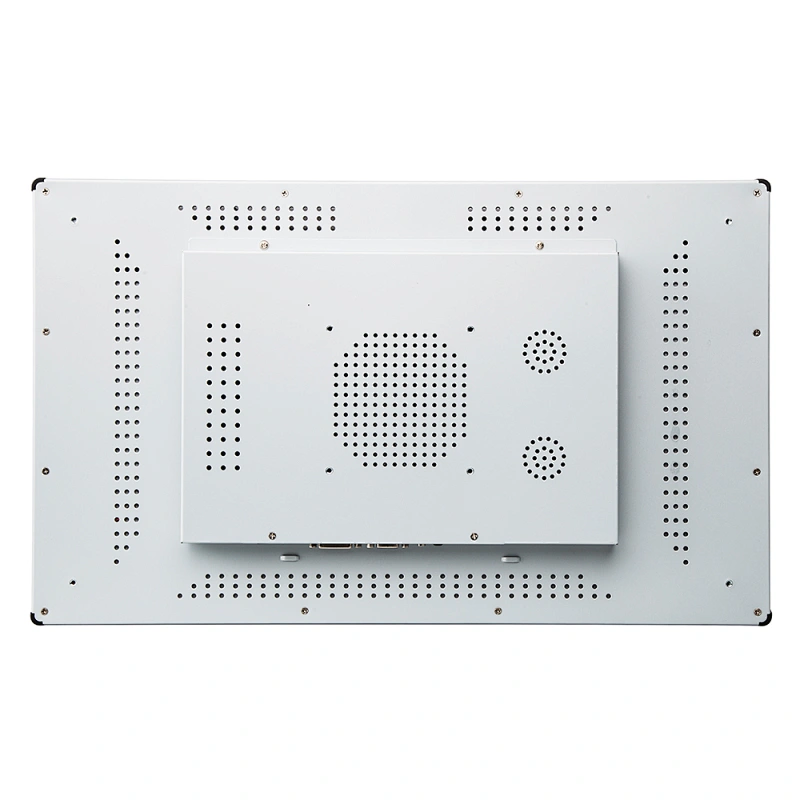

Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide Floor standing to support the PC
Certification
CE, FCC,ROHS
Warranty
1 year warranty
