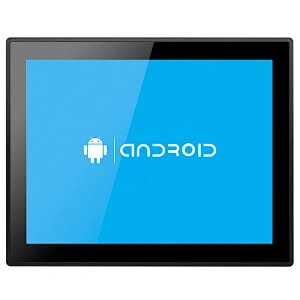

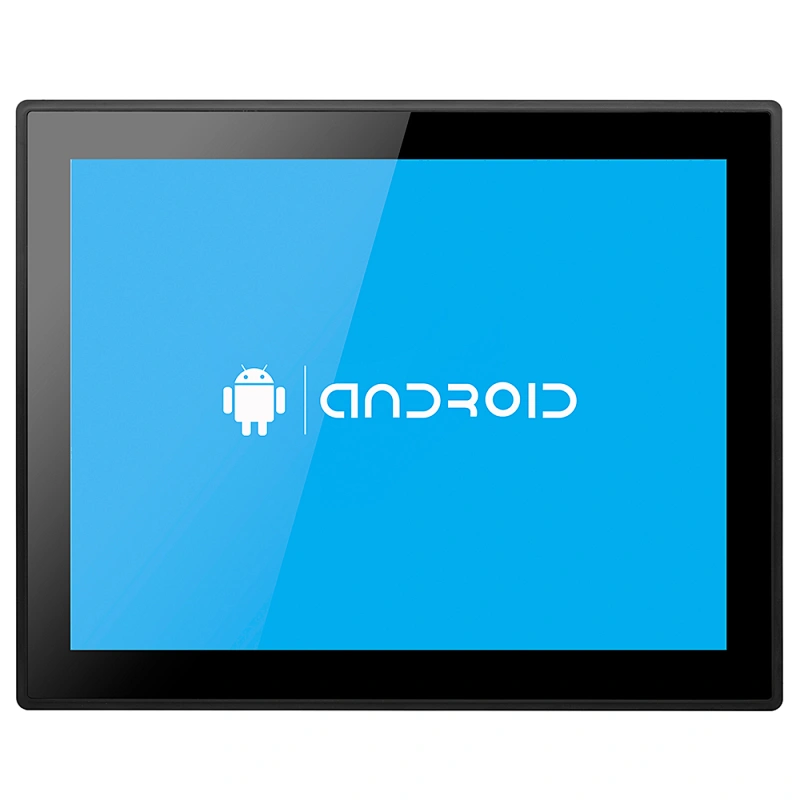

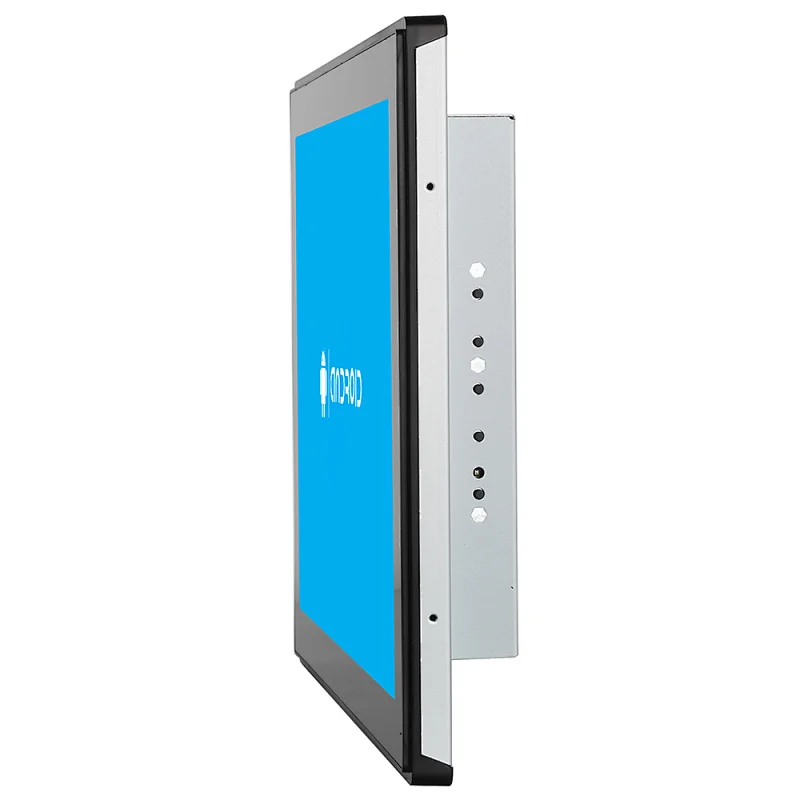

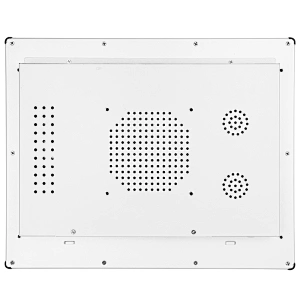

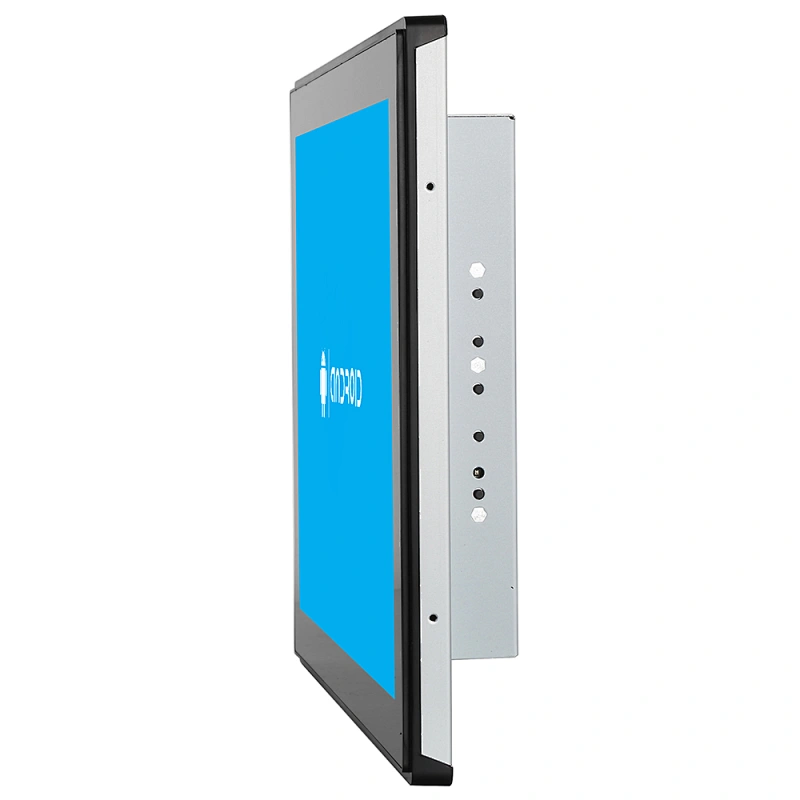

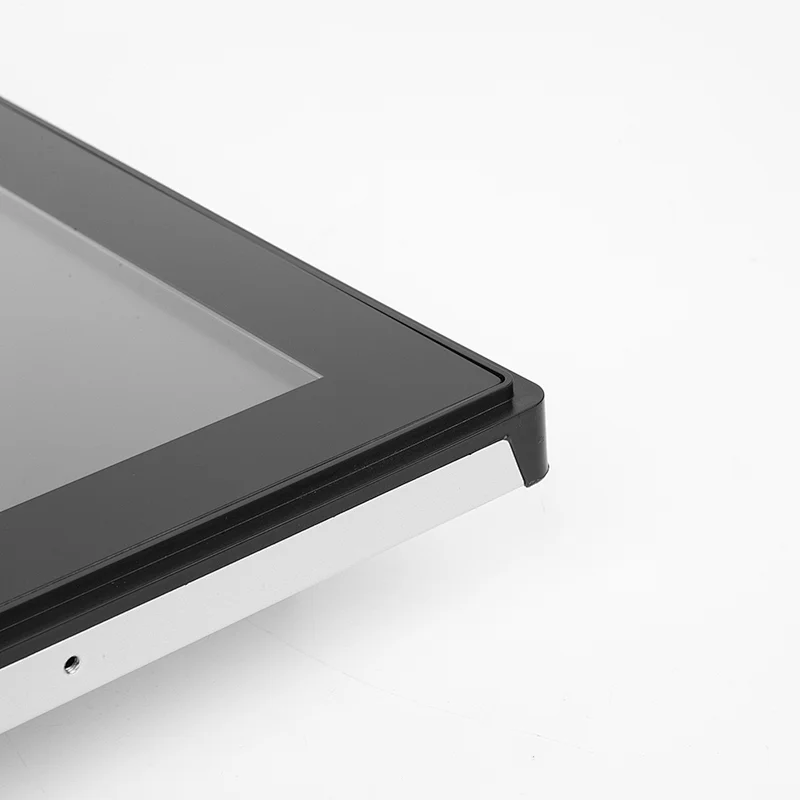

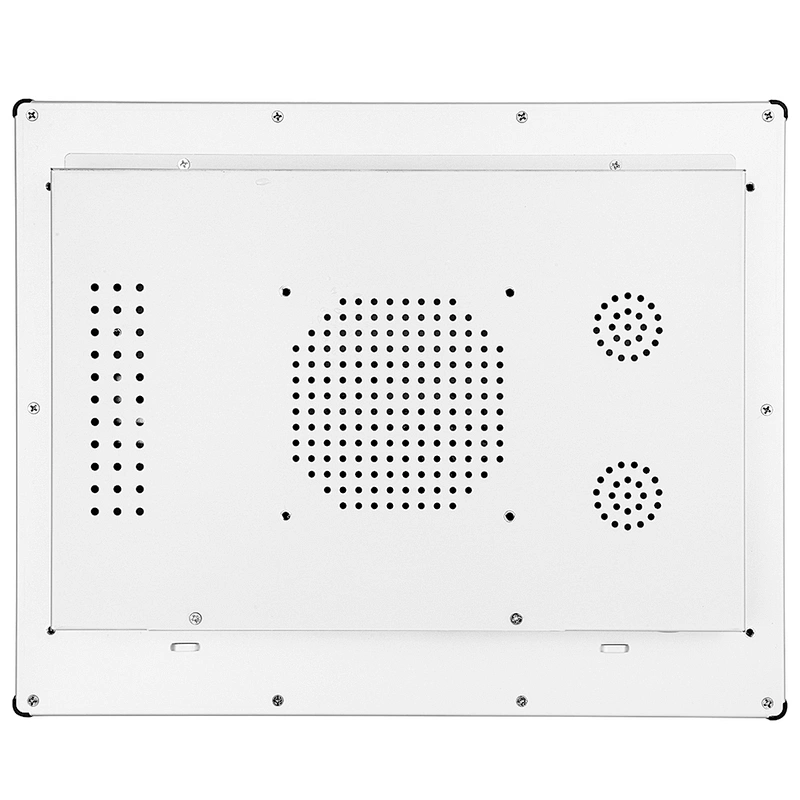

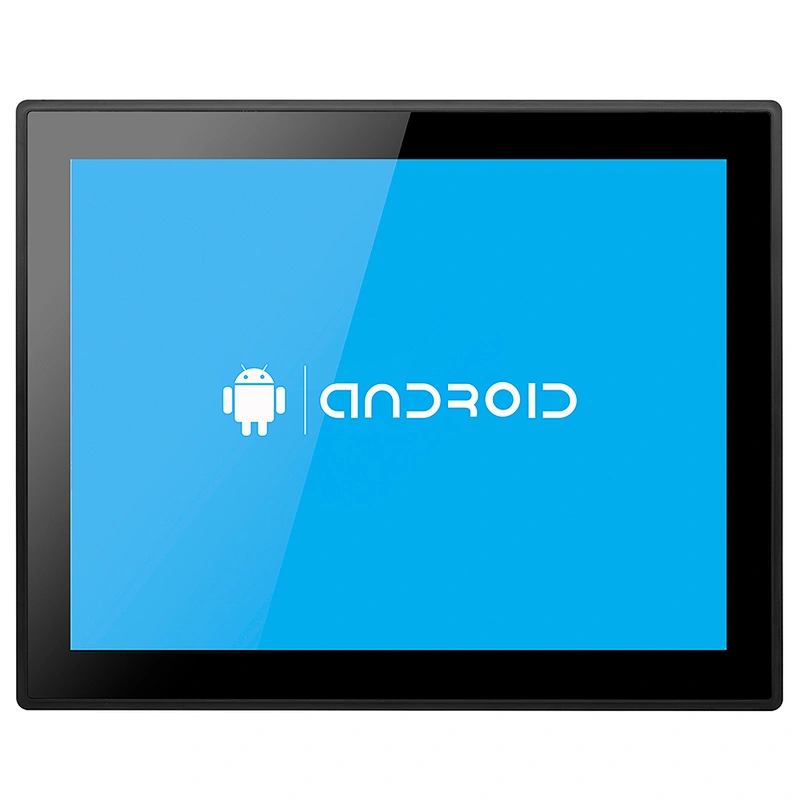

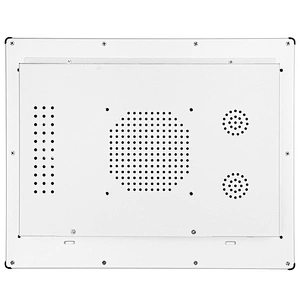

cheap factory 19 inch RK3288 android touch screen industrial pc all in one desktop computer touch tablet PC aluminum alloy PC
cheap factory 19 inch RK3288 android touch screen industrial pc all in one desktop computer touch tablet PC aluminum alloy PC
cheap factory 19 inch RK3288 android touch screen industrial pc all in one desktop computer touch tablet PC aluminum alloy PC
cheap factory 19 inch RK3288 android touch screen industrial pc all in one desktop computer touch tablet PC aluminum alloy PC
cheap factory 19 inch RK3288 android touch screen industrial pc all in one desktop computer touch tablet PC aluminum alloy PC

cheap factory 19 inch RK3288 android touch screen industrial pc all in one desktop computer touch tablet PC aluminum alloy PC

Model NO.:
YT19PC-WAC
Product Description

19 inch flat screen android RK3288/RK3399 all in one panel pc with front plastic case
19 inch flat screen android RK3288/RK3399 all in one panel pc with front plastic case
CPU
Onboard RK3288 28nm Quad core ARM Cortex A17 1.8 GHz
Memory
2GB DDR3
NAND FLASH
EMMC FLASH 16GB,24 bits ECC
GPU
Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K
input,4Kx4Koutput
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback
Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4

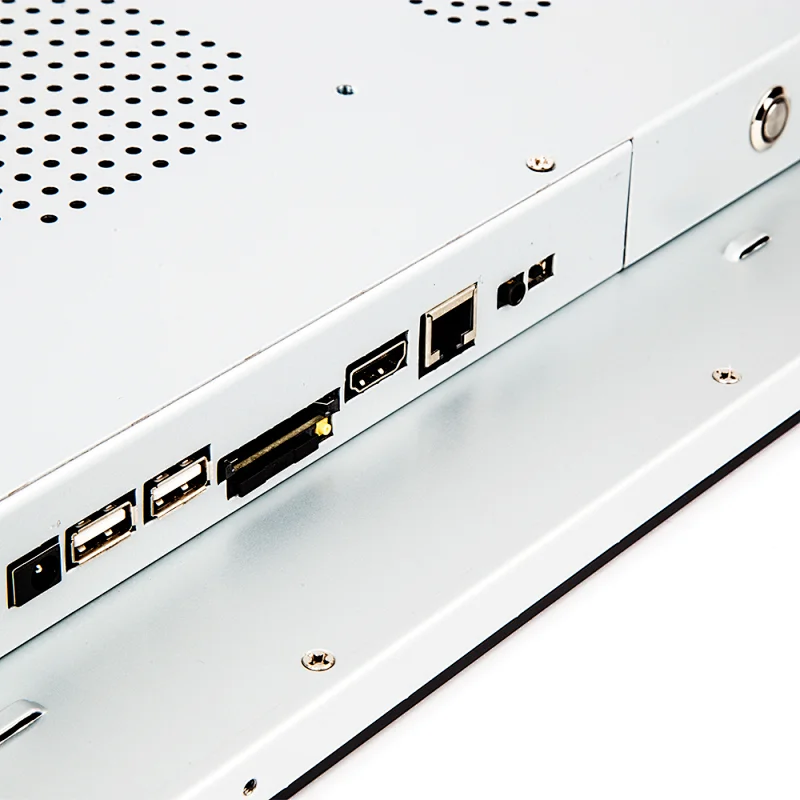

I/O Interface
USB3.0x2 ,Lan(RJ45)x1, SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI
Opetation System
Support above Android 4.4-7.1 operation system
Image Format
Support BMP、JPEG、PNG、GIF
Network support
3G/4G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion
LCD panel
Panel size
19"
Display ratio
4:3
Resolution
1280*1024
Brightness
300cd/m2
Response time
15ms
Contrast ratio
1000:1
View angle
85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type
10 points projective Capacitive touch optional
Touch Interface
USB
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, Wifi antenna
Other
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide Floor standing to support the PC
Certification
CE, FCC, RoHS
Warranty
1 year warranty
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
Certification
CE, FCC
Warranty
1 year warranty
Product Usage
Packing&Shipping
Company Introduction
Bestview is the manufacture specialized for industrial touchscreen monitor,
open frame/rack mount monitor, industrial AIO panel pc, IP65 waterproof monitor, Field/broadcast monitor

Our Services & Strength

1.Your any inquiry or question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize
your idea.
3.To be our agent or distributor is well welcomed.
4.You can find the right product you want,whatever the most competitive price or Highest quality!
FAQ
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
