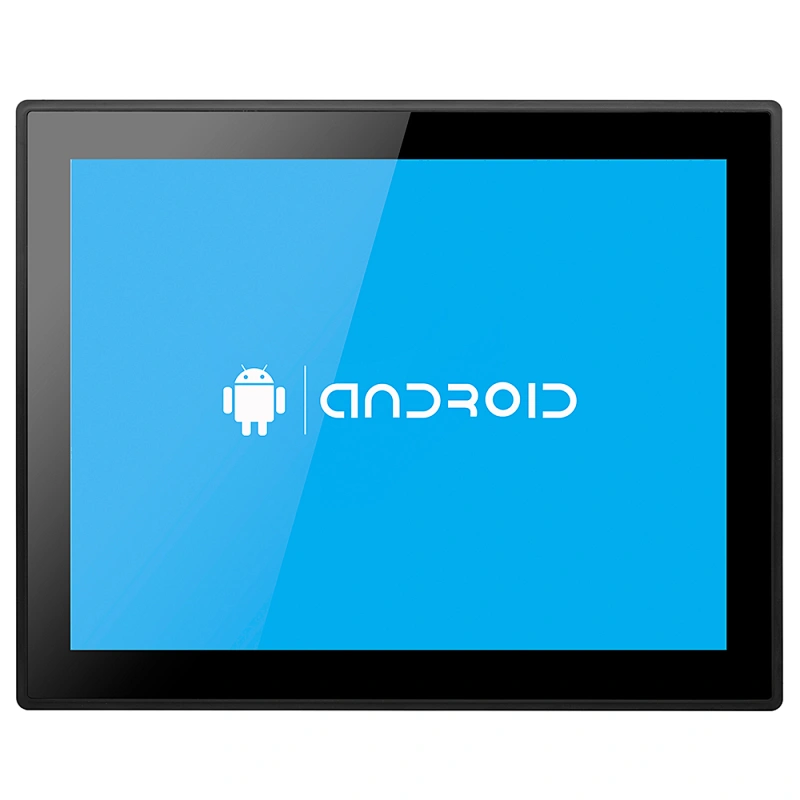

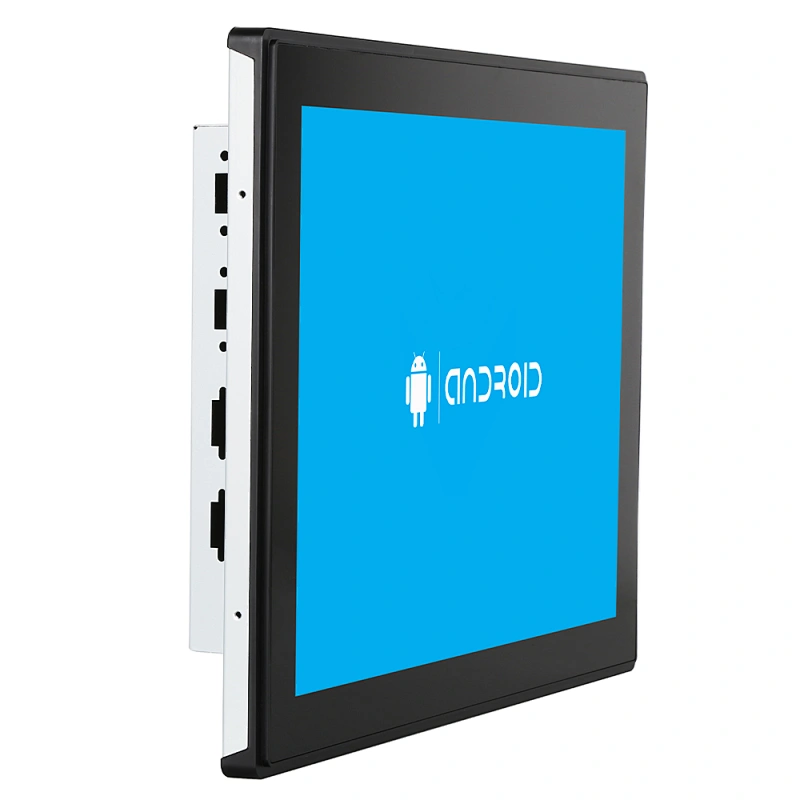

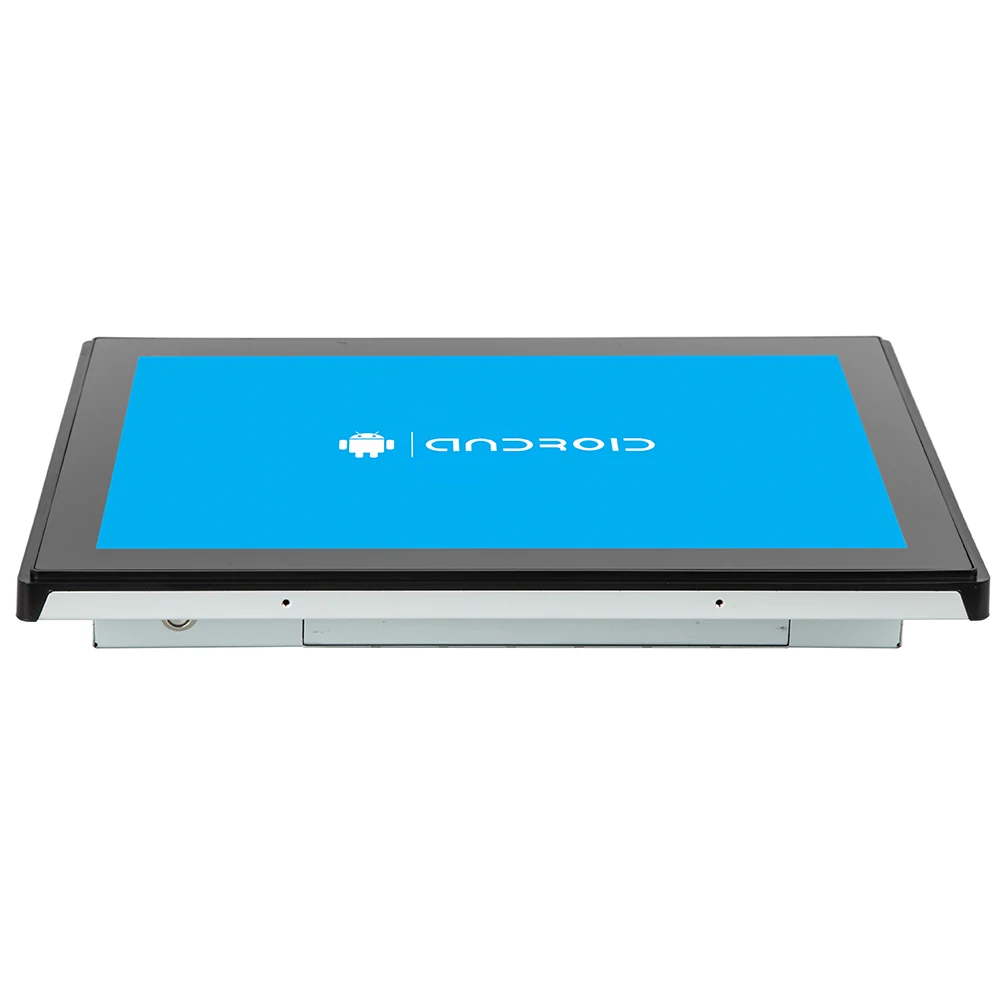

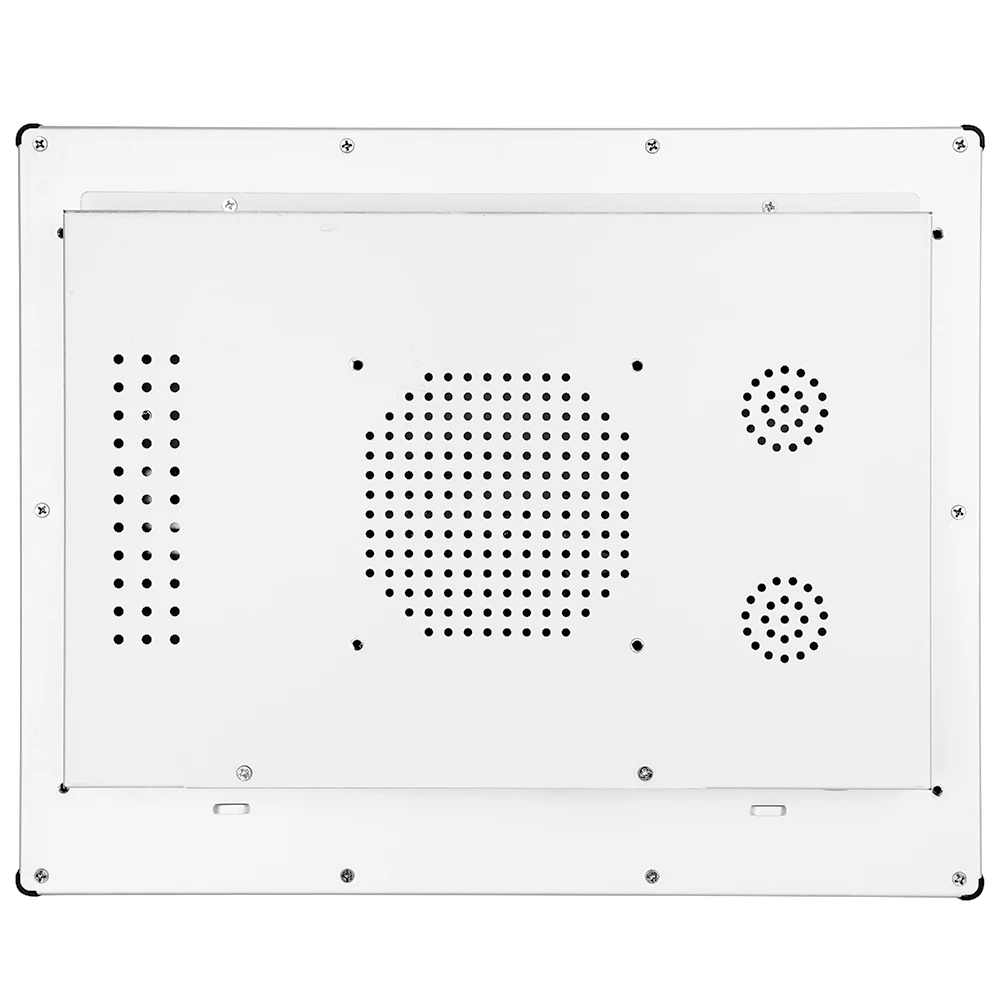

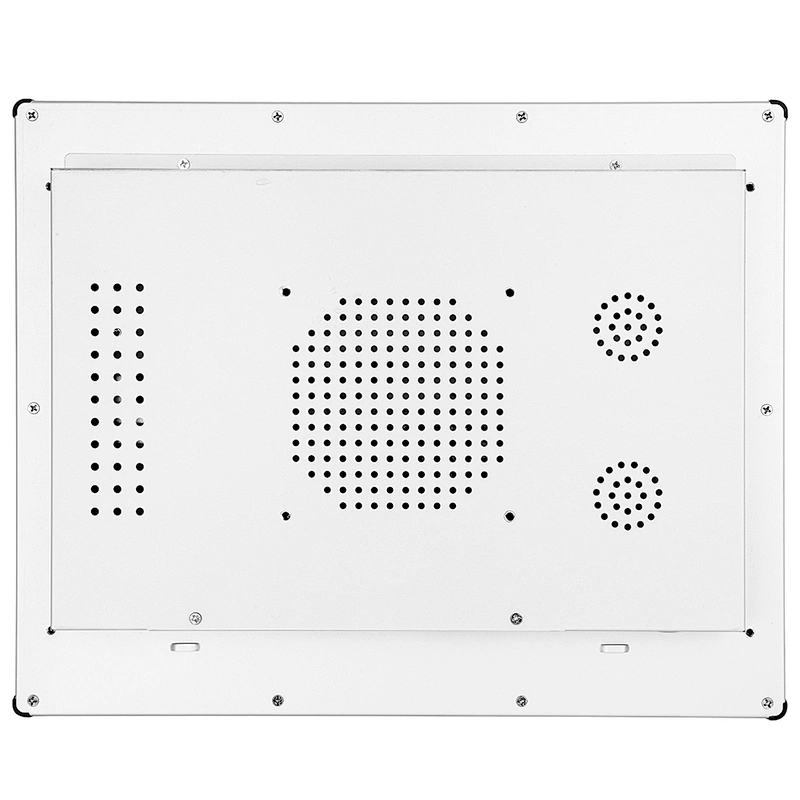

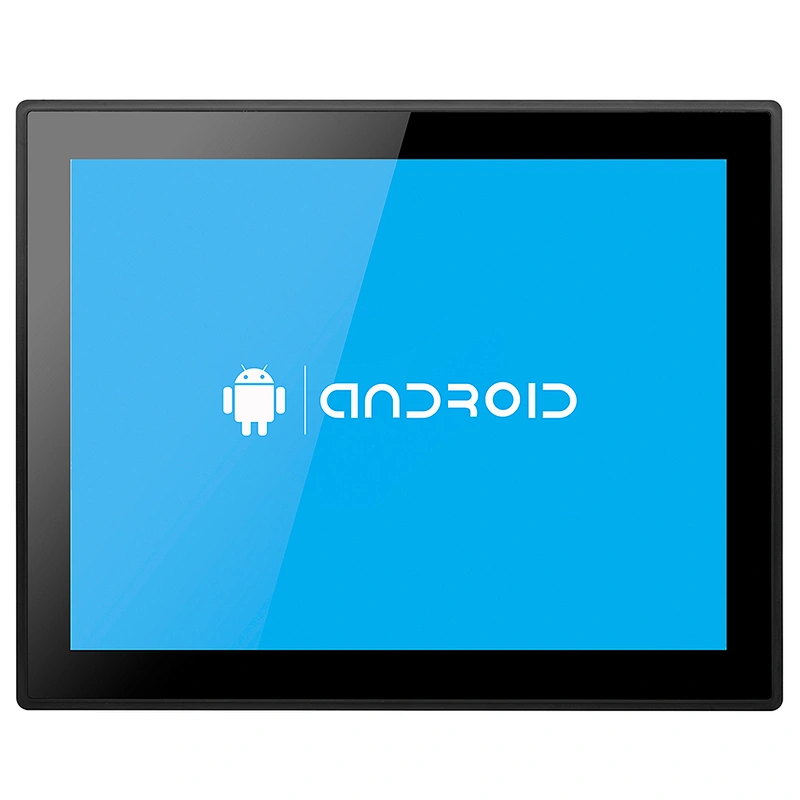

Bestview 10.1 inch Android rk3288 rk3399 mini tablet PC small android board computer

Bestview 10.1 inch Android rk3288 rk3399 mini tablet PC small android board computer

Model NO.:: YT101PC-WAC
Delivery:: FOB

Quantity:

Product Description

Product Description

LCD panel( IPS screen)
Bestview 10.1 inch Android rk3288 rk3399 mini tablet PC small android board computer
PC specification
CPU	RK3288 28nm Quad core ARM Cortex A17 1.8 GHz
Memory	2GB DDR3
Nand Flash	EMMC Flash 8GB,24 bit ECC
GPU	Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback	Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Image Format	Support BMP,JPEG,PNG,GIF
Network support	3G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion
Wireless Network	WIFI optional

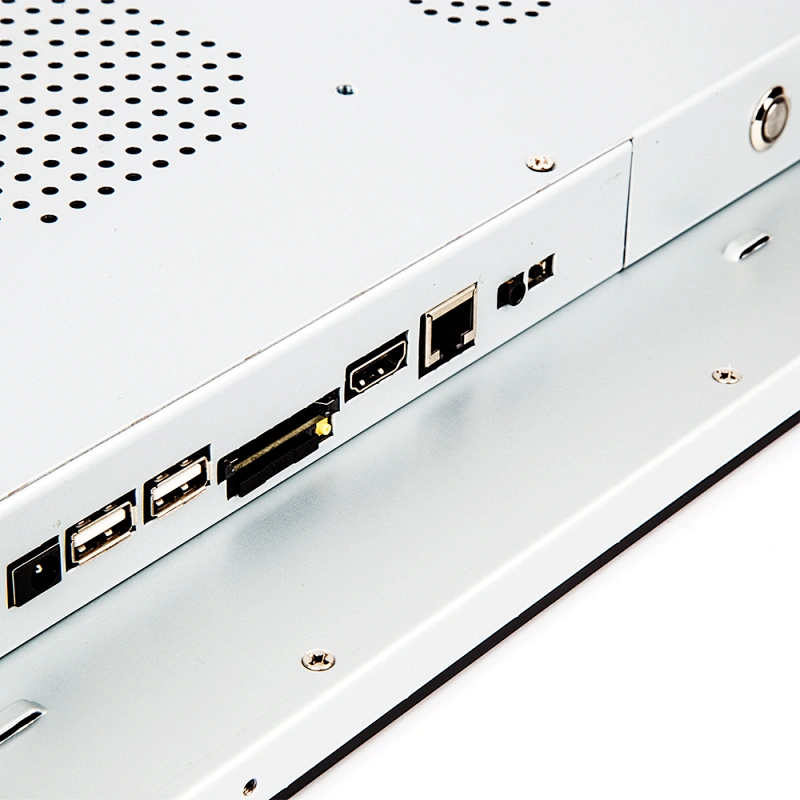

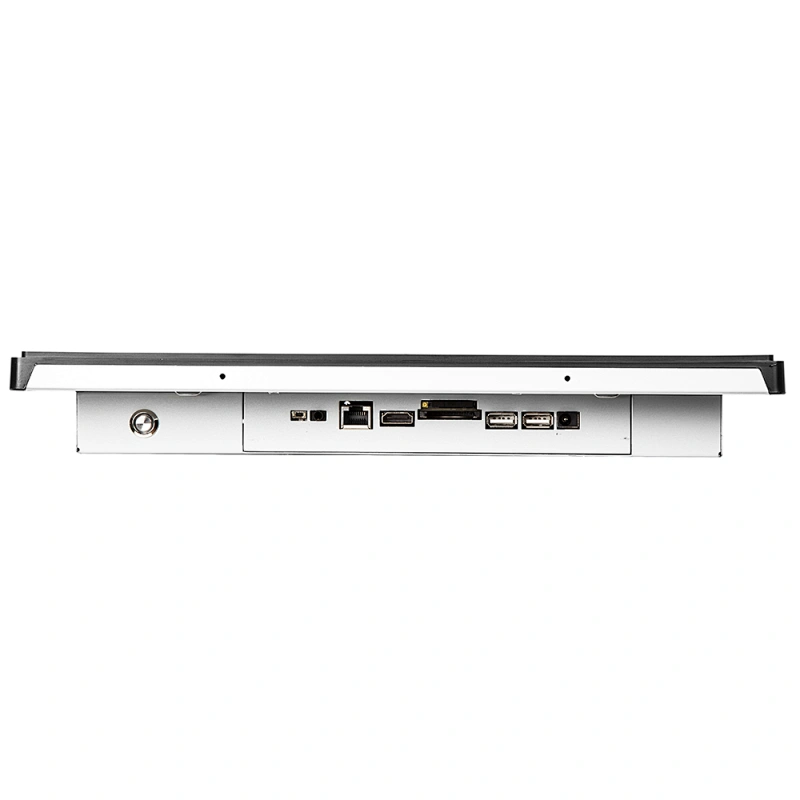

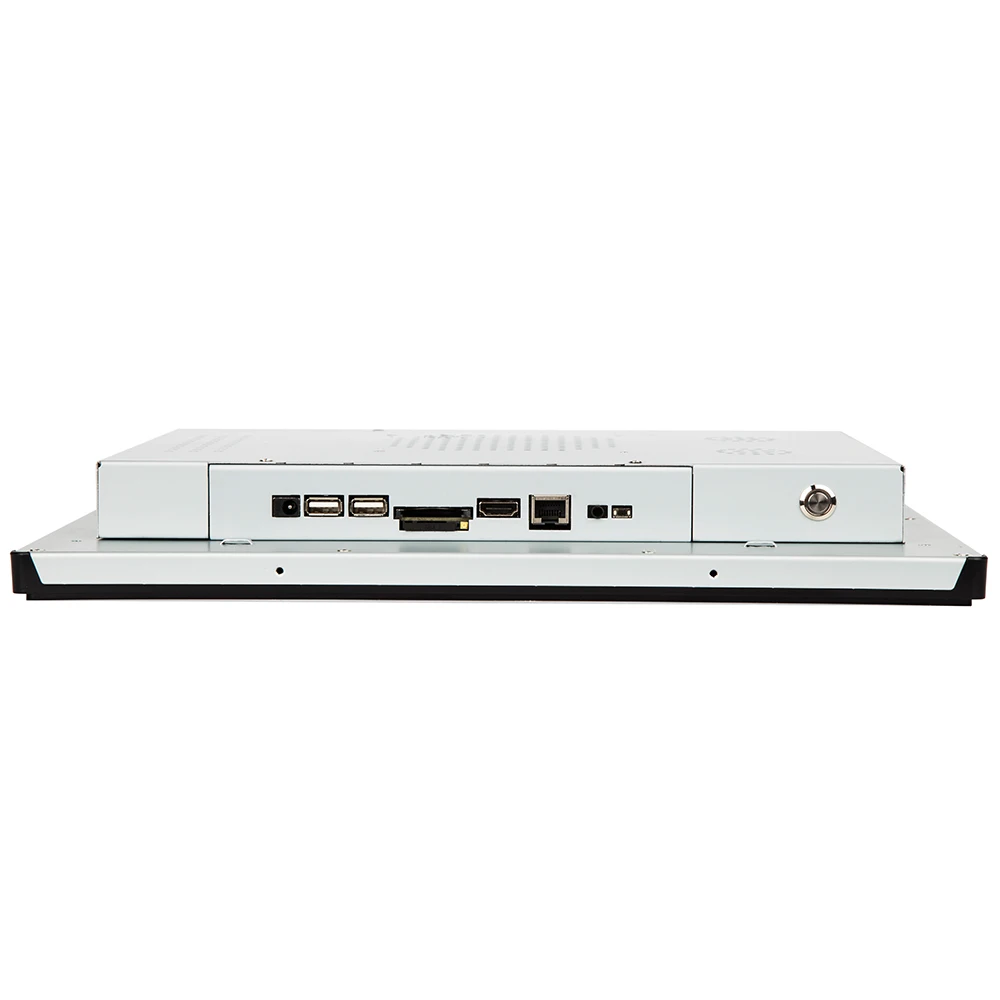

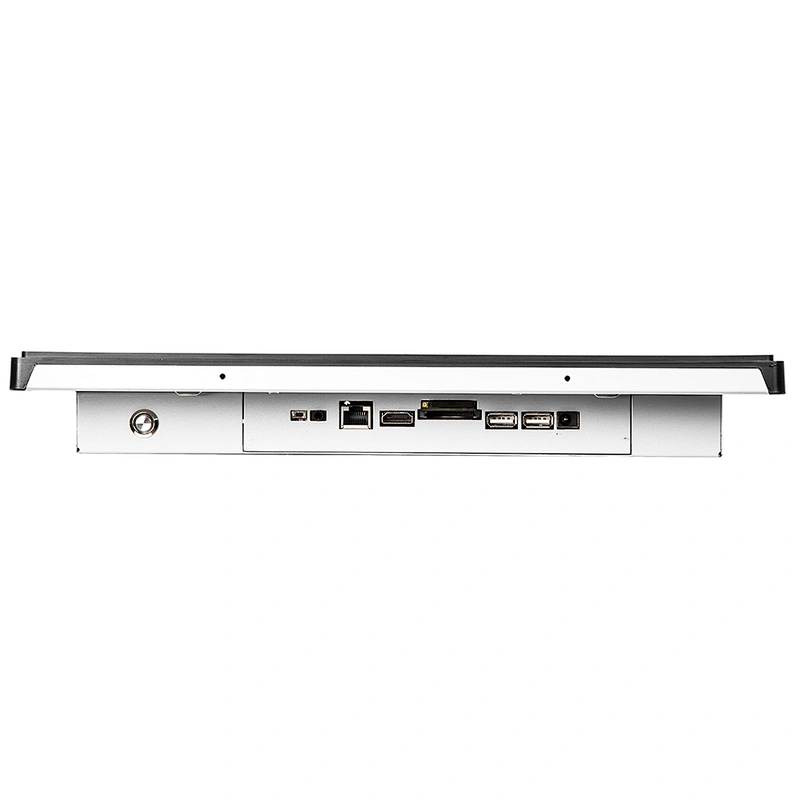

I/O Interface	USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Bluetooth
Opetation System	Support above Android 4.4-6.1 operation system
LCD panel
Panel size	10.1 inch
Resolution	1024x600
Brightness (cd/m²)	350 cd/m2
Response time	15ms
Contrast ratio	800:1
View angle	85°/85°/85°/85° (R/L/U/D)
Touch panel
Touch Type	10 points projective Capacitive touch
Touch Interface	USB
Response time	<8ms
Transmittance	75-85%
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤18W
Operating Environment
Temperature range	operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories	Power adapter, Wifi antenna
Other

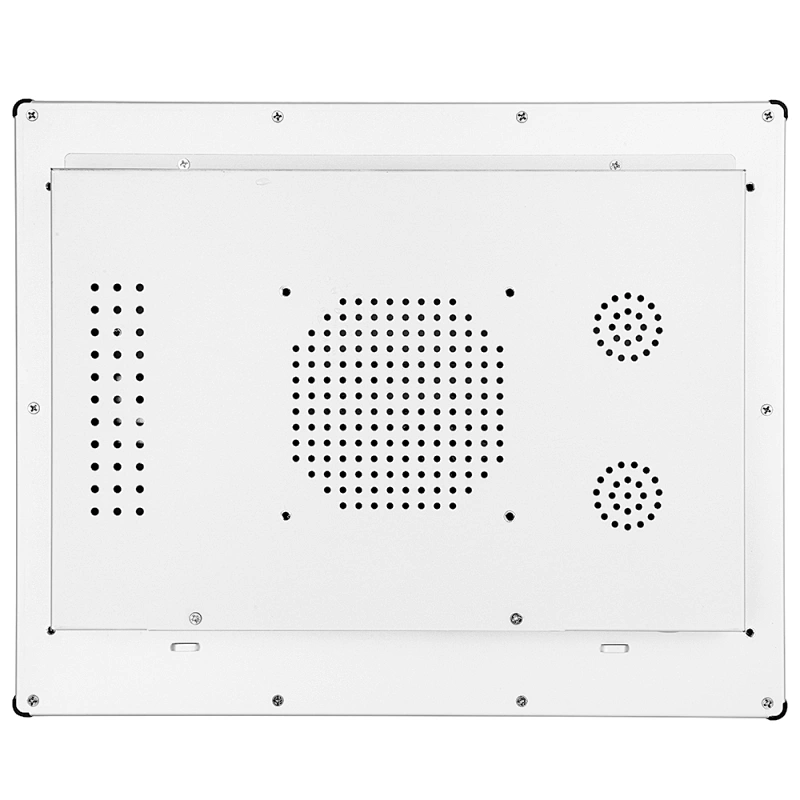

Mounting (options)	1) provide wall brackets for wall-mounting, VESA 100×100mm
Mounting (options)		2) provide Floor standing to support the PC
Certification	CE, FCC,ROHS
Warranty	1 year warranty

Product Usage

Company Profile

Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch
monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got
certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.

Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian
World Studios etc.

Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D
experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product
has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.

Packing&Shipping

FAQ

1. How to pay? For bulk order, it is better to pay by TT(HSBC), to save your banking charges. For sample and small order, Paypal and Western Union are acceptable. 2. When can you get it? For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days. OEM or ODM order, the lead time is negotiated. 3. How to get? All items can be shipped by DHL, UPS, FedEx, EMS, BY AIR, BY SEA and so on ACCORDINGLY.
