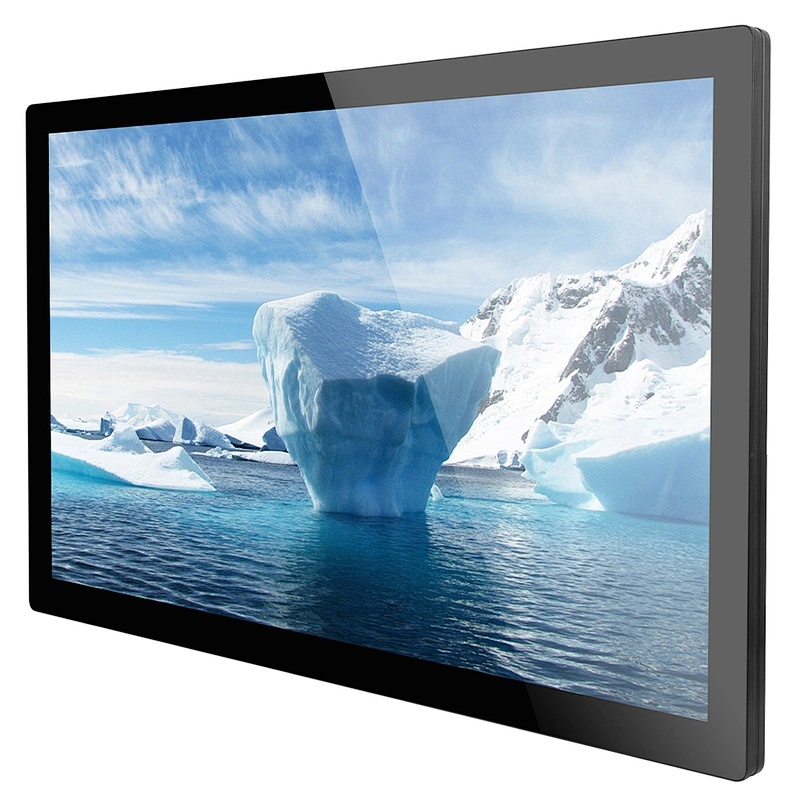

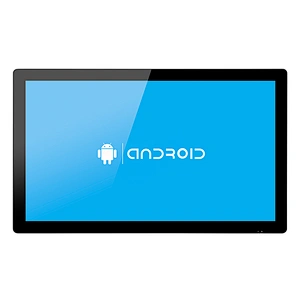

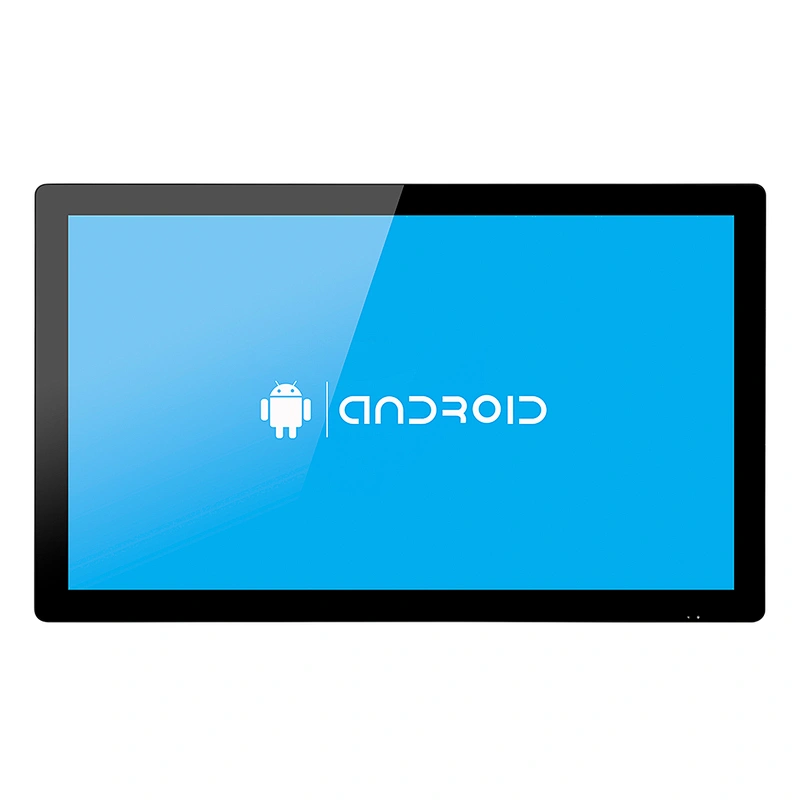

China Manufacturer 65" inch Android touch screen panel PC self-service PC

Model NO.:
YT65PC-ACW

Applications:

·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.

·Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

·Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

·Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

·Non-profit Organizations: Telecommunications, post offices, hospital, schools;

·Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

Detailed Images


Product Description

Name

Bestview 65 inch self-service kiosk Android PC monitor

Model No.

YT65PC-ACW

PC specification

Memory

2G DDR3

CPU

RK3288 28nm Quad core ARM Cortex A17 1.8 GHz

Nand Flash

EMMC Flash 8GB,24 bit ECC

GPU

Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput

Graphics

CPU Integrated graphics card and support 1080p HD photo

Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

Video playback

Support wmv,avi,flv,rm,rmvb,mpeg,ts,mp4

Image Format

Support BMP,JPEG,PNG,GIF

Network Support

3G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion

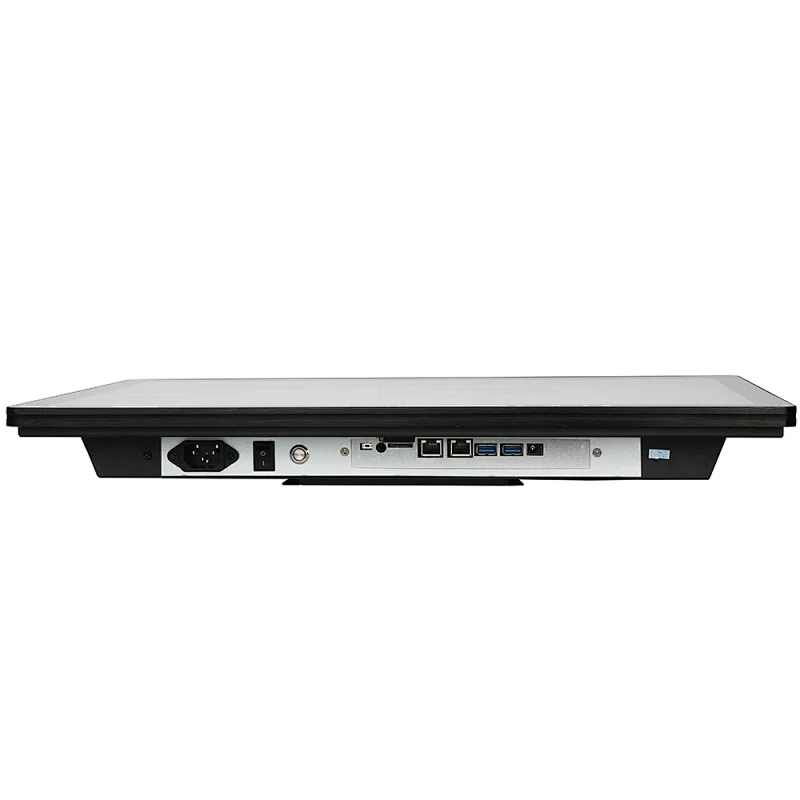

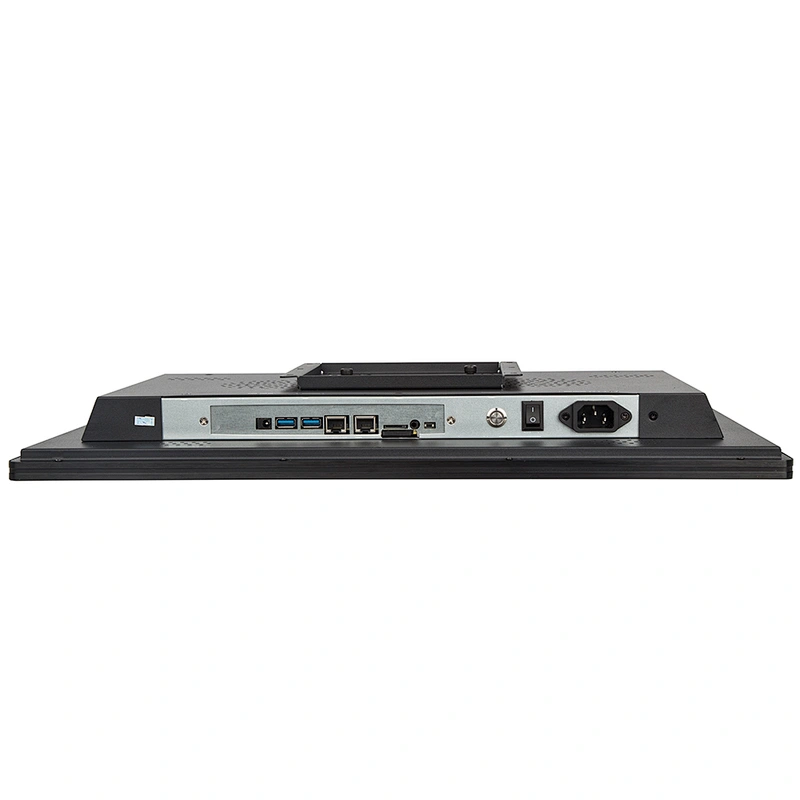

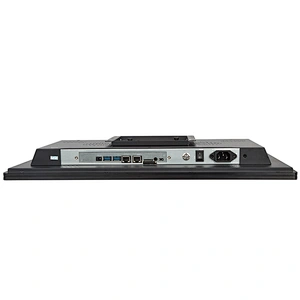

I/OInterface

USB,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Bluetooth

Power supply

DC 12 V input

Opetation System

Support above Android 4.4-6.1 operation system

Panel specification

Panel size

65"Widescreen(16:9)

Touch type

10 points projective capacitive touch

HighResolution

1920× 1080

Display ratio

16:9

Brightness

300cd/m2(Typ)

Contrast

5000:1

Viewing Angle

89°/89°/89°/89° (R/L/U/D)

Surface hardness

3H

Transmittance

≥80%

Sensitive

< 10ms

LCD color

16.7M colors

Life time

Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Watchdog

upport system reset grade 0~255

Casematerial

Aluminum Alloy front case, Metal back case , shockproof , anti-interference

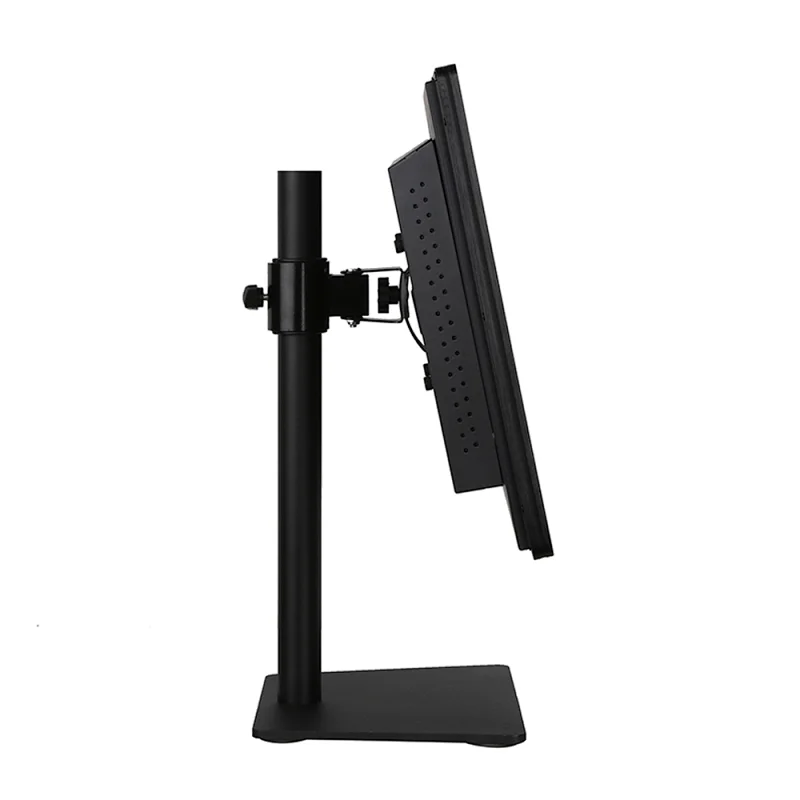

Installation ways

Rackmount , Embedded , wall mount ,VESA bracket

Mounting

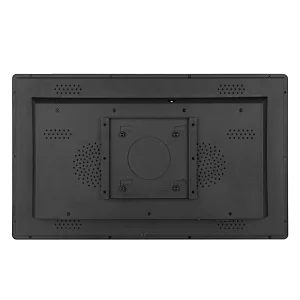

100*100 VESA on the back

Power supply

AC 220V input

panel pc-4

Company Information

ShenzhenBESTVIEW Electronic Co., Ltd. founded in 2003 Shenzhen China,One of the earliest supplier dealwith various size LCD monitors(Touch &Non-touch),Touch Panel PC and Broadcasting Field monitor.With its own professionalR&Dandproduction Team,regular come out 3-4 New products per year.

QUALITY is one of the Key factors for BESTVIEWs sustainable business success-we will focus on continuous improvement and development of our quality system. Quality certificate includingISO9001-2008 Quality Management System,CE,ROHS,FCC and KCC.

BESTVIEW Sales Team takes part in theExhibition every yearheld in HongKong,Netherlands,USA and Germany to meet the NEW and OLD clients from all over the world.

packing.jpgFAIR SHOW.jpg-2.jpg

Certifications

.jpg

FAQ

1.How to pay ?

For bulk order it is better to pay by TT(HSBC),to save your banking charges.

For sample and small order, Paypal and Western Union are acceptable.

2.When can get?

For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.

OEM or ODM order,the lead time is negotiated.

3.How to get?

All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.

Our services

1.Youranyinquiryor question will be replied within 24hrs.

2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.

3.To be our agent or distributor is well welcomed.

4.You can find the right product you want,whatever the most competitive price or Highest quality!
