Product Description

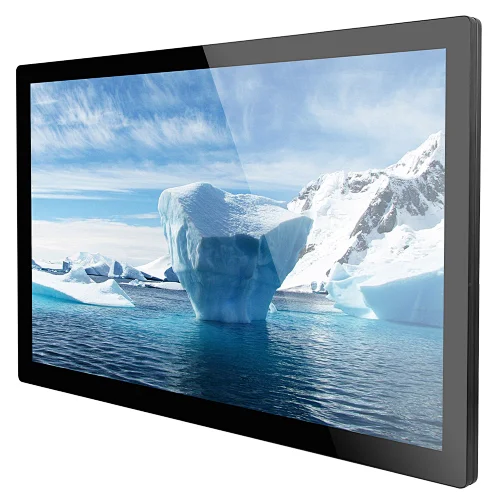

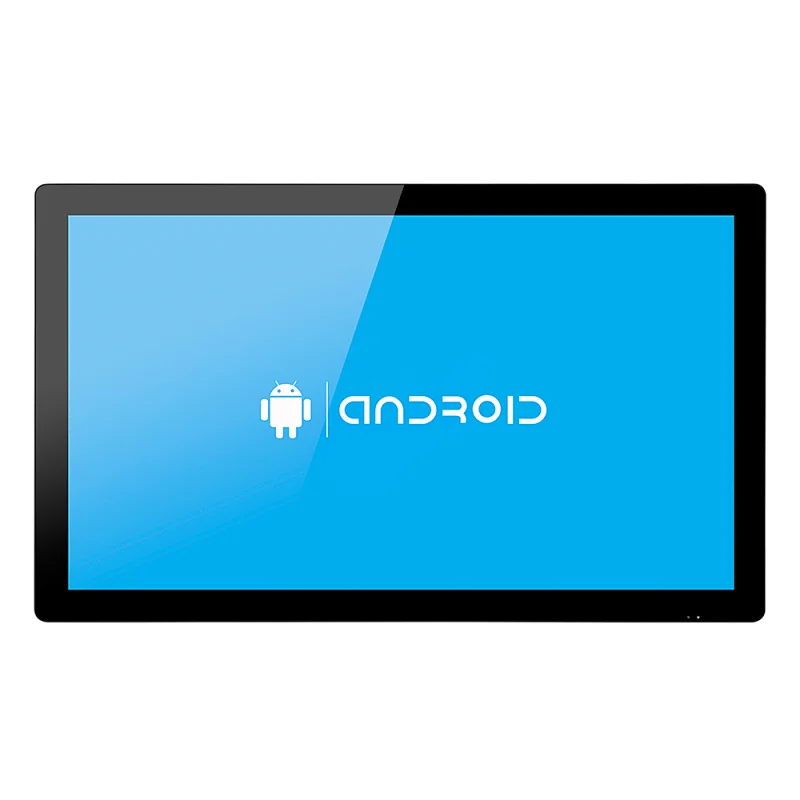

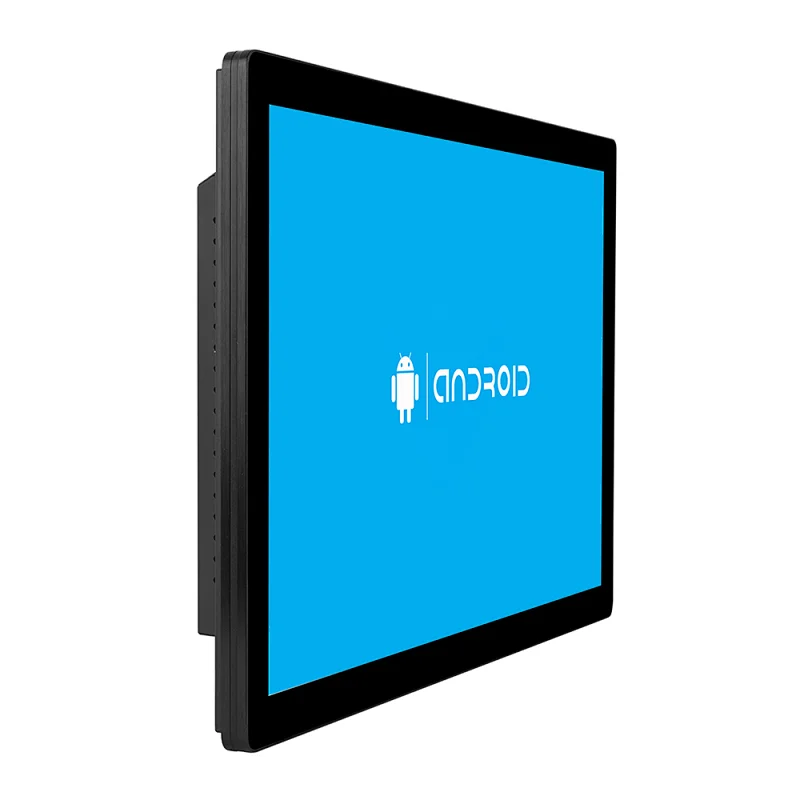

23.6 inch flat screen android RK3288/RK3399 all in one panel pc with aluminium front case
23.6 inch flat screen android RK3288/RK3399 all in one panel pc | |||
CPU | Onboard RK3288 28nm Quad core ARM Cortex A17 1.8 GHz | ||
Memory | 2GB DDR3 | ||
NAND FLASH | EMMC FLASH 16GB,24 bits ECC | ||
GPU | Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input，4Kx4Koutput | ||
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | ||
Video playback | Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 | ||

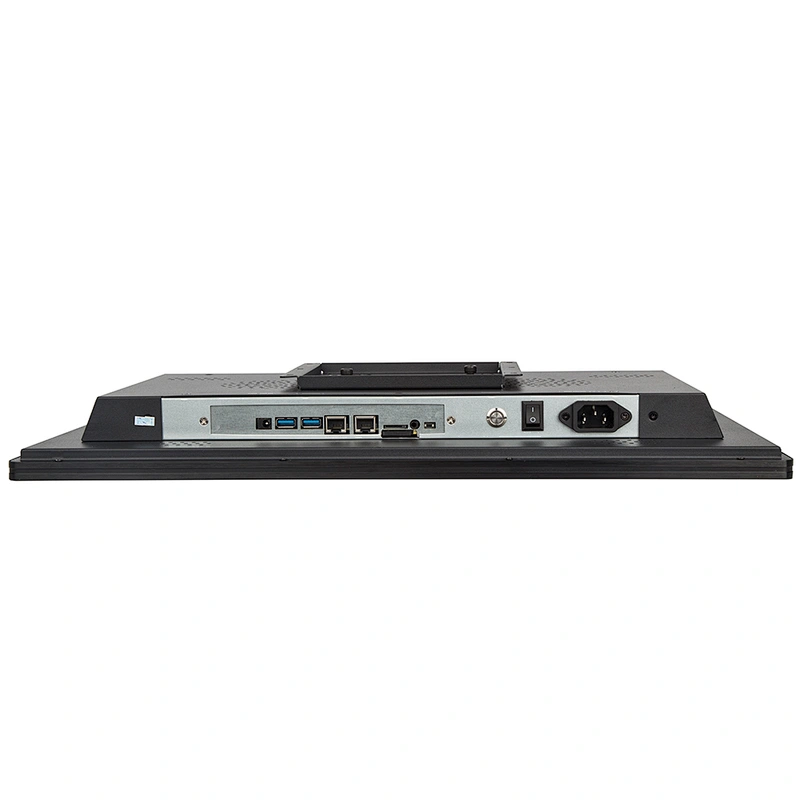

I/O Interface | USB3.0x2 ,Lan(RJ45)x1, SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI | ||
Opetation System | Support above Android 4.4-7.1 operation system | ||
Image Format | Support BMP、JPEG、PNG、GIF | ||
Network support | 3G/4G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion | ||
LCD panel | |||
Panel size | 23.6" | ||
Display ratio | 16:9 | ||
Resolution | 1920*1080 | ||
Brightness | 300cd/m2 | ||
Response time | 15ms | ||
Contrast ratio | 1000:1 | ||
View angle | 89°/89°/89°/89° (R/L/U/D) | ||
Touch panel | |||
Touchscreen Type | 10 points projective Capacitive touch optional | ||
Touch Interface | USB | ||
Touch response time | <8ms | ||
Luminousness | 75-85% | ||
Power Supply | |||
External Power Supply | AC 100 - 240V | ||
Working voltage | DC 12V | ||
Power consumption | ≤18W | ||
Operating Environment | |||
Temperature range | operating: -10 to 60°C, storage :-20 to 70°C | ||
Relative humidity | 5%~95% @ 40° C, non-condensing | ||
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||
Packing Details | |||
Accessories | Power adapter, Wifi antenna | ||
Other | |||

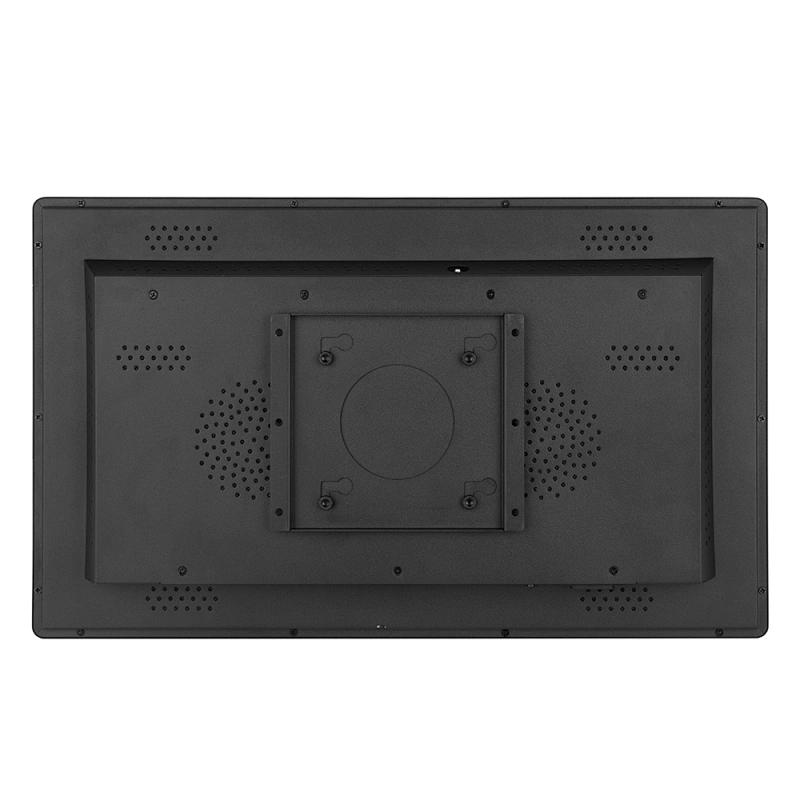

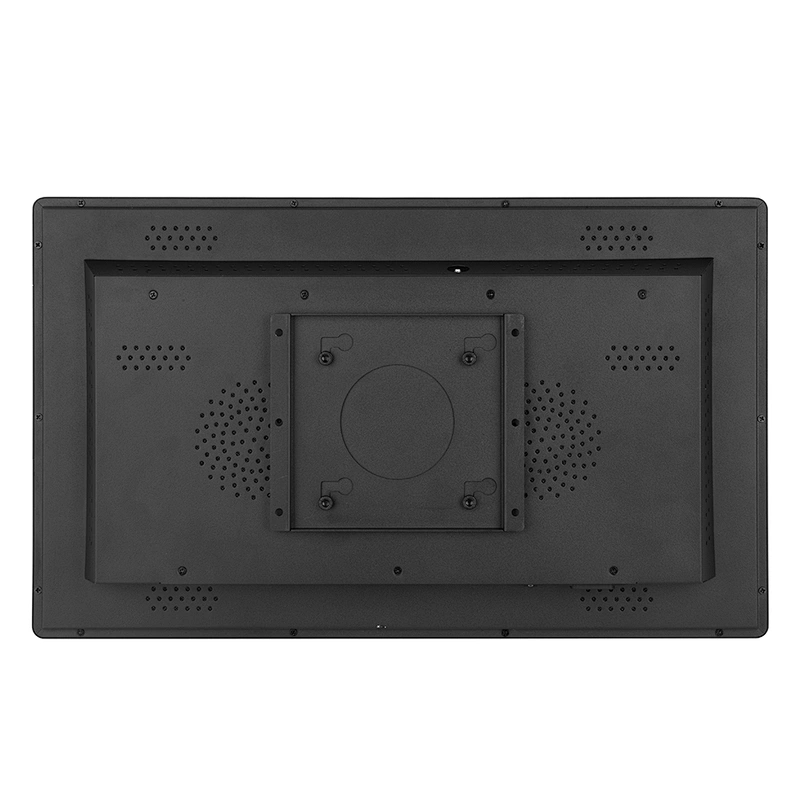

Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm | ||
2) provide Floor standing to support the PC | |||
Certification | CE, FCC, RoHS | ||
Warranty | 1 year warranty | ||
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm | ||
Certification | CE, FCC | ||
Warranty | 1 year warranty | ||
