China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk
China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk
China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk
China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk
China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk
China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk

China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk

Model NO.:
YT27PC-ACW
Product Description
Product Description
LCD panel( IPS screen)
China Manufacturer RK3288 RK3399 android panel PC 27 inch touch screen android tablet pc for self-service kiosk
PC specification
CPU
RK3288 28nm Quad core ARM Cortex A17 1.8 GHz
Memory
2GB DDR3
Nand Flash
EMMC Flash 8GB,24 bit ECC
GPU
Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback
Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Image Format
Support BMP,JPEG,PNG,GIF
Network support
3G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion
Wireless Network
WIFI optional

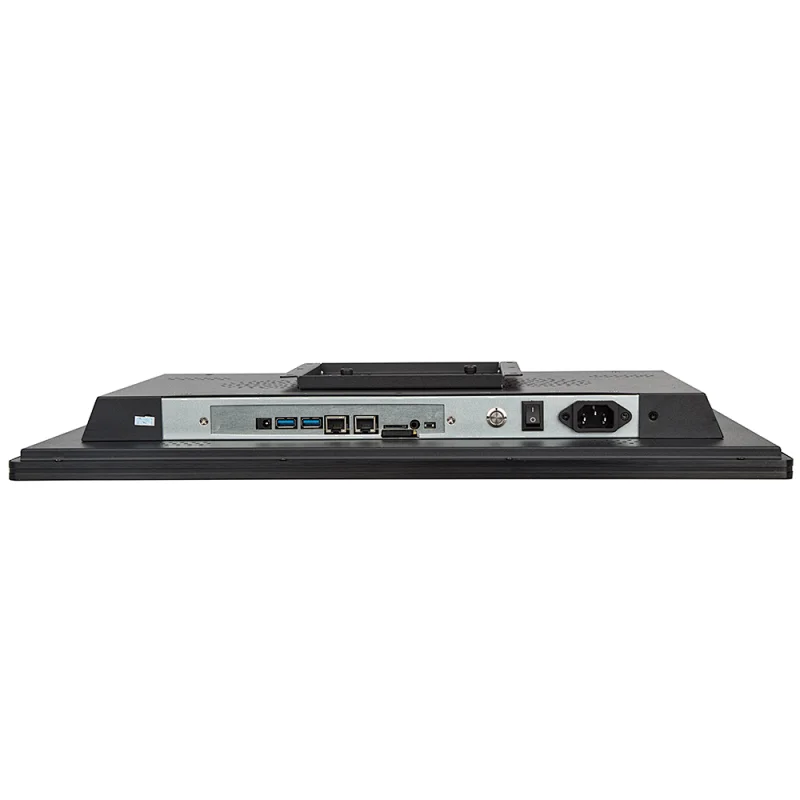

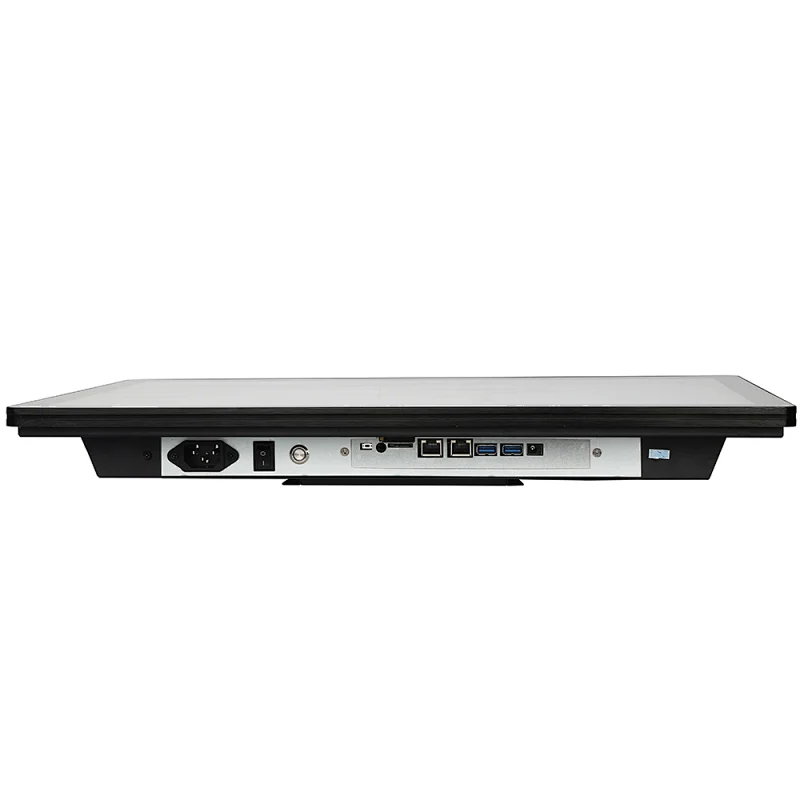

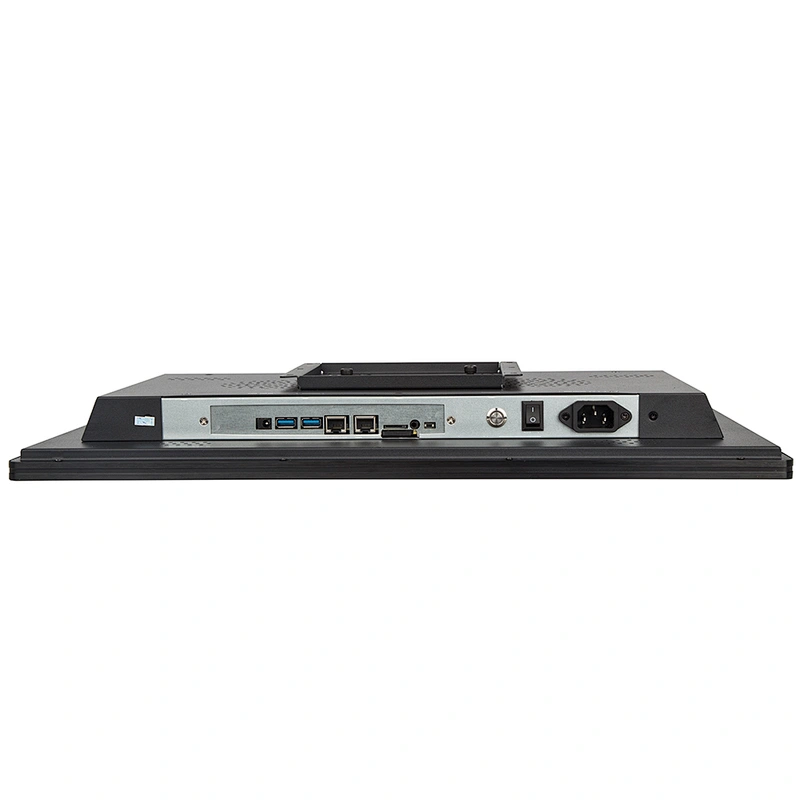

I/O Interface
USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Bluetooth
Opetation System
Support above Android 4.4-6.1 operation system
LCD panel
Panel size
27 Inch
Resolution
1920x1080
Brightness (cd/m²)
250 cd/m2
Response time
15ms
Contrast ratio
3000:1
View angle
89°/89°/89°/89° (R/L/U/D)
Touch panel
Touch Type
10 points projective Capacitive touch
Touch Interface
USB
Response time
<8ms
Transmittance
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, Wifi antenna
Other
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide Floor standing to support the PC
Certification
CE, FCC,ROHS
Warranty
1 year warranty
Product Usage
Packing&Shipping
Company Introduction
Bestview is the manufacture specialized for industrial touchscreen monitor, open frame/rack mount monitor, industrial AIO panel pc, IP65 waterproof monitor, Field/broadcast monitor.

Our Services & Strength

1. Any inquiry or question will be replied within 24hrs. 2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have a professional engineer team to realize your idea. 3. To be our agent or distributor is well welcomed. 4. You can find the right product you want, whatever the most competitive price or Highest quality!
FAQ
1. How to pay? For bulk order, it is better to pay by TT(HSBC), to save your banking charges. For sample and small order, Paypal and Western Union are acceptable. 2. When can you get it? For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days. OEM or ODM order, the lead time is negotiated. 3. How to get? All items can be shipped by DHL, UPS, FedEx, EMS, BY AIR, BY SEA and so on ACCORDINGLY.
