Applications:
· Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.



PC |
CPU Standard | Intel® Core I3-7100U dual core four thread, 2.4G; |
CPU Optional | Inter® Core I5-7200U dual-core four-thread 2.5G, up to 3.1G; |
Inter® Core I5-7200U dual-core four-thread 2.7G, up to 3.5G; |
Chipset | Integrated intel Soc chipset |
Memory | 4GB DDR3, ( Max. 16GB) |
Hard Drive Capacity | 64GB SSD |
Hard Drive Optional | SSD: 128GB, 256GB |
HDD: 320GB,500GB,1TB |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
Expansion | 2* Mini-PCIE expansion slot, support WIFI/3G/4G/MSTA/GPS |

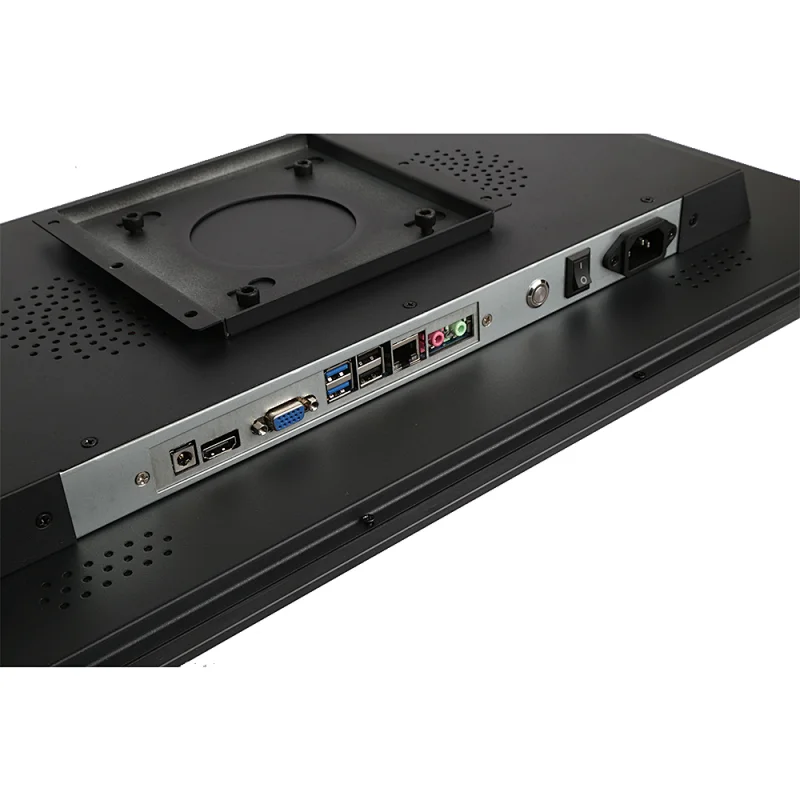

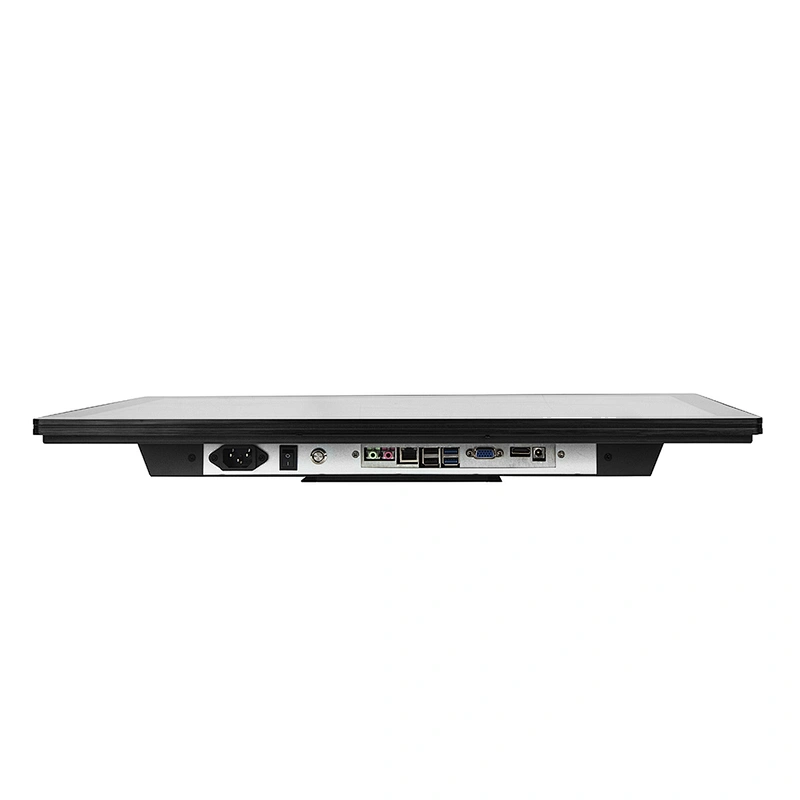

I/O Interface | RS232x2 |
USBx4 (USB2.0x2,USB3.0x2) |
HDMIx1 |
VGAx1 |
LANx1 |
EARx1 |
MICx1 |
Power DCx1 |
I/O expansion | 4*USB3.0, 6*USB2.0, 6*RS232 COM, 1*RS485.Support COM port 5V/12V power. |
Output | HDMI output, support 4K Display |
Opetation System | Preinstall test version Windows 7/8/10(with license optional),Linux,Ubuntu |
LCD panel |

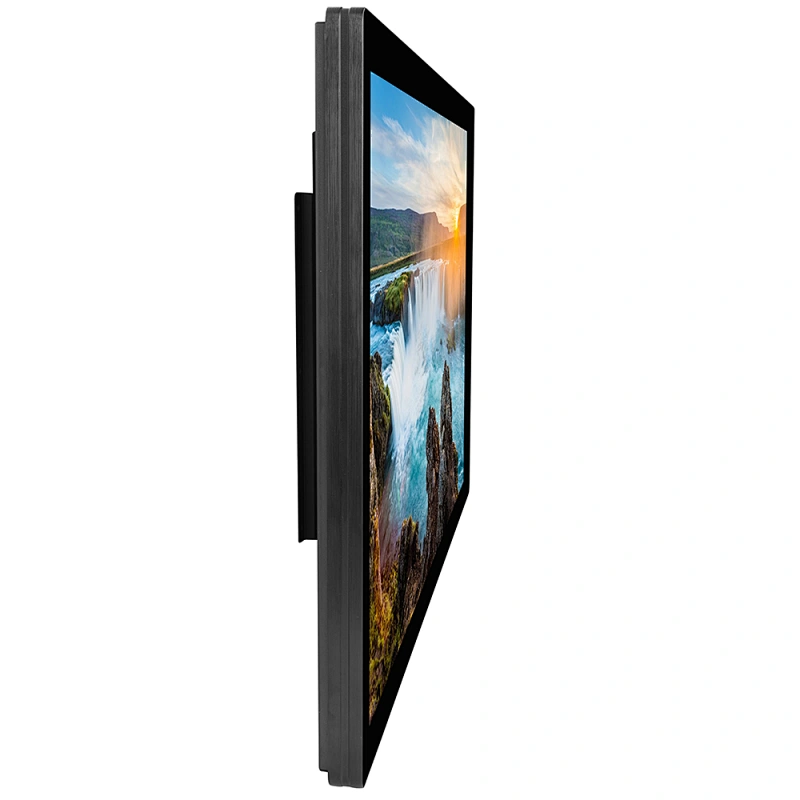

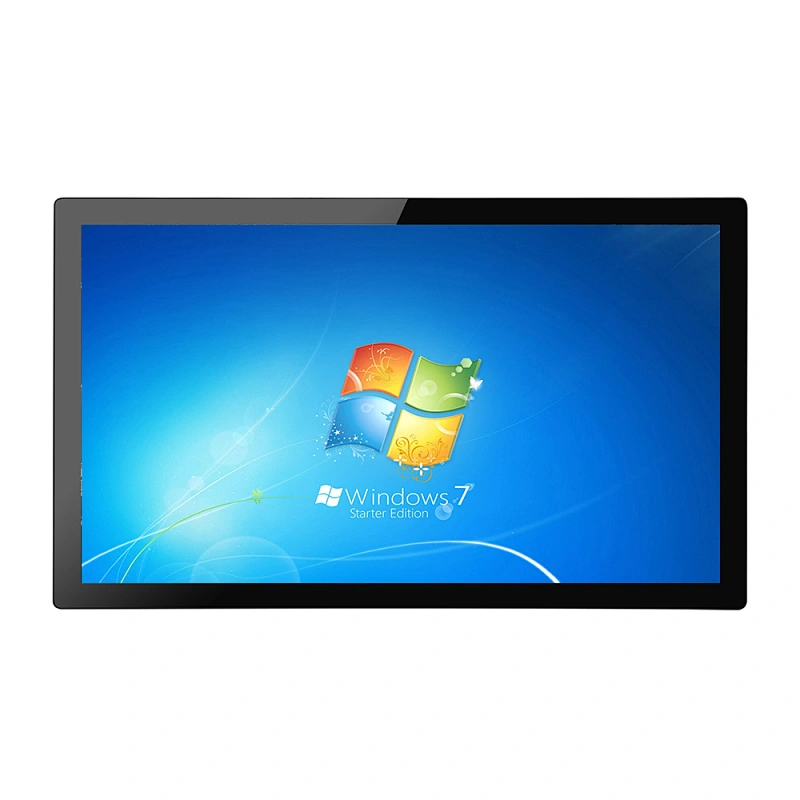

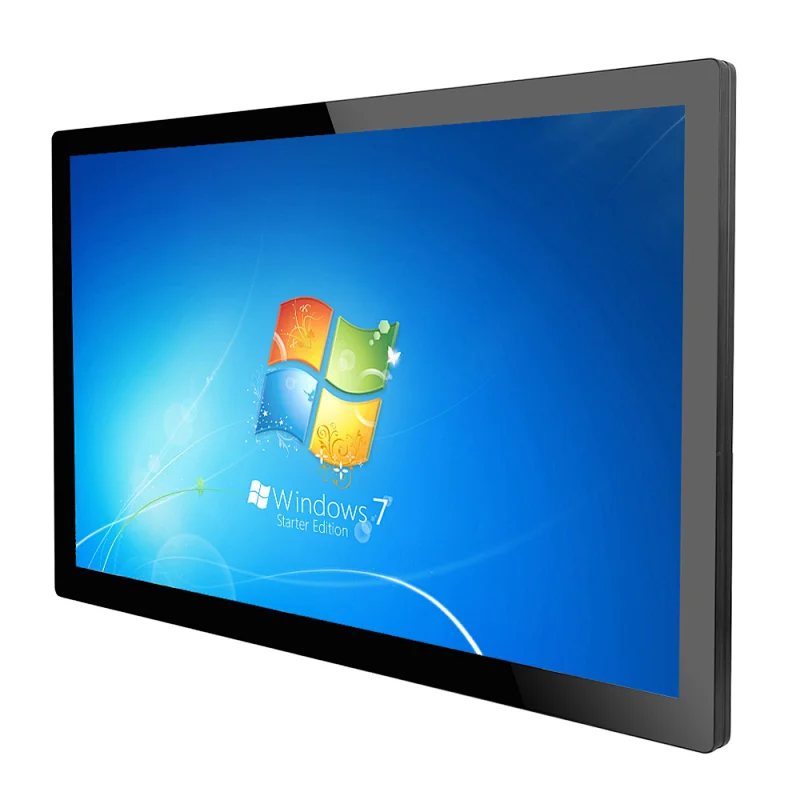

Panel size | 21.5"widescreen |
Display ratio | 16:9 |
Resolution | 1920*1080 |
Brightness | 300nits, 1000nits sunlight readable optional |
Response time | 15ms |
Contrast ratio | 1000:1 |
View angle | 89°/85°/89°/89° (R/L/U/D) |
Touch panel |
Touchscreen Type | 10 points projected Capacitive touch |
Touch Interface | USB |
Touch response time | <8ms |
Luminousness | 75-85% |
Power Supply |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤18W |
Operating Environment |
Temperature range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details |
Packing detail | |
Weight (G.W.) | |
Accessories | Power adapter, Wifi antenna, user manual |
Other |

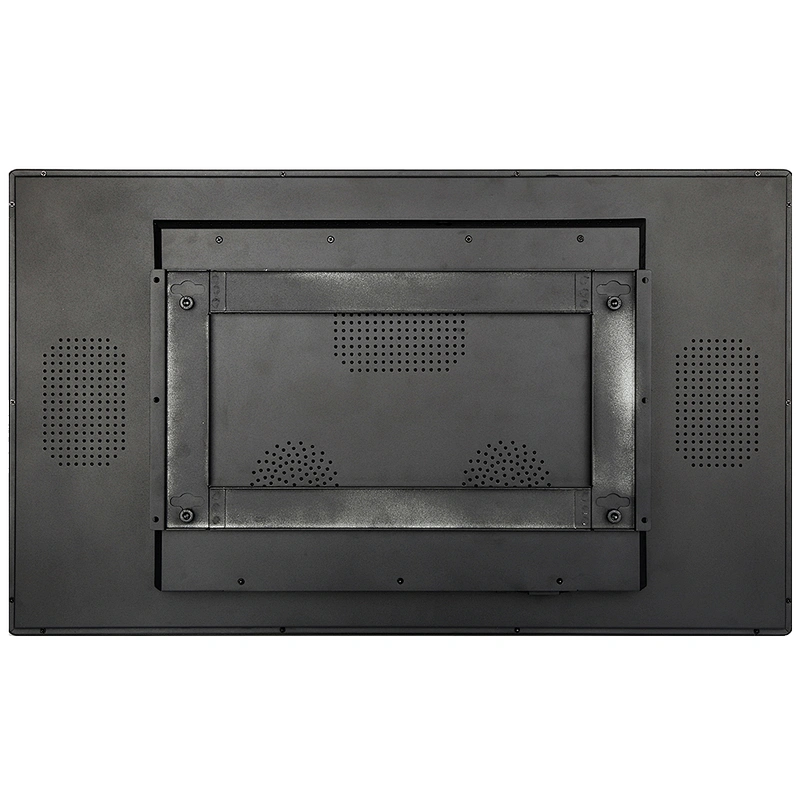

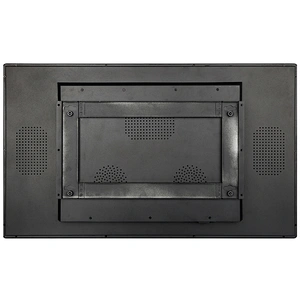

Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide metal stander to support the monitor |
Certification | CE, FCC |
Warranty | 1 year warranty |
