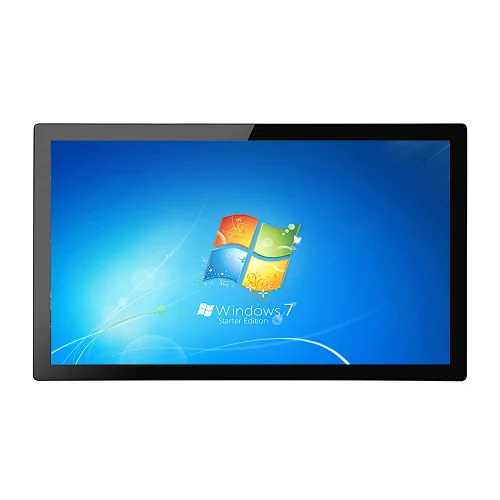

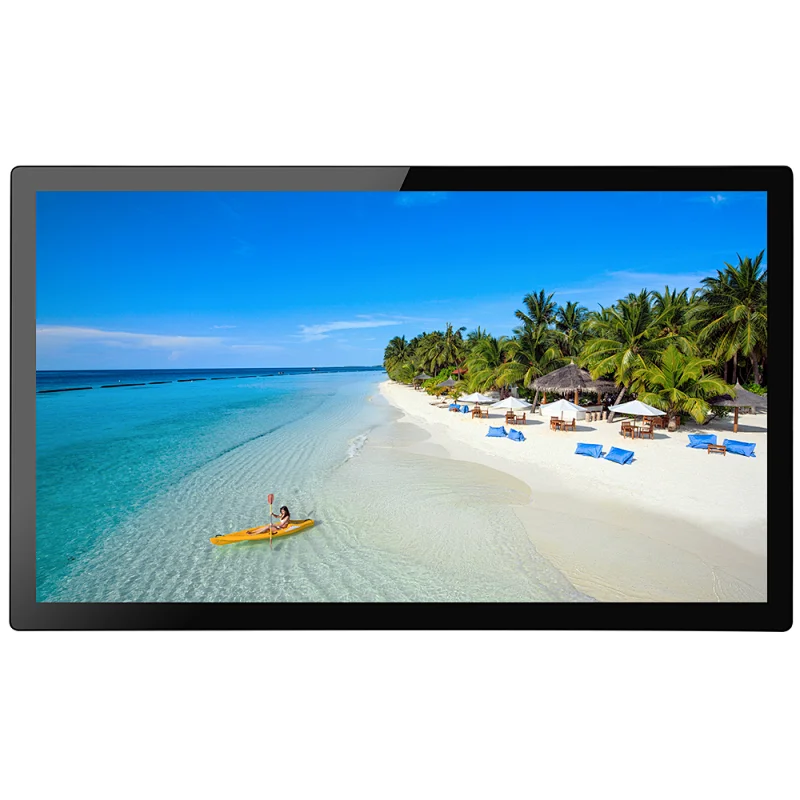

Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC

Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC

Model NO.
YT236PC-WC
Quantity:
  • Certification:FCC, CE, RoHS
  • Material:Metal case+ aluminum alloy front case
  • Color:Black
  • Resolution:1920*1080
  • Display ratio:16:9
  • I/O Ports:VGA/HDMI/LAN/,USB for touch
  • CPU:J1900, i3 /i5 i7 optional
  • Memory Capacity:2GB or above
  • Hard disk:32GB or above
  • Type:TFT
  • Application:Indoor
  • Warranty:1 Year
  • After-sales Service Provided:Video technical support
  • After-sales Service Provided:Free spare parts
  • After-sales Service Provided:Online support
  • Place of Origin:CN;GUA
  • Screen Size:23.6 inch
  • Brand Name:Bestview/OEM/ODM
  • Model Number:YT236PC-WC
  • Viewing Angle:85/85/80/80 (Typ.)(CR≥10)
  • Pixel Pitch:0.2715x0.2715 mm (HxV)
  • Contrast Ratio:1000:1
  • Brightness:250cd/m2
  • Response Time:8 ms
  • Input Voltage:DC 12V
Applications
·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
·Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
·Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
·Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
·Non-profit Organizations: Telecommunications, post offices, hospital, schools;
·Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
·Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Related Products

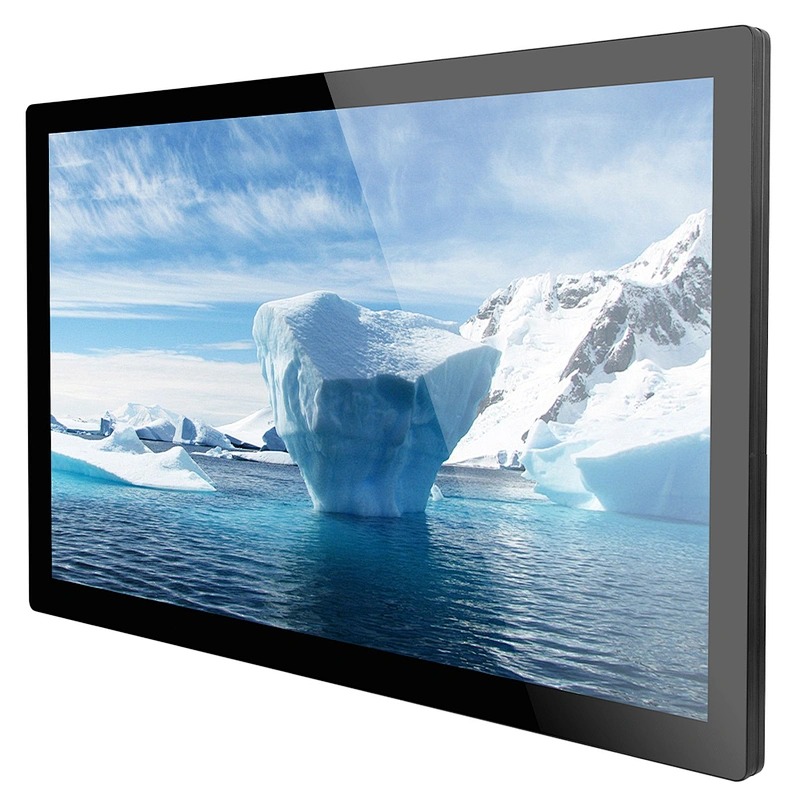

Product Description
LCD panel( IPS screen)
Factory direct sale 23.6 inch capacitive touch screen industrial panel pc desktop computer gaming PC
PC
CPU
Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional)
Memory
2GB DDR3, ( Max. 8G)
Hard Drive Capacity
32G SSD or 320G HDD

Hard Drive Optional
SSD: 32GB,64GB,128GB,256GB
HDD: 320GB,500GB,1TB
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
WIFI optional

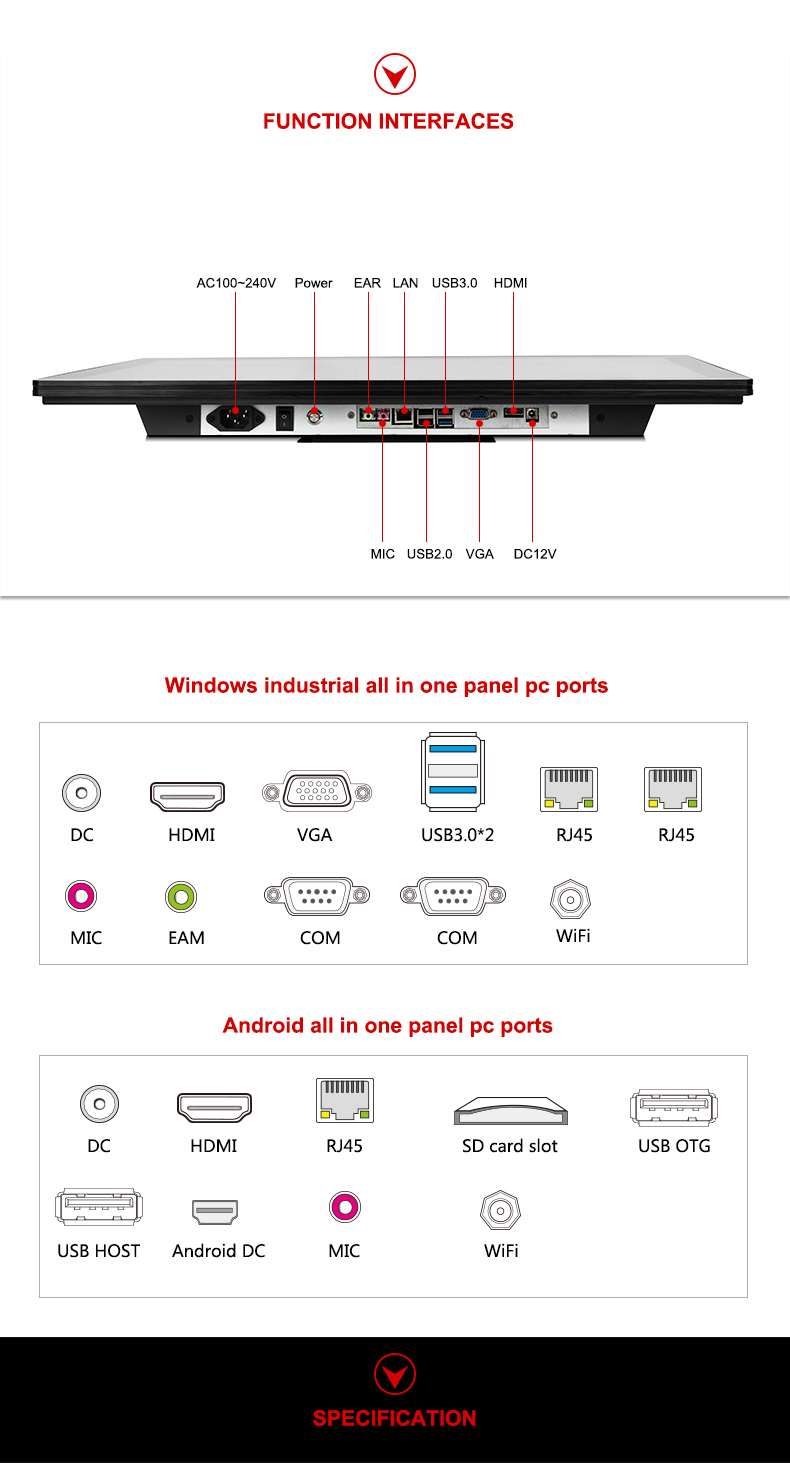

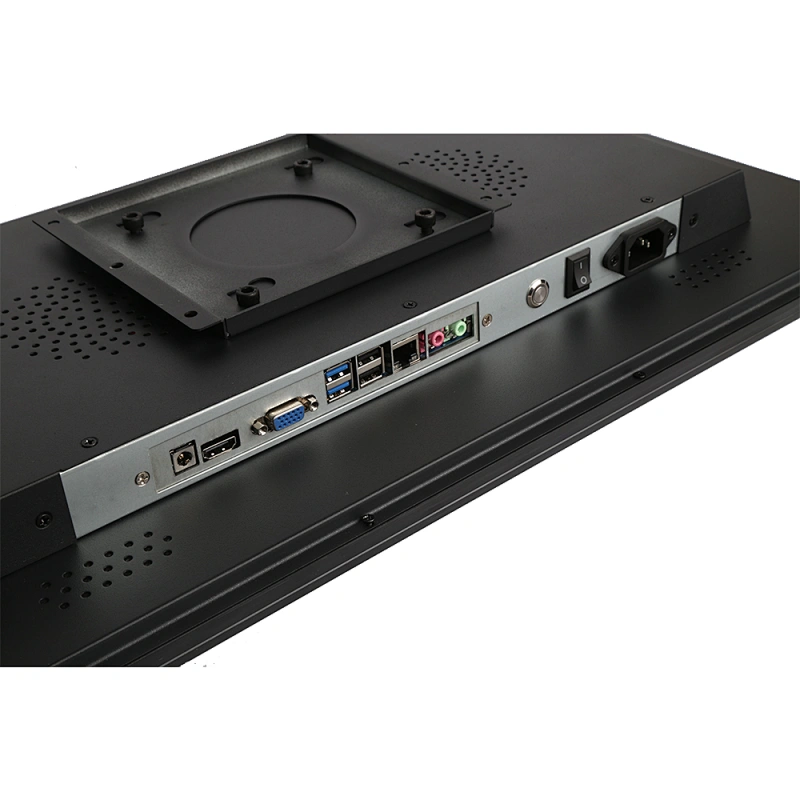

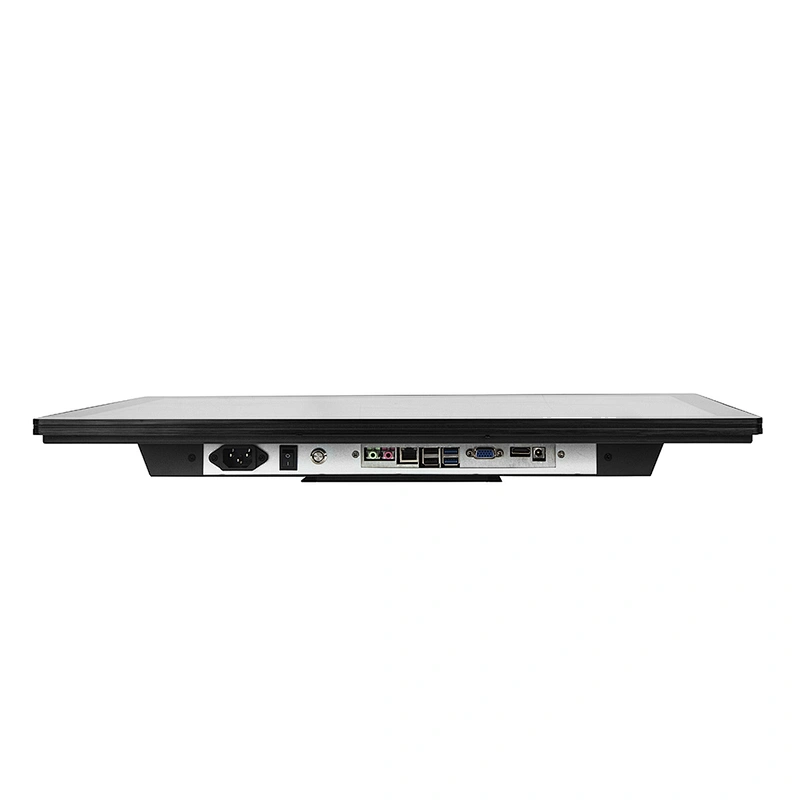

I/O Interface
1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC
Opetation System
Preinstall test version Windows 7/8/10,Linux
Image Format
Support BMP、JPEG、PNG、GIF
LCD panel
Panel size
23.6 Inch
Resolution
1920x1080
Brightness (cd/m²)
250 cd/m2
Response time
15ms
Contrast ratio
1000:1
View angle
89°/89°/89°/89° (R/L/U/D)
Touch panel
Touch Type
10 points projective Capacitive touch optional
Touch Interface
USB
Response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, Wifi antenna
Other

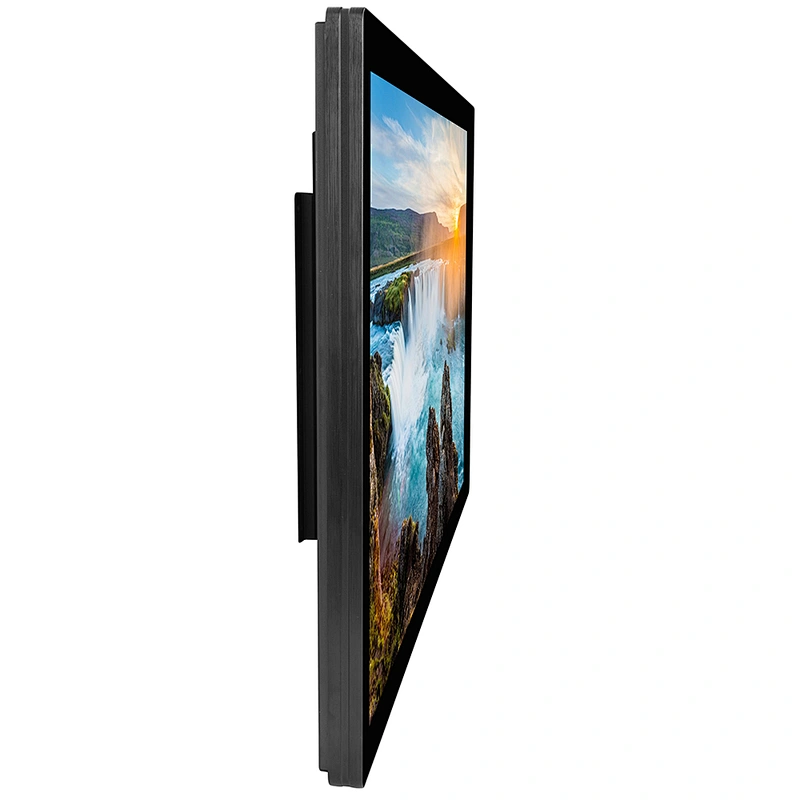

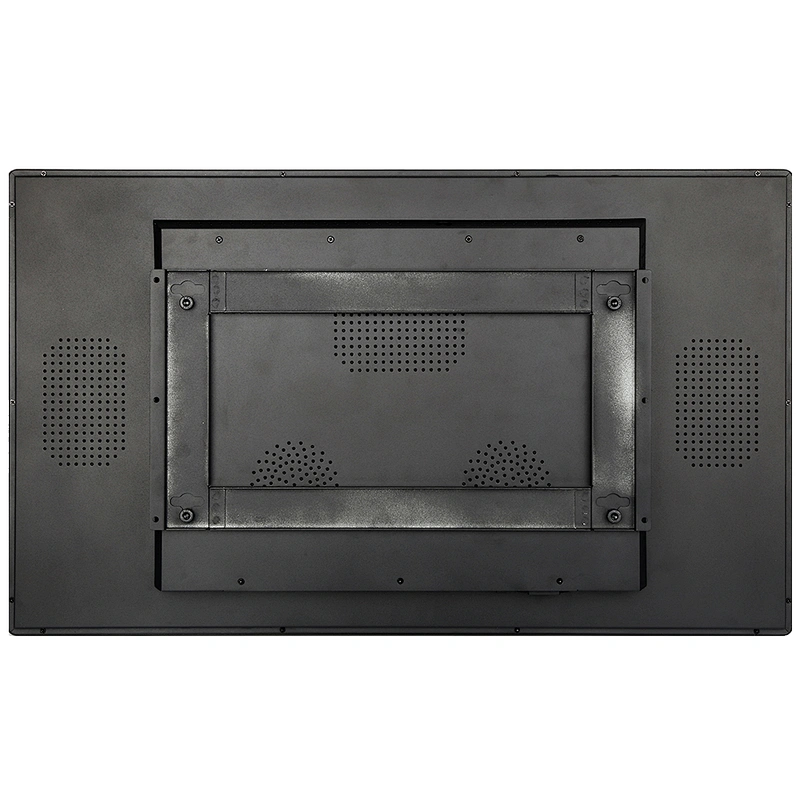

Mounting (options)

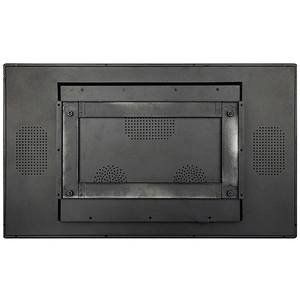

1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide Floor standing to support the PC
Certification
CE, FCC,ROHS
Warranty
1 year warranty
Product Usage
Packing&Shipping
Company Profile
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch
monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got
certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.
Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian
World Studios etc.

Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D
experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product
has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.

FAQ
1. How to pay?For bulk order, it is better to pay by TT(HSBC), to save your banking charges.For sample and small order, Paypal and Western Union are acceptable.2. When can you get it?For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.OEM or ODM order, the lead time is negotiated.3. How to get?All items can be shipped by DHL, UPS, FedEx, EMS, BY AIR, BY SEA and so on ACCORDINGLY.
