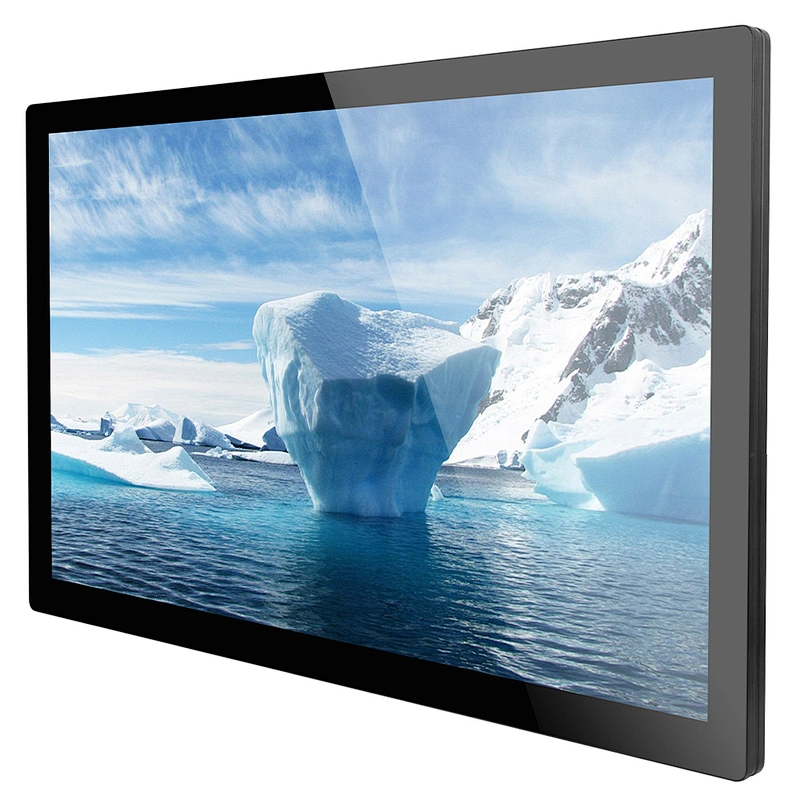

Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops
Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops

Bestview 18.5 inch aio fanless pc wall mount industrial touch screen computer all in one panel pc desktops

Model NO.
YT185PC
Quantity:
  • Color:black and silver
  • Panel Type:TFT
  • Resolution:1366*768
  • Brightness:300cd/m2
  • Contrast Ratio:1000:1
  • Pixel Pitch:0.264 x 0.264 mm
  • Response Time:10ms
  • Touch type:infrared touch
  • Warranty:1 year
  • Memory Capacity:2GB(Up to 16GB)
  • Products Status:New
  • Warranty(Year):1-year
  • Graphics Card Type:Integrated Card
  • Widescreen:yes
  • Certification:FCC
  • Certification:ce
  • Interface Type:D-SUB
  • Interface Type:DVI
  • Interface Type:HDMI
  • Interface Type:VGA
  • Interface Type:usb
  • Color:Black
  • Display Type:LCD
  • Processor Brand:Intel
  • Display Ratio:16:9
  • Plugs Type:US
  • Plugs Type:JP
  • Plugs Type:CN
  • Plugs Type:AU
  • Plugs Type:UK
  • Plugs Type:EU
  • Hard Drive Type:SSD+HDD
  • Operating System:Windows 10
  • Processor Type:Intel Core
  • Graphics Card Chipset:Integrated Card
  • Processor Series:Intel CoreM
  • Video Memory:64GB
  • Video Card:Intel HD graphics
  • After-sales Service:Free spare parts
  • After-sales Service:Return and Replacement
  • After-sales Service:Repair
  • After-sales Service:Others
  • Place of Origin:CN
  • Brand Name:Bestview
  • Model Number:YT185PC
  • Processor Main Frequency:1.86GHz
  • Optical Drive Type:No
Related Products
Product Description
PC
CPU Standard
Intel® Celeron J1900, quad core, 2.0Ghz, fanless; core i3, i5 optional
Memory
4GB/8GB ( Max. 16GB)
Hard Drive Capacity
32GB SSD

Hard Drive Optional
SSD: 64GB, 128GB, 256GB
HDD: 320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller

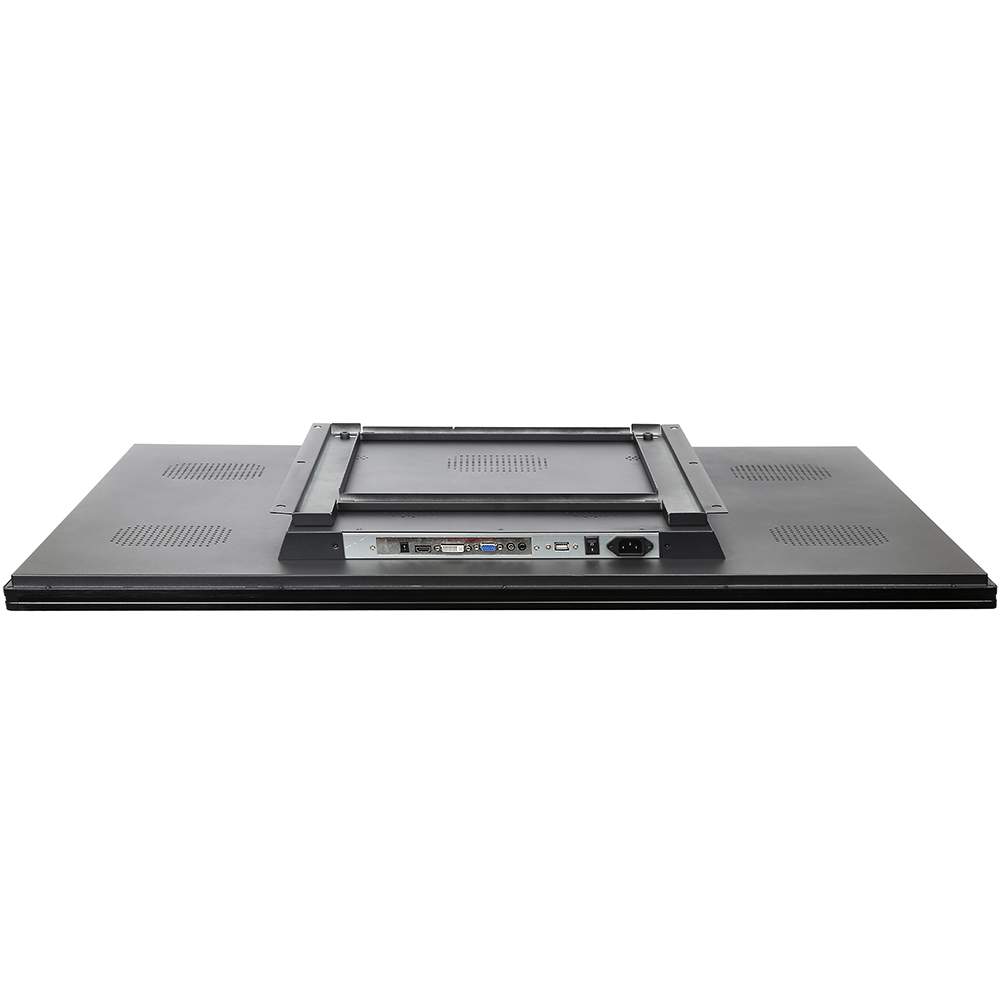

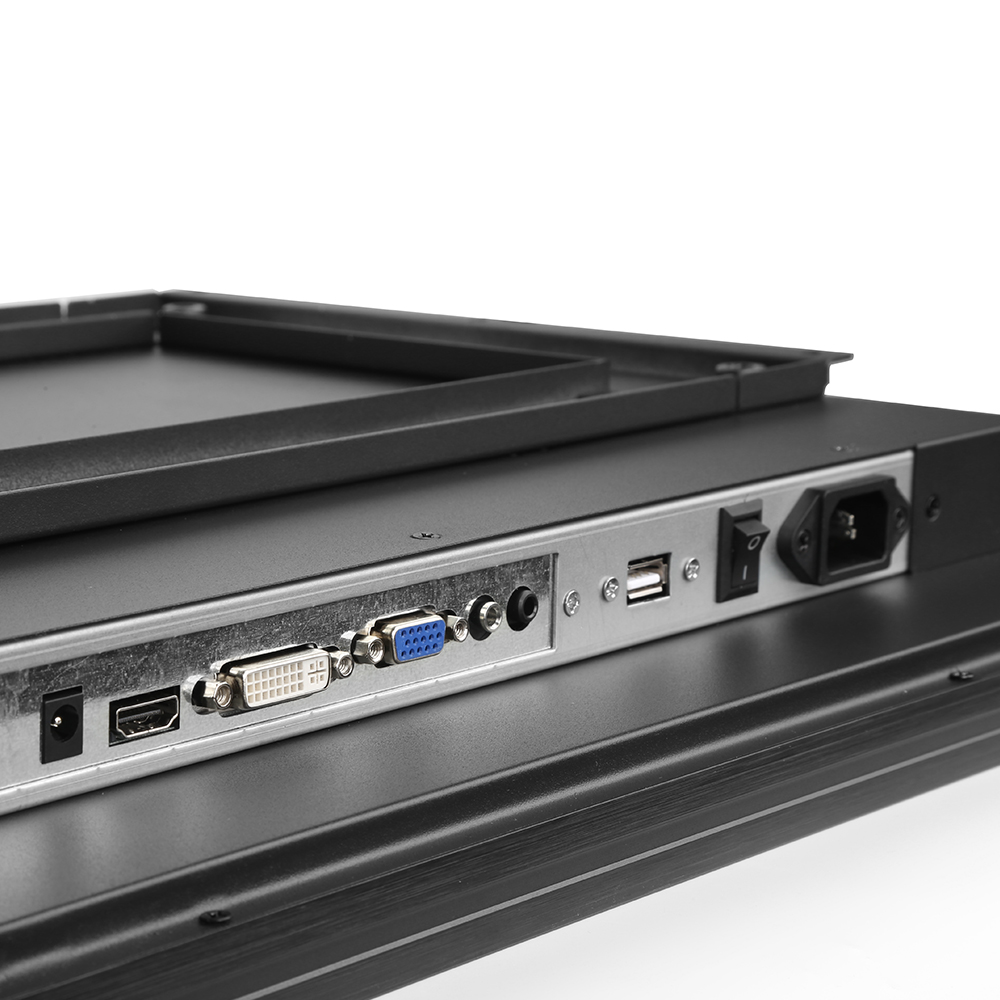

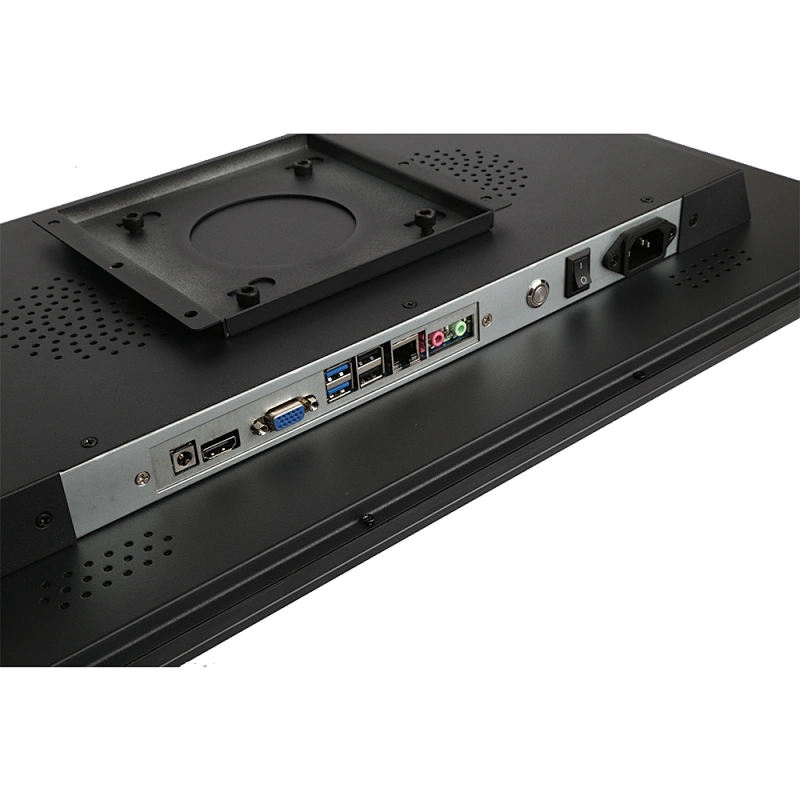

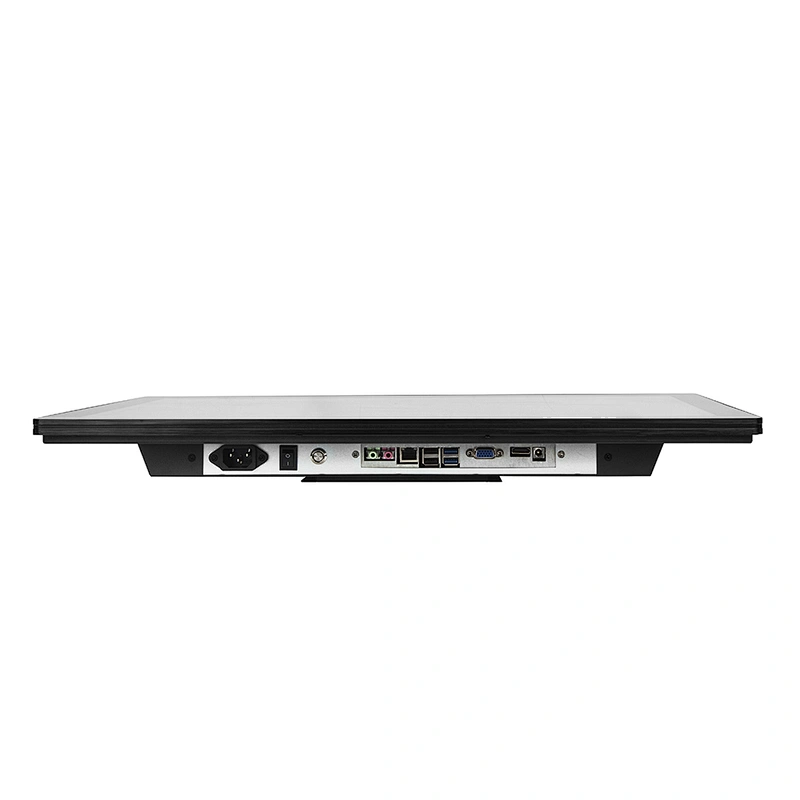

I/O Interface
4xUSB, 1xVGA/HDMI/LAN/MIC/EAR/DC Power, 2xCOM optional
Opetation System
Preinstall test version Windows 7/8/10(with license optional),Linux,Ubuntu
LCD panel
Panel size
18.5"widescreen
Display ratio
16:9
Resolution
1366*768
Brightness
300nits, 700~1000nits sunlight readable optional
Response time
15ms
Contrast ratio
3000:1
View angle
85°/85°/80°/80° (R/L/U/D)
Touchscreen Type
10 points projected Capacitive touch
Touch Interface
USB
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤50W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, Wifi antenna, user manual
Other

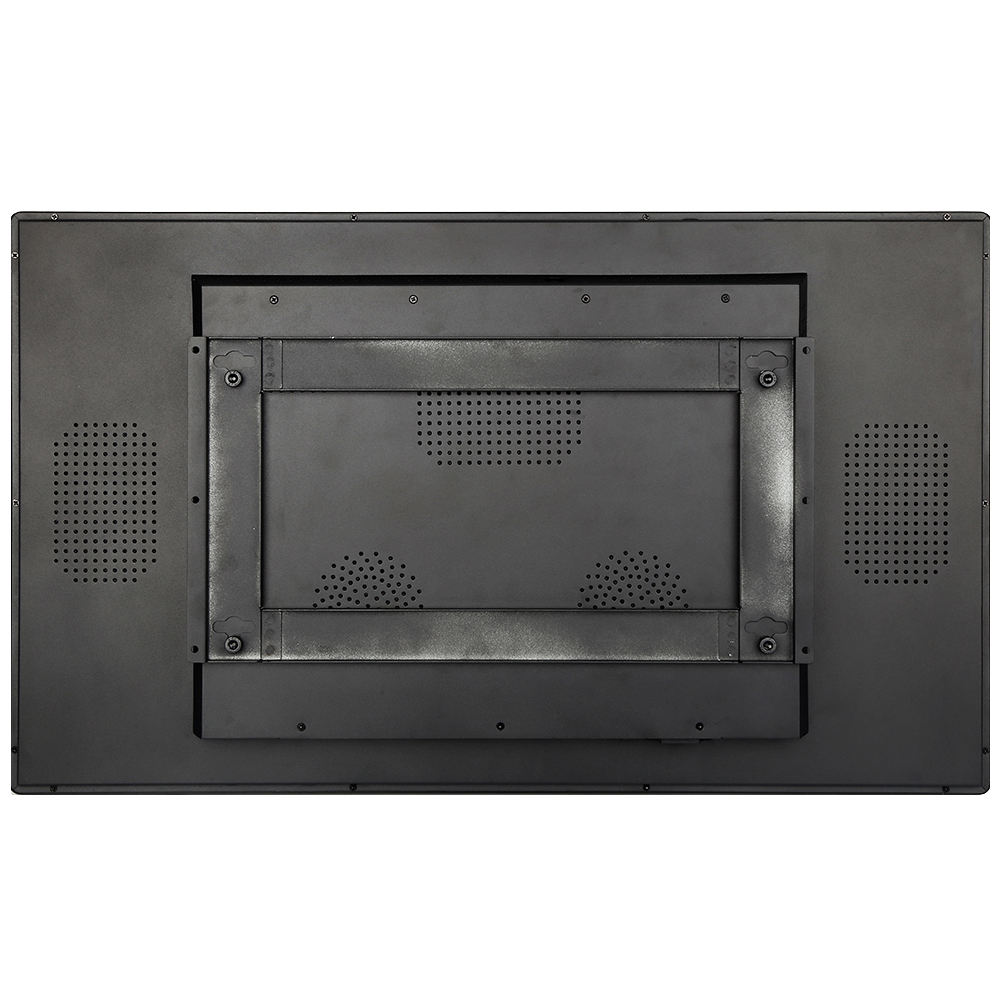

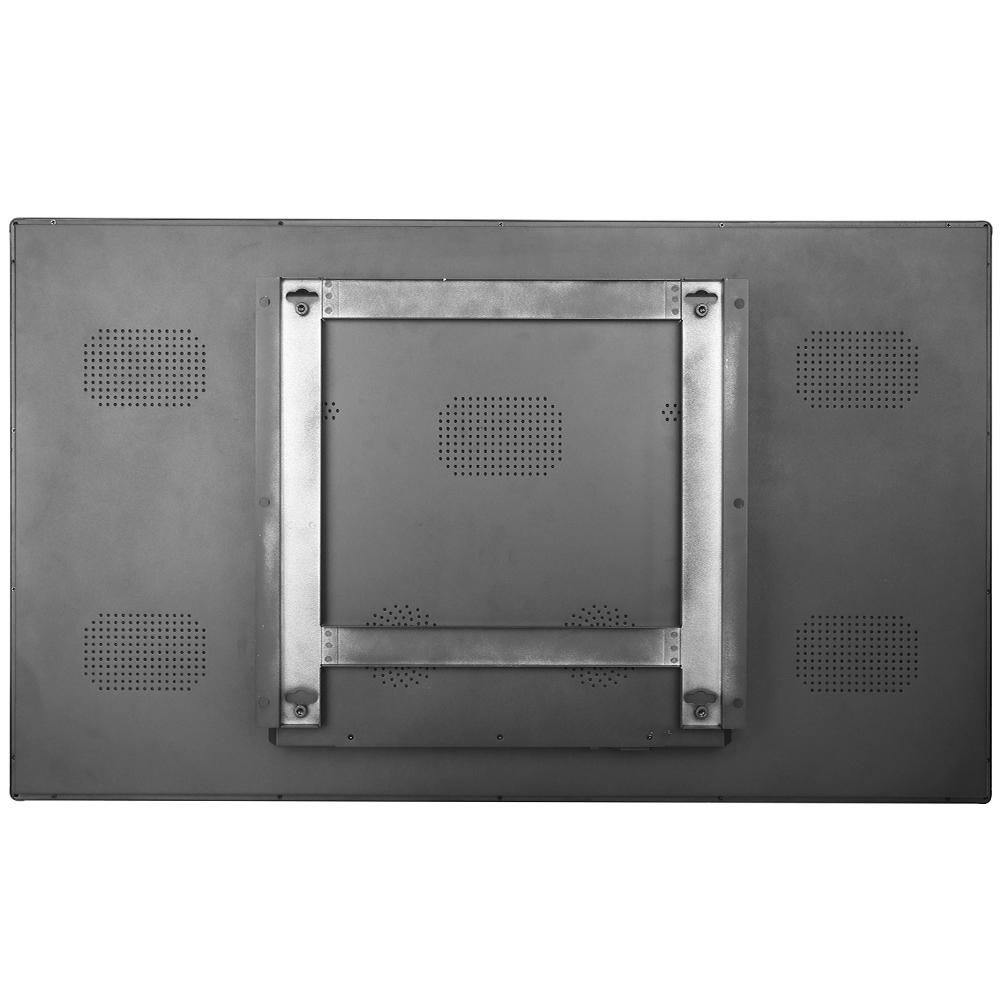

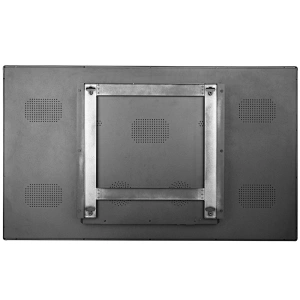

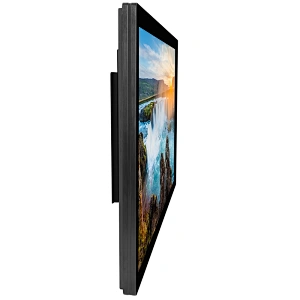

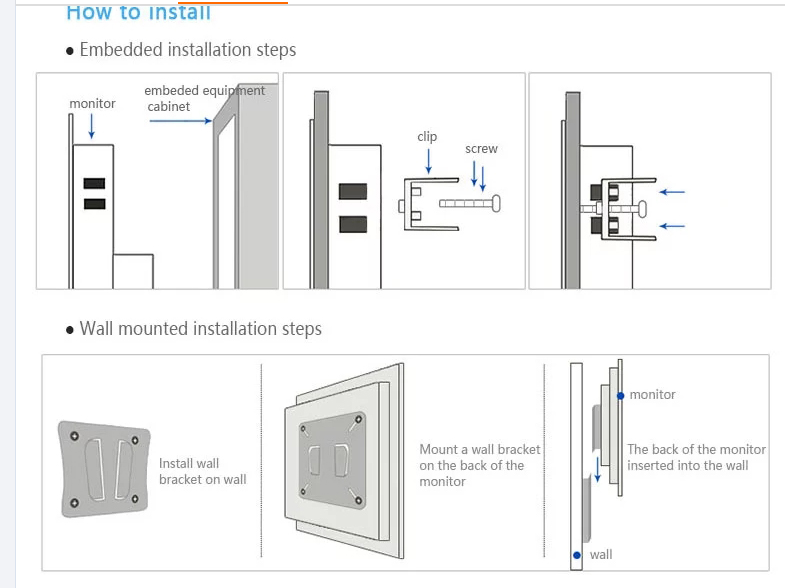

Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide metal stander to support the monitor
Certification
CE, FCC
Warranty
1 year warranty
Company Introduction
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.

Our Services & Strength


1.Your any inquiry or question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize
your idea.
3.To be our agent or distributor is well welcomed.
4.You can find the right product you want,whatever the most competitive price or Highest quality!
Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.
Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product
has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.
FAQ
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
4.What’s the Warranty?
All products with 1year warranty, supply replacement or offer new parts according to our communication.
For quantity and regular order,you may keep the RMA and after long time collection,ship the RMA back together,we offer repair or
replacement,or if you have your own engineer department, no need return back,we can send repair parts to you
