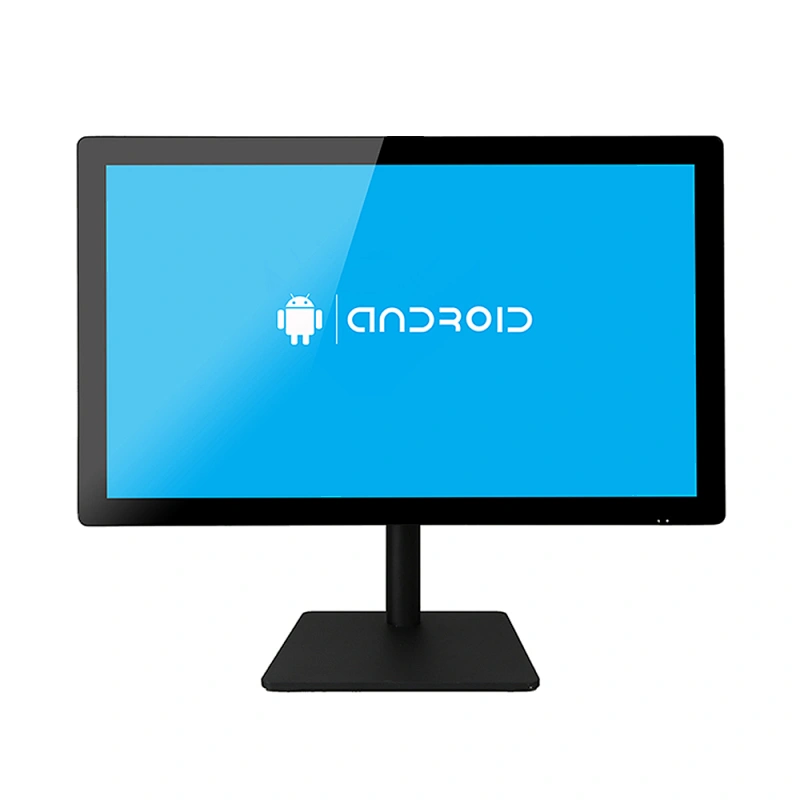

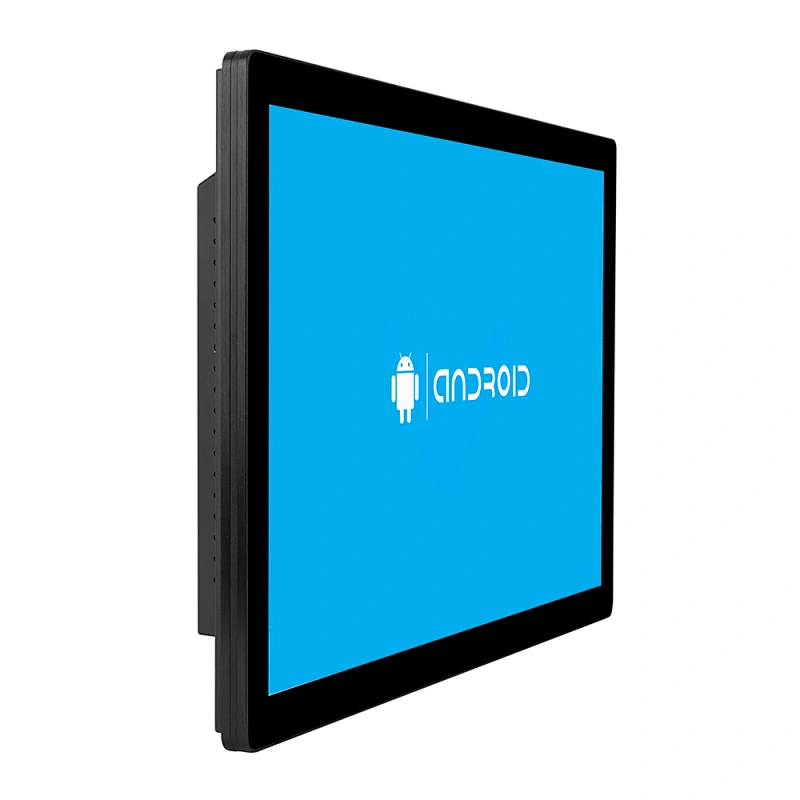

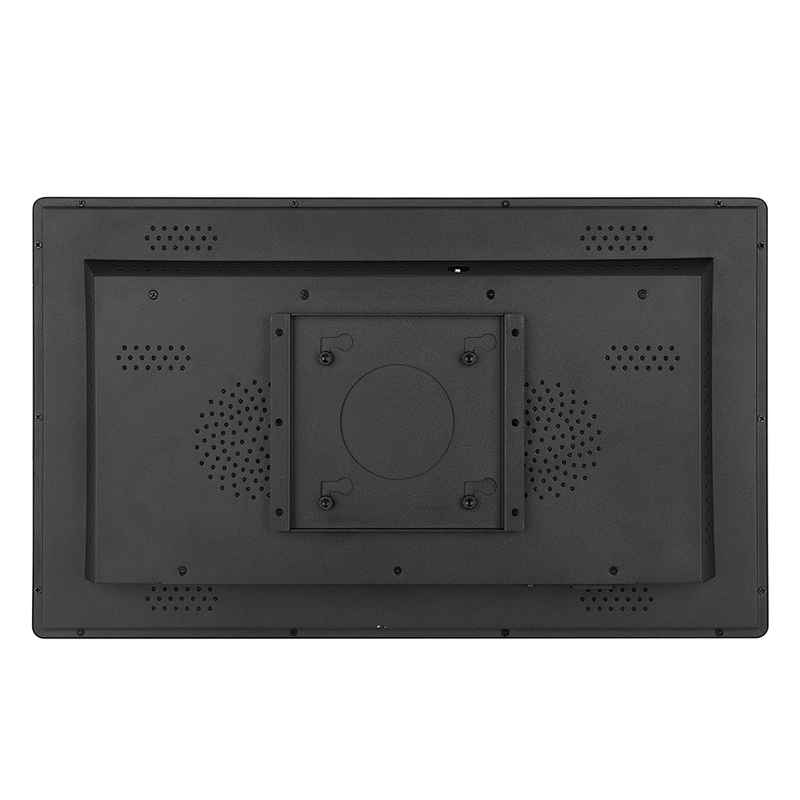

Android RK3288/RK3399 15.6 inch Industrial all in one panel PC android self payment kiosk

Android RK3288/RK3399 15.6 inch Industrial all in one panel PC android self payment kiosk

Model NO.: YT156PC-ACW
Delivery: FOB

Quantity:

Product Description

Applications

·Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
·Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
·Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
·Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
·Non-profit Organizations: Telecommunications, post offices, hospital, schools;
·Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
·Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

Product Description

LCD panel( IPS screen)
Android RK3288/RK3399 15.6 inch Industrial all in one panel PC android self payment kiosk
PC specification
CPU	RK3288 28nm Quad core ARM Cortex A17 1.8 GHz
Memory	2GB DDR3
Nand Flash	EMMC Flash 8GB,24 bit ECC
GPU	Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Video playback	Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Image Format	Support BMP,JPEG,PNG,GIF
Network support	3G, Ethernet, WiFi/Bluetooth 4.0, wireless peripheral expansion
Wireless Network	WIFI optional

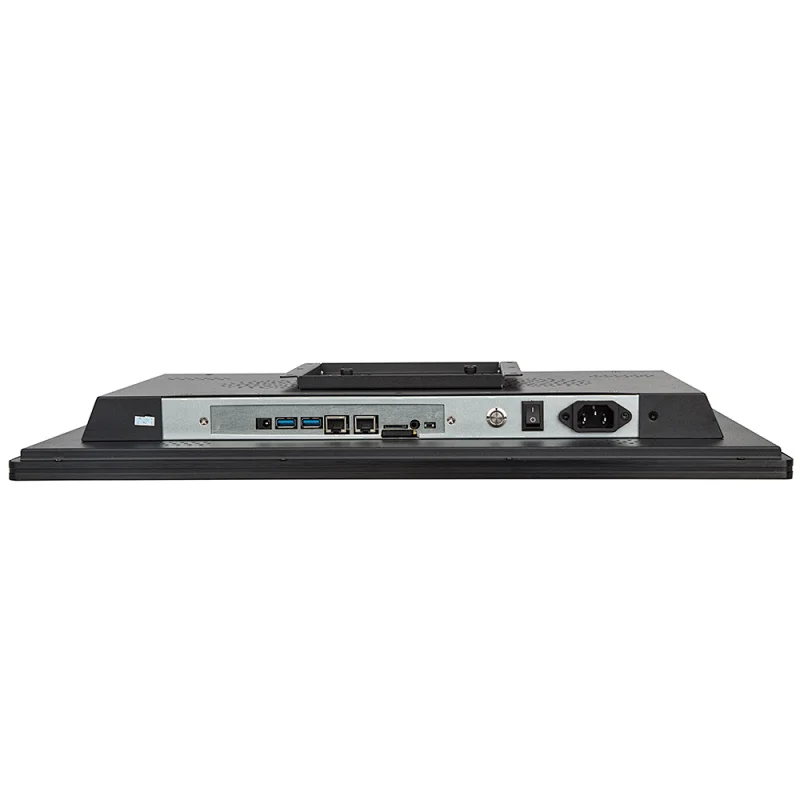

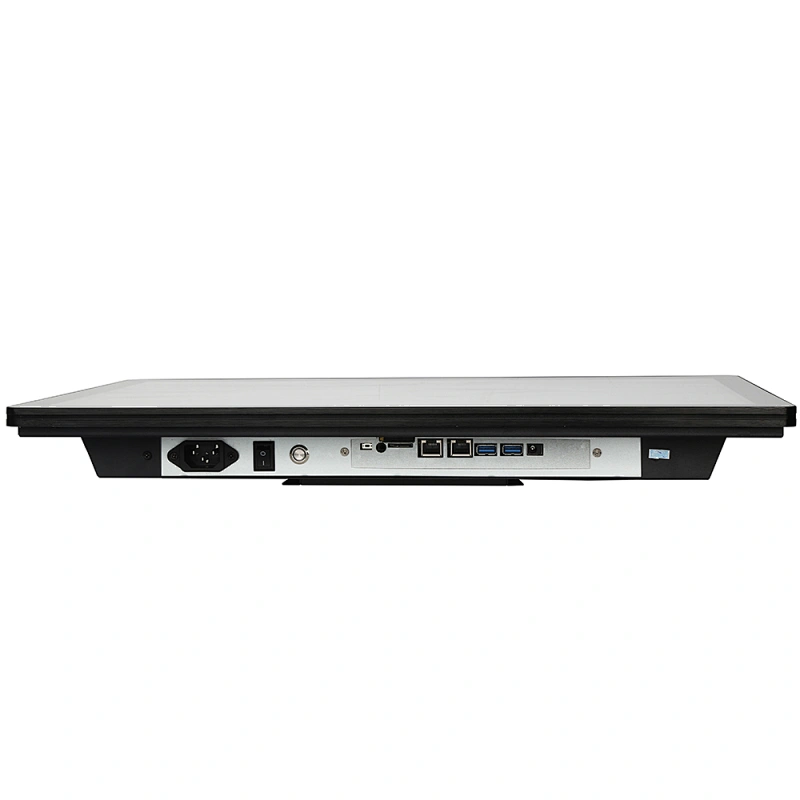

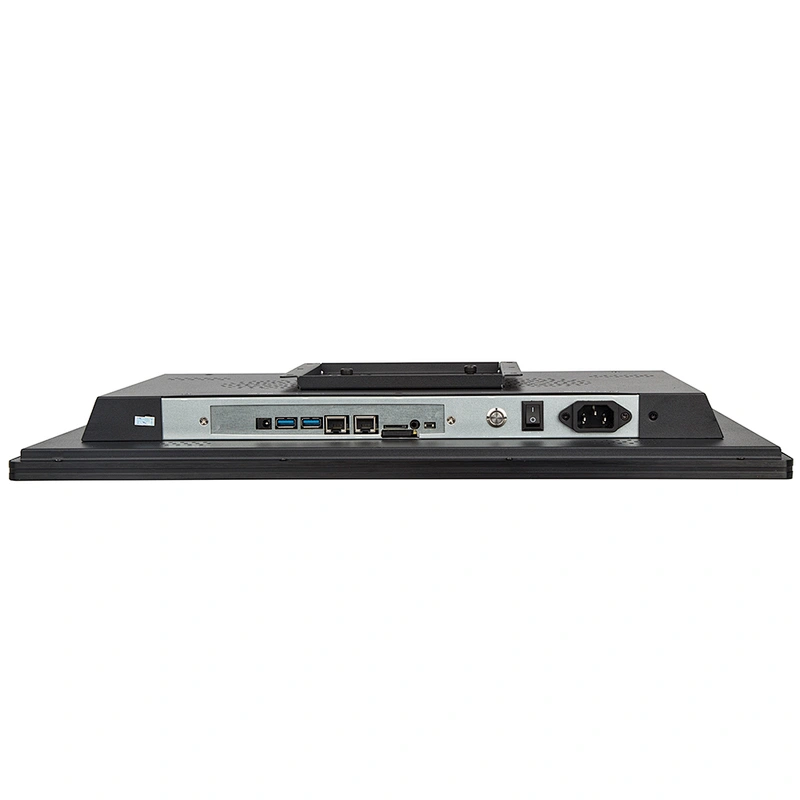

I/O Interface	USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER DC,WIFI,Bluetooth
Opetation System	Support above Android 4.4-6.1 operation system
LCD panel
Panel size	15.6 Inch
Resolution	1920x1080
Brightness (cd/m²)	350 cd/m2
Response time	15ms
Contrast ratio	1000:1
View angle	85°/85°/80°/80° (R/L/U/D)
Touch panel
Touch Type	10 points projective Capacitive touch
Touch Interface	USB
Response time	<8ms
Transmittance	75-85%
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤18W
Operating Environment
Temperature range	operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories	Power adapter, Wifi antenna
Other
Mounting (options)	1) provide wall brackets for wall-mounting, VESA 100×100mm

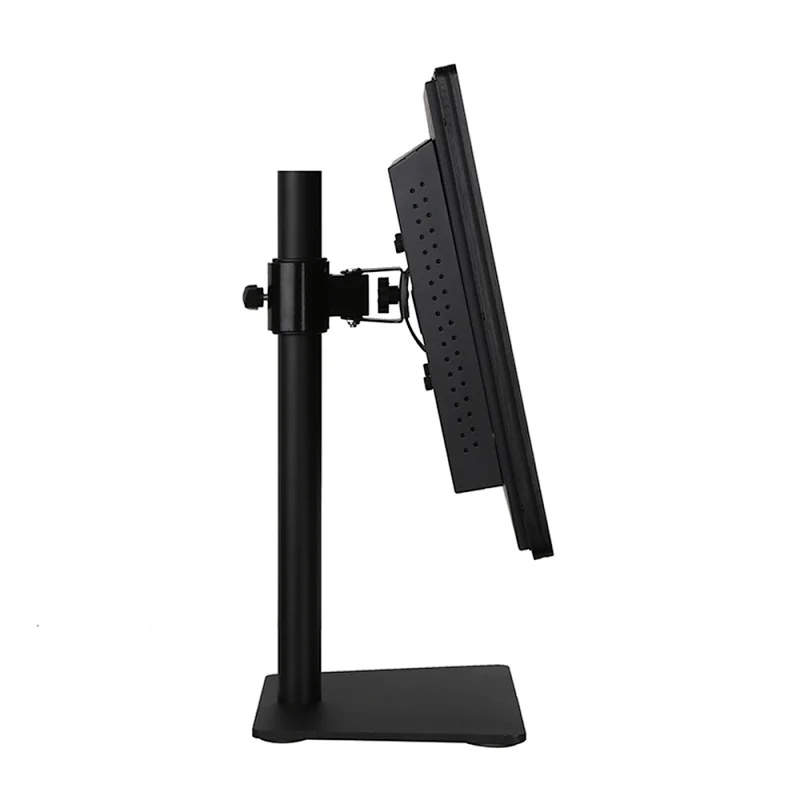

Mounting (options)		2) provide Floor standing to support the PC
Certification	CE, FCC,ROHS
Warranty	1 year warranty

Product Usage

Packing&Shipping

Company Introduction

Bestview is the manufacture specialized for industrial touchscreen monitor, open frame/rack mount monitor, industrial AIO panel pc, IP65 waterproof monitor, Field/broadcast monitor.

Our Services & Strength

1. Any inquiry or question will be replied within 24hrs. 2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have a professional engineer team to realize your idea. 3. To be our agent or distributor is well welcomed. 4. You can find the right product you want, whatever the most competitive price or Highest quality!

FAQ

1. How to pay? For bulk order, it is better to pay by TT(HSBC), to save your banking charges. For sample and small order, Paypal and Western Union are acceptable. 2. When can you get it? For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days. OEM or ODM order, the lead time is negotiated. 3. How to get? All items can be shipped by DHL, UPS, FedEx, EMS, BY AIR, BY SEA and so on ACCORDINGLY.
