Model NO.:
YT215PC-R
Minimum order quantity::
1 piece
Supply Ability:
3000.0 piece / Month
Country of Origin:
Shenzhen/ Hongkong

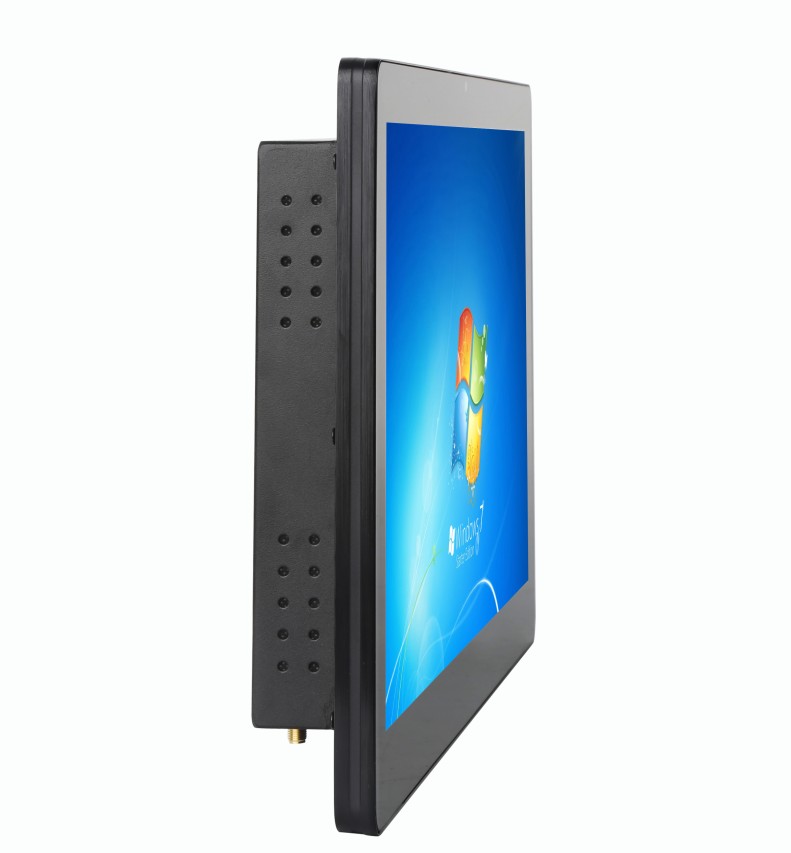

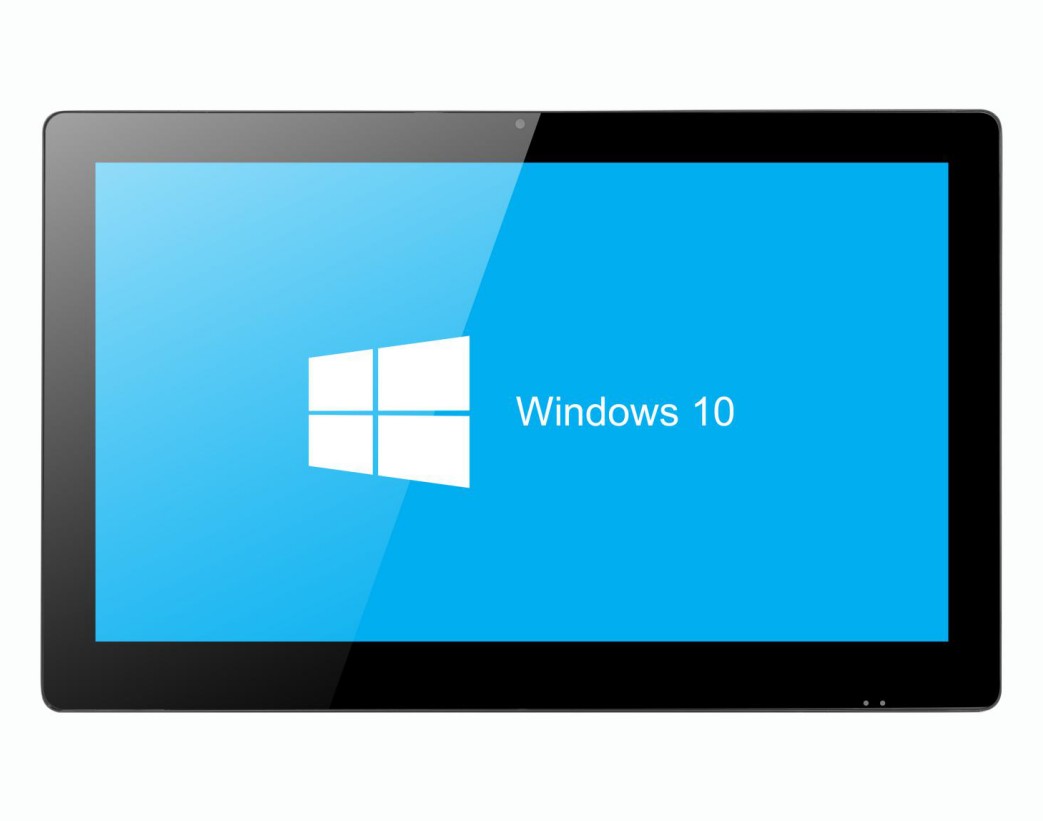

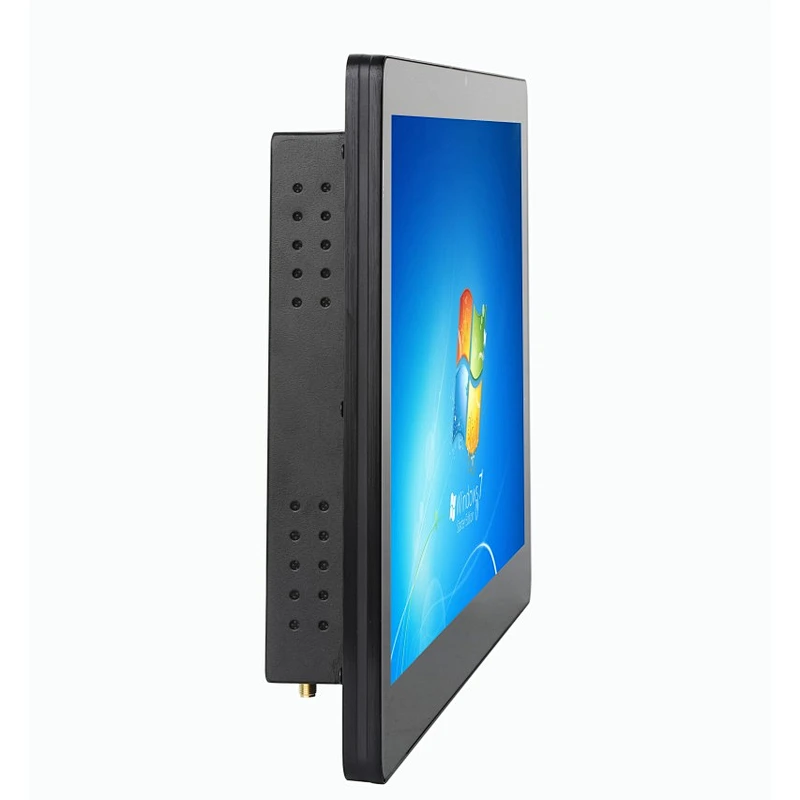

21.5 inch 1920*1080 high resolution industrial true flat capacitive touch screen all in one panel pc

Related Products

.jpg

Detailed Images






Product Description

PC

CPU Standard

on board Intel® Celeron J1900 2.0GHz dual cores( Core i3, Core i5 optional)

CPU Optional

Inter® Core i3-3217, dual core, 1.8Ghz / i5-3317U, dual core, 1.7Ghz

Inter® Core i3 6100U 2.3Ghz / 7100U 2.4Ghz

Inter® Core i5 6200U 2.3Ghz,up to 2.8Ghz / 7200U 2.5Ghz,up to 3.1Ghz

Memory

2G DDR3, ( Max. 8G)

Hard Drive Capacity

32G SSD or 320G HDD

Hard Drive Optional

SSD: 16GB,32GB,64GB,128GB,256GB

HDD: 160GB,320GB,500GB,1TB

Graphics

CPU Integrated graphics HD Graphics and support 1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

Network

1×Realtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI optional

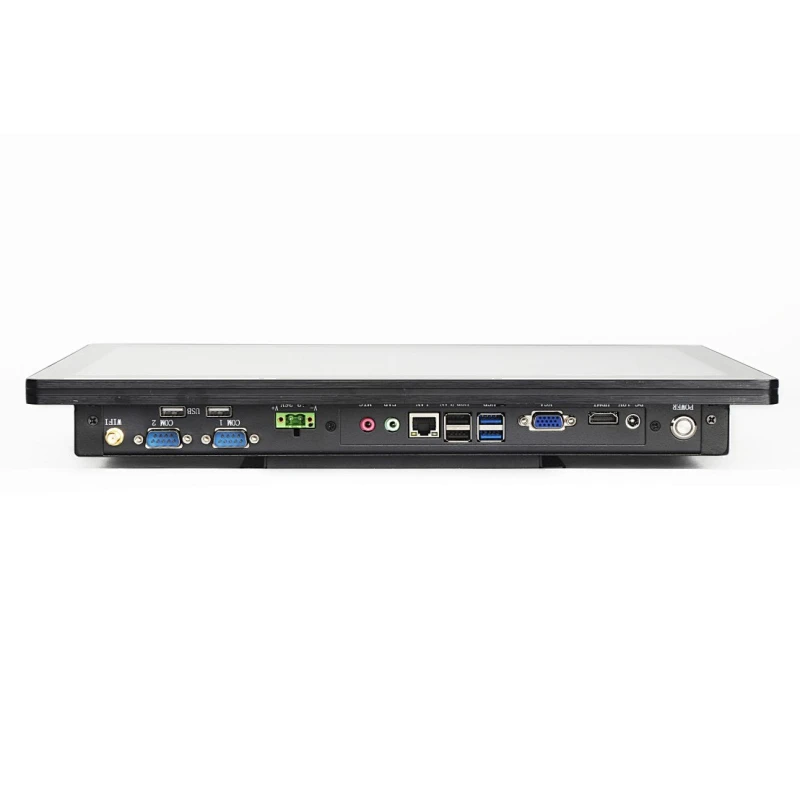

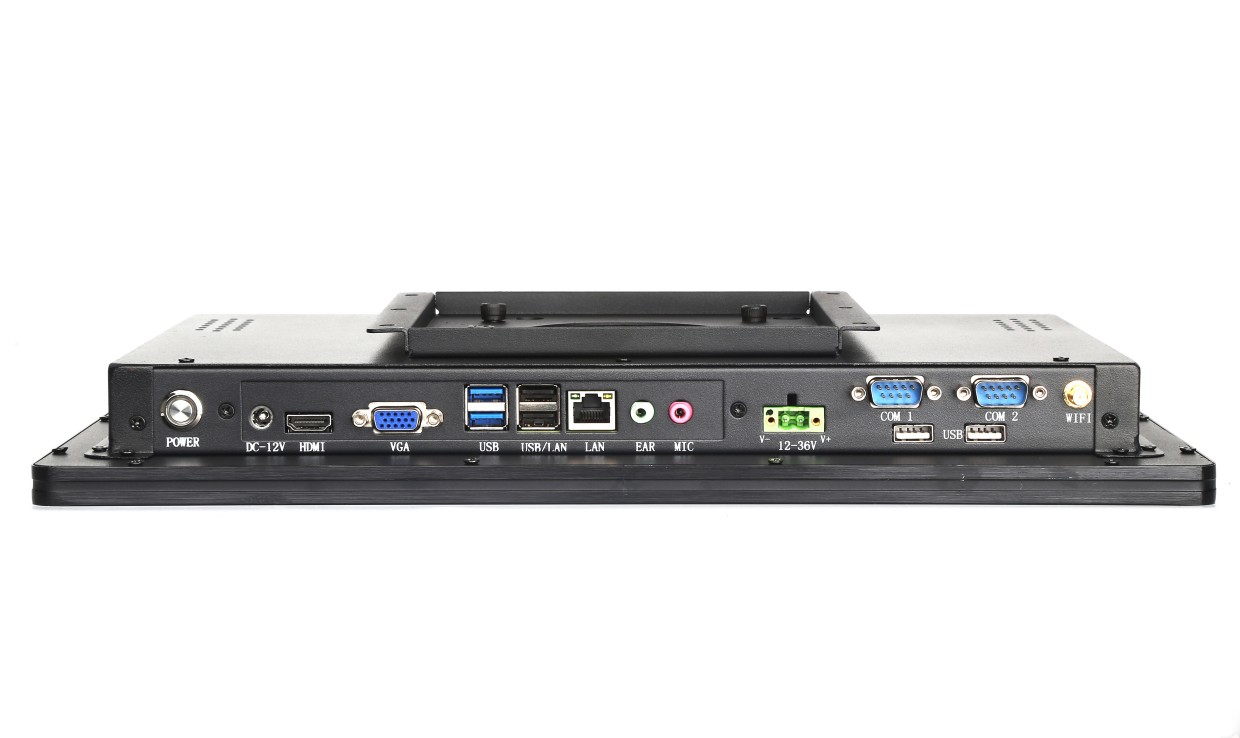

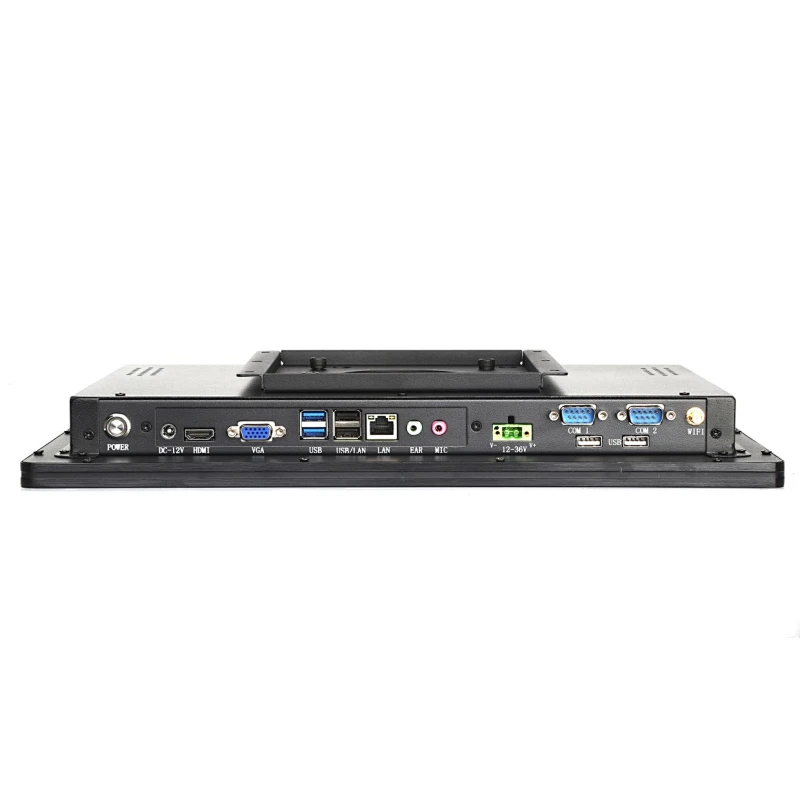

I/O Interface

RS232x2 (Max. RS232x5,RS485x1)

USBx4 (USB2.0x2,USB3.0x2)

HDMIx1

VGAx1

WLANx1(Max. WLANx2)

EARx1

MICx1

PowerDCx1

Opetation System

Preinstall test version Windows 7/8/10,Linux

LCD panel

Panel size

21.5"widescreen

Display ratio

16:9

Resolution

1920*1080

Brightness

300

Response time

15ms

Contrast ratio

400:1

View angle

85°/85°/85°/85° (R/L/U/D)

Touch panel

Touchscreen Type

Capacitivetouch( 4/5 wires resistive touch/no touch optional)

Touch Interface

USB (RS232 optional)

Touch response time

<8ms

Luminousness

75-85%

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Powerconsumption

≤18W

Operating Environment

Temperaturerange

operating: -10to60°C, storage :-20 to 80°C

Relative humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details

Accessories

Power adapter, USB touch CD drive, touch pen, wall mounting bracket

Other

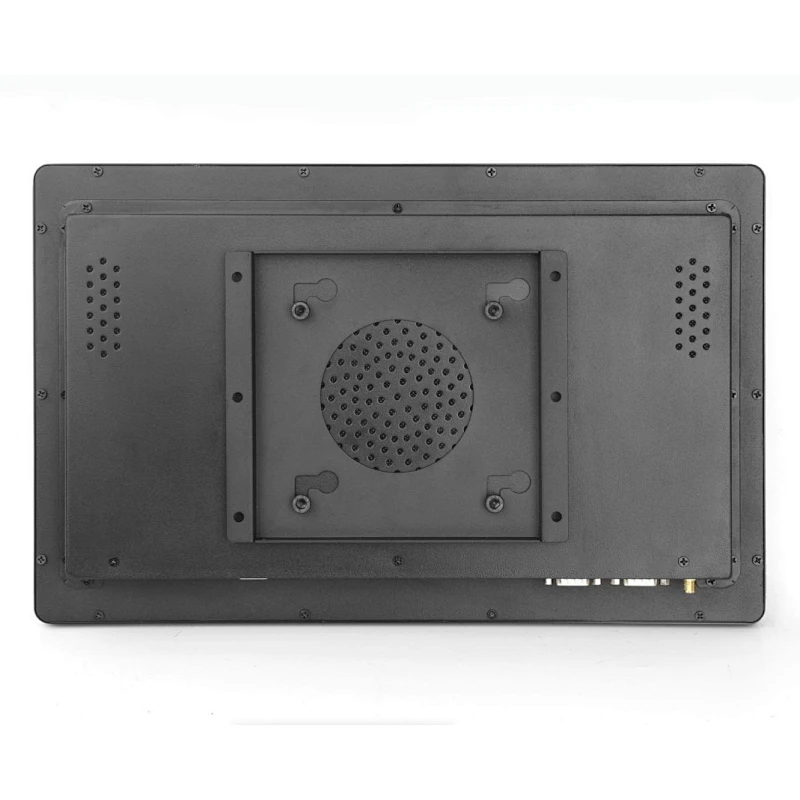

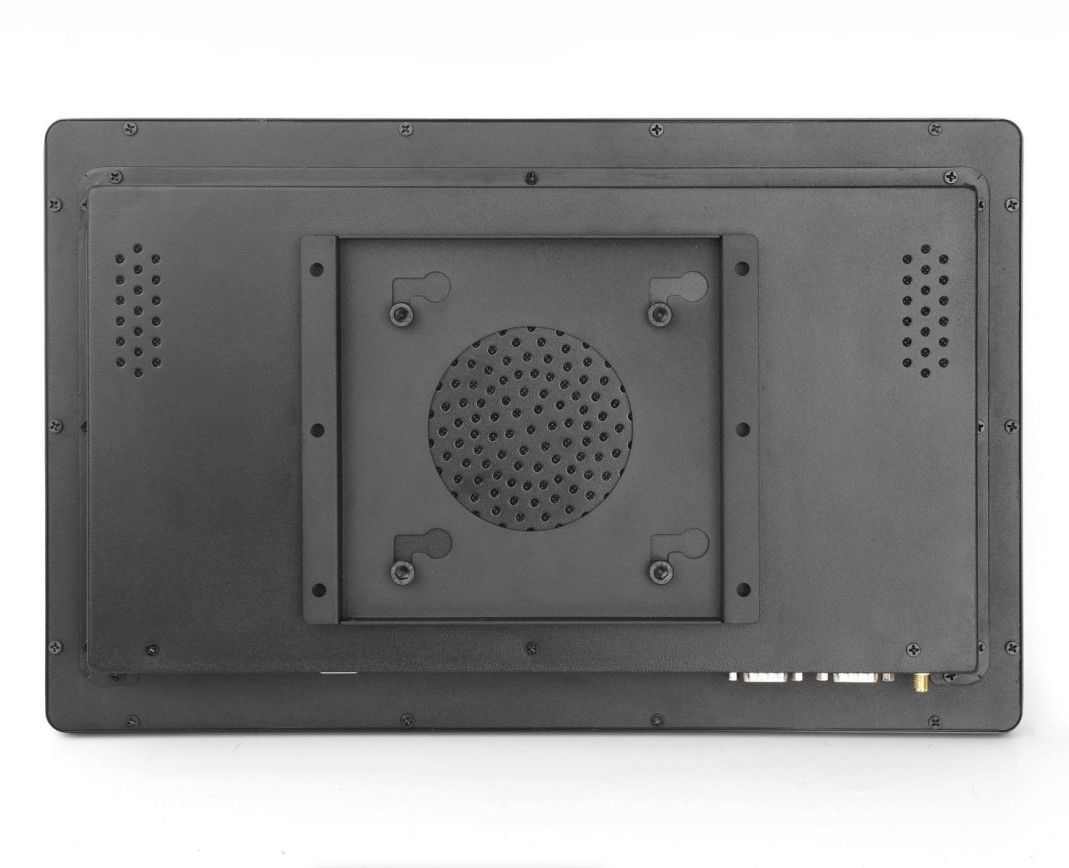

Mounting (options)

1) provide wall brackets for wall-mounting, VESA 100×100mm

2) provide stable metal holder to support the monitor

Certification

CE, FCC

Warranty

1 year warranty

Packaging & Shipping

2-5-packing .jpg3-2 Application of AIO PC .jpg4-1 Our company.jpg4-2 .jpg4-3 FAIR SHOW.jpg4-5 Certificate.jpg
