Product Description
LCD panel( IPS screen) | ||||||||

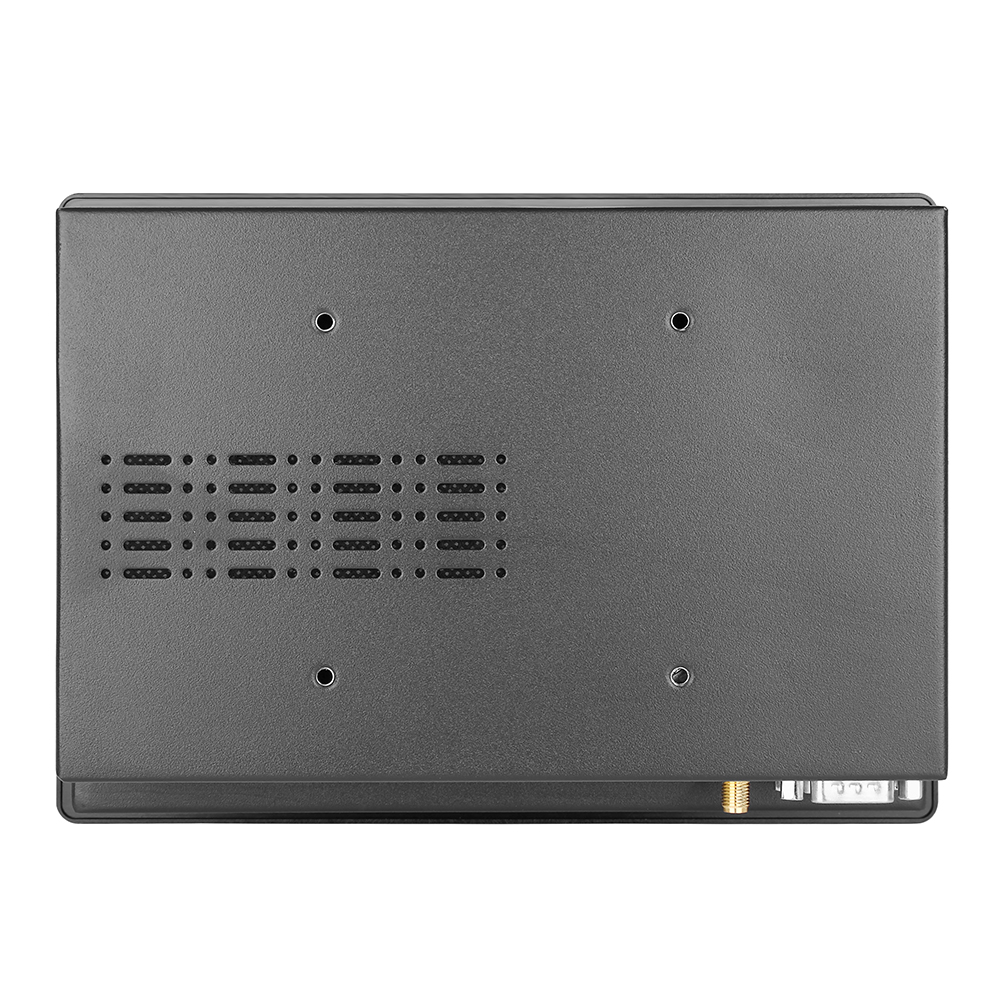

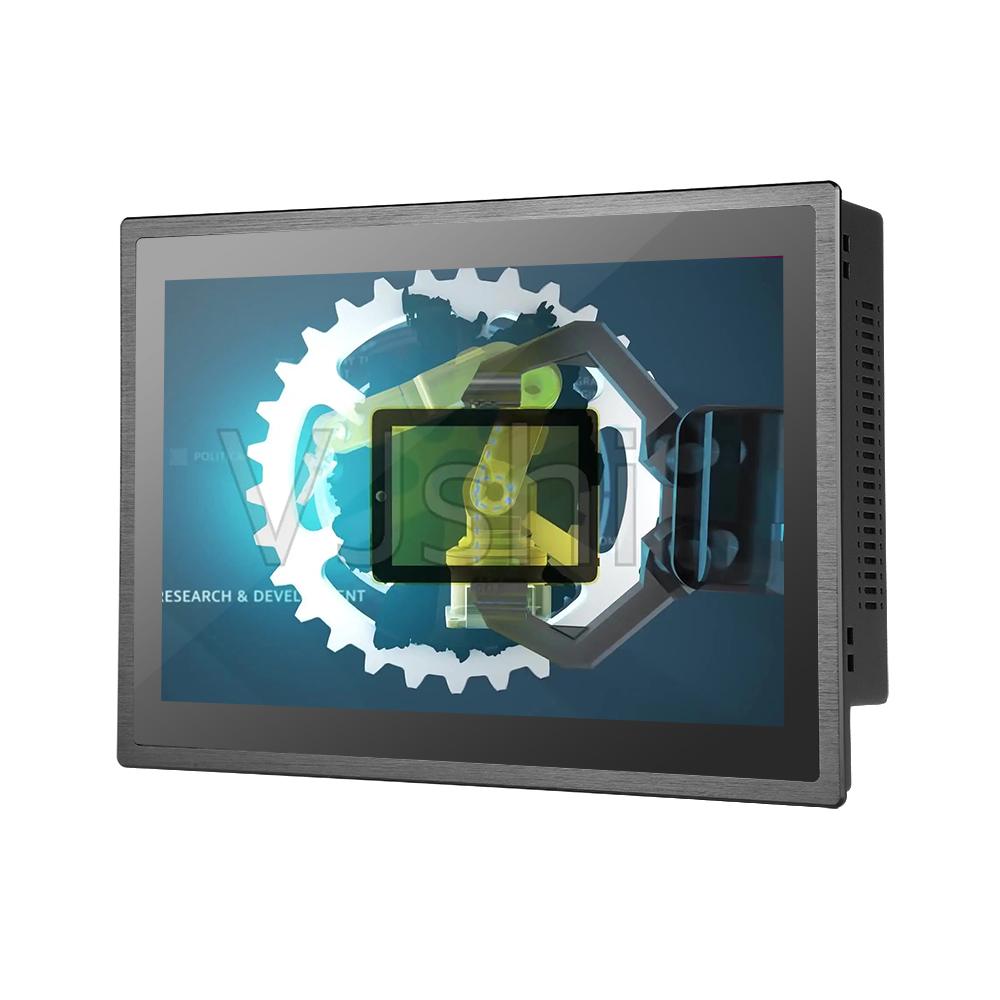

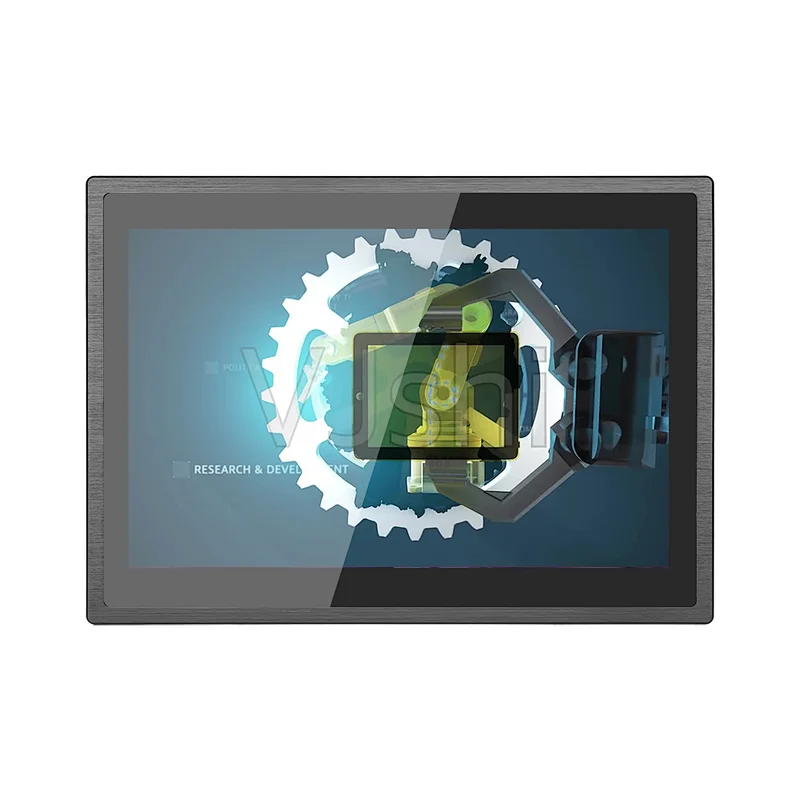

10.1"touch screen all in one pc industrial panel pc ( YT101PC-C) | ||||||||
PC | ||||||||
CPU | Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional) | |||||||
Memory | 2GB DDR3, ( Max. 8G) | |||||||
Hard Drive Capacity | 32G SSD or 320G HDD | |||||||
Hard Drive Optional | SSD: 16GB,32GB,64GB,128GB,160GB | |||||||
HDD: 160GB,320GB,500GB,1TB | ||||||||
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller | |||||||
Wireless Network | WIFI optional | |||||||

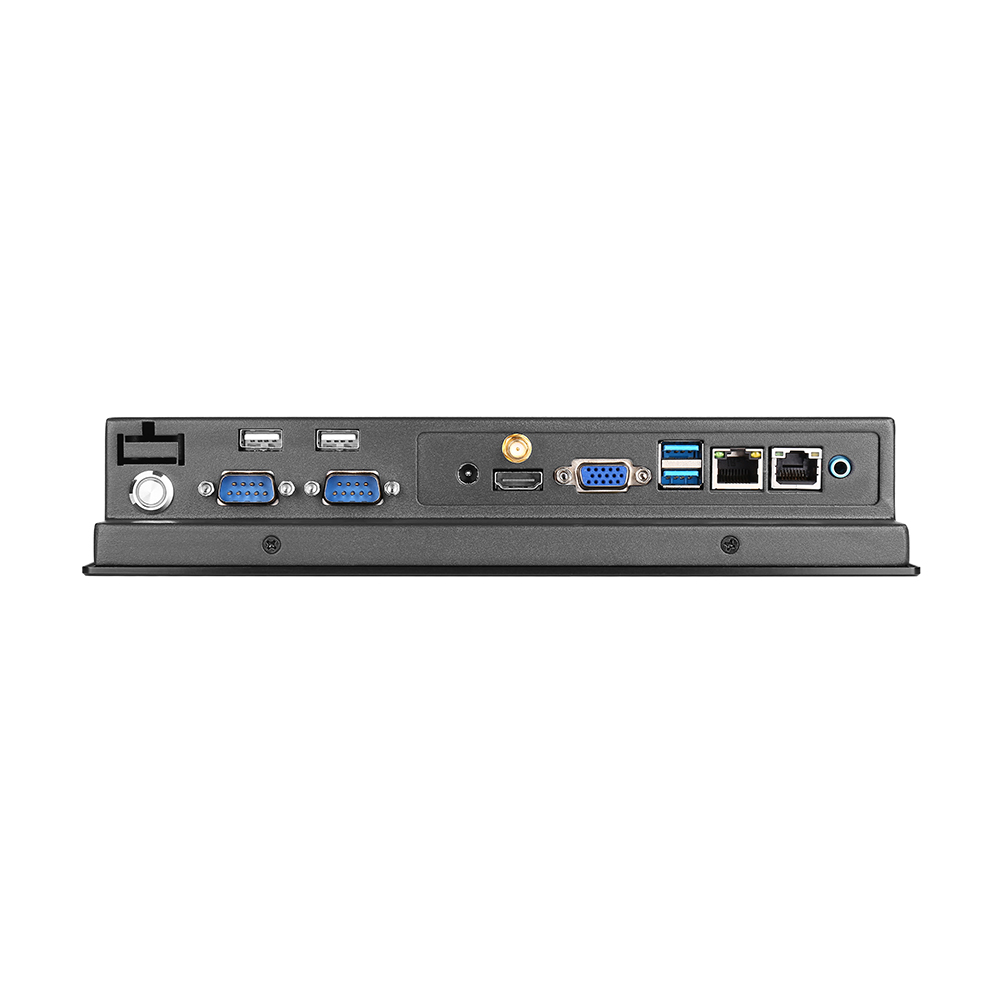

I/O Interface | 2×USB2.0,2×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC | |||||||
Opetation System | Preinstall test version Windows 7/8/10,Linux | |||||||
Image Format | Support BMP、JPEG、PNG、GIF | |||||||
LCD panel | ||||||||
Panel size | 10.1" | |||||||
Resolution | 1280x800 | |||||||
Brightness (cd/m²) | 350 cd/m2 | |||||||
Response time | 15ms | |||||||
Contrast ratio | 700:1 | |||||||
View angle | 80°/80°/70°/70° (R/L/U/D) | |||||||
Touch panel | ||||||||
Touch Type | capacitive touch | |||||||
Touch Interface | USB | |||||||
Response time | <8ms | |||||||
Luminousness | 75-85% | |||||||
Power Supply | ||||||||
External Power Supply | AC 100 - 240V | |||||||
Working voltage | DC 12V | |||||||
Power consumption | ≤18W | |||||||
Operating Environment | ||||||||
Temperature range | operating: -10 to 60°C, storage :-20 to 70°C | |||||||
Relative humidity | 5%~95% @ 40° C, non-condensing | |||||||
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||||||
Packing Details | ||||||||
Accessories | Power adapter, Wifi antenna | |||||||
Other | ||||||||
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm | |||||||
2) provide Floor standing to support the PC | ||||||||
Certification | CE, FCC, ROHS | |||||||
Warranty | 1 year warranty | |||||||
Product Usage
Applications:
>Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment;
> Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
> Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy;
> Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; > Non-profit Organizations: Telecommunications, post offices, hospital, schools;
> Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
> Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course;
Packing&Shipping
Company Introduction
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC, CCC, ROHS, IP67, HDMI, and ISO9001. Bestview has won the favor of many customers from abroad. Bestview main partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios, etc. Bestview is famous for its professional product functions, high quality, and cost-effective. With the 14 years of professional R&D experience, we have accumulated many precious experiences and a good reputation. Bestview has already been a famous brand. The product has already applied to every photography field in the world, industry generation four, railway traffic, industry application, etc. The market has spread Europe, America, Southeast Asia, and other more than 60 countries.
Our Services & Strength
1. Any inquiry or question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have a professional engineer team to realize your idea.
3. To be our agent or distributor is well welcomed.
4. You can find the right product you want, whatever the most competitive price or Highest quality!
FAQ
1. How to pay?
For bulk order, it is better to pay by TT(HSBC), to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2. When can you get it?
For available model,after payment(or Deposit) received,sample need around 1-3days, quantity order need 15-20days.
OEM or ODM order, the lead time is negotiated.
3. How to get?
All items can be shipped by DHL, UPS, FedEx, EMS, BY AIR, BY SEA and so on ACCORDINGLY.
4. What’s the Warranty?
All products with a 1-year warranty, supply replacement or offer new parts according to our communication. For quantity and regular order, you may keep the RMA and after long time collection, ship the RMA back together, we offer to repair or replacement, or if you have your own engineer department, no need return back, we can send repair parts to you.
