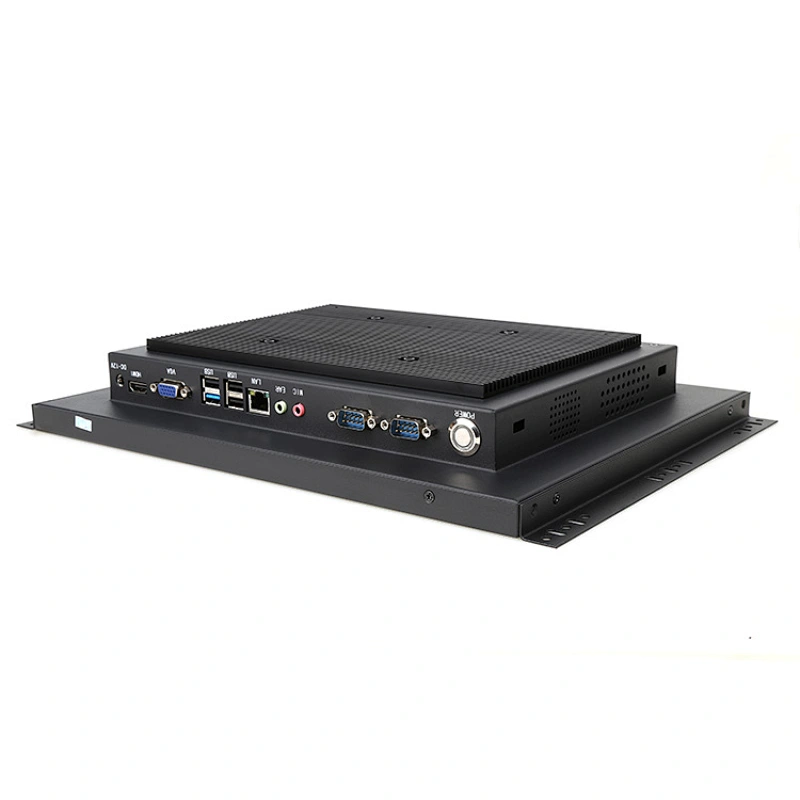

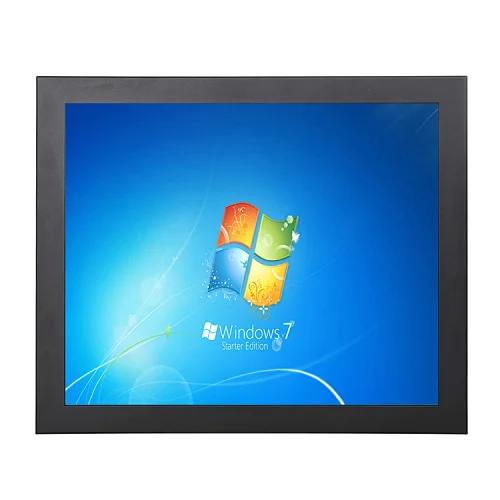

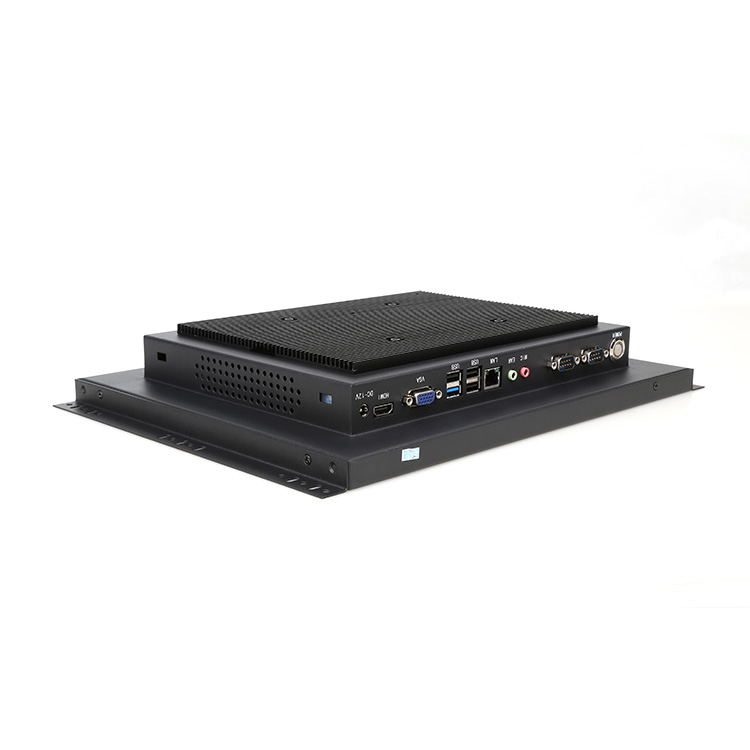

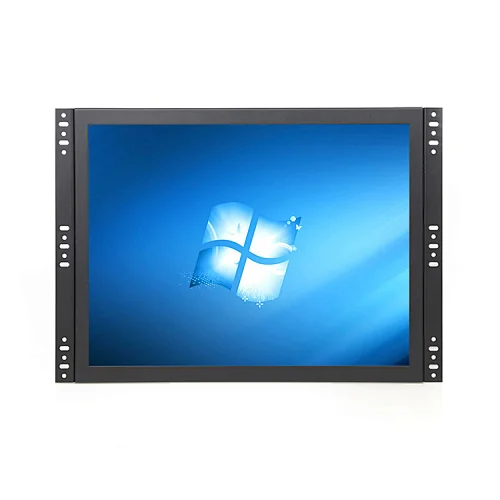

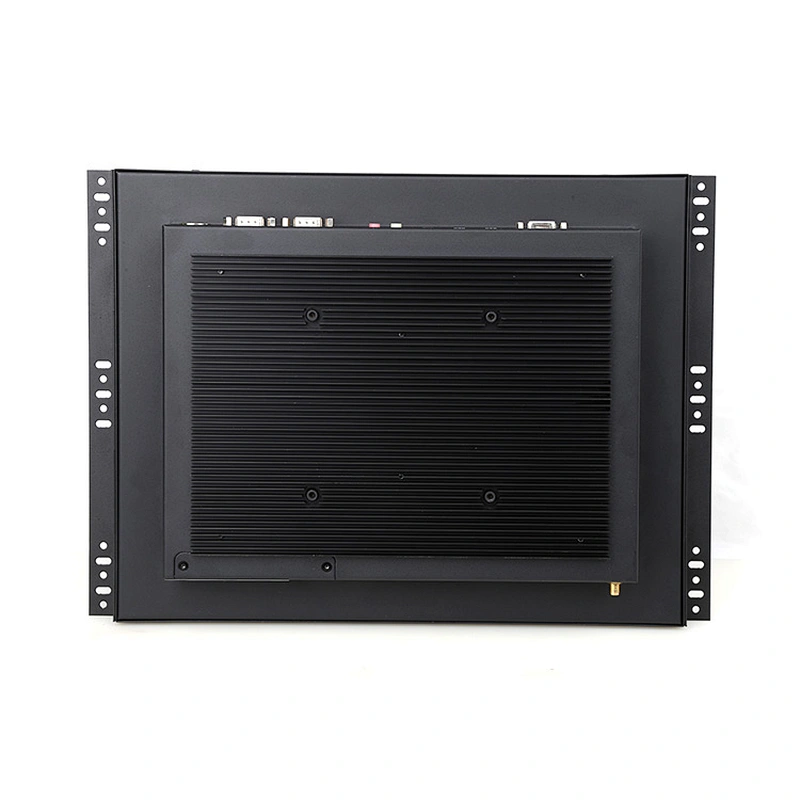

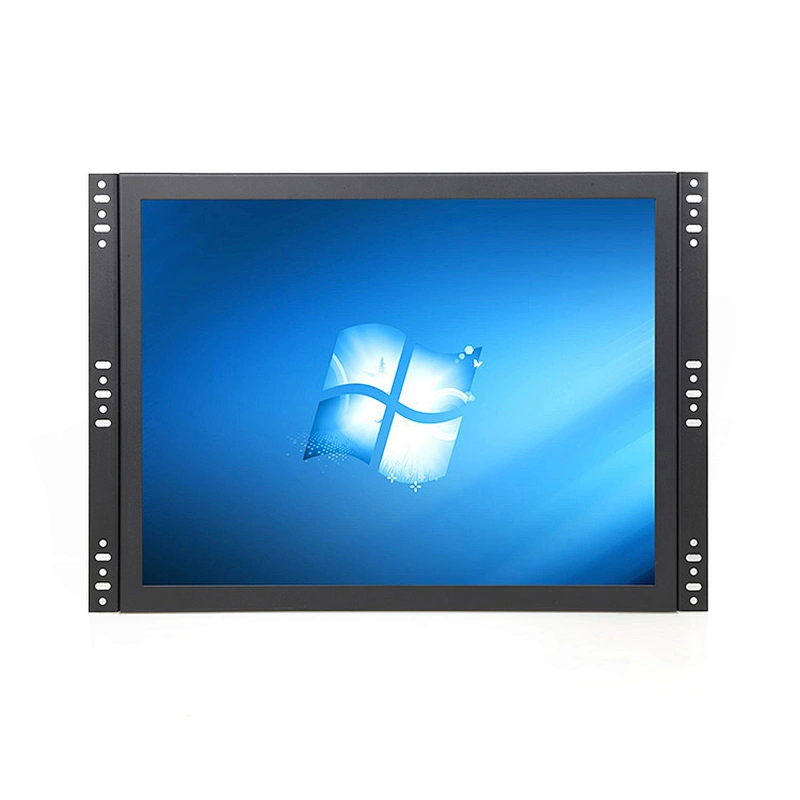

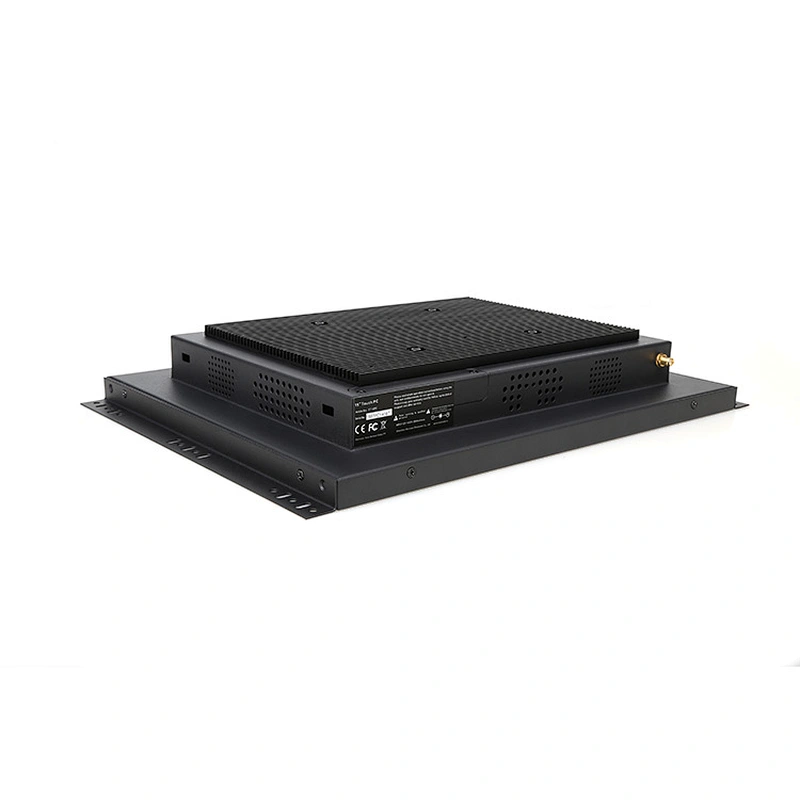

15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc
15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc
15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc
15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc
15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc
15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc

15 inch industrial grade panel pc metal cabinet open frame resistive touch screen pc

Model NO.:
YT15PC-R
Product Catalogue

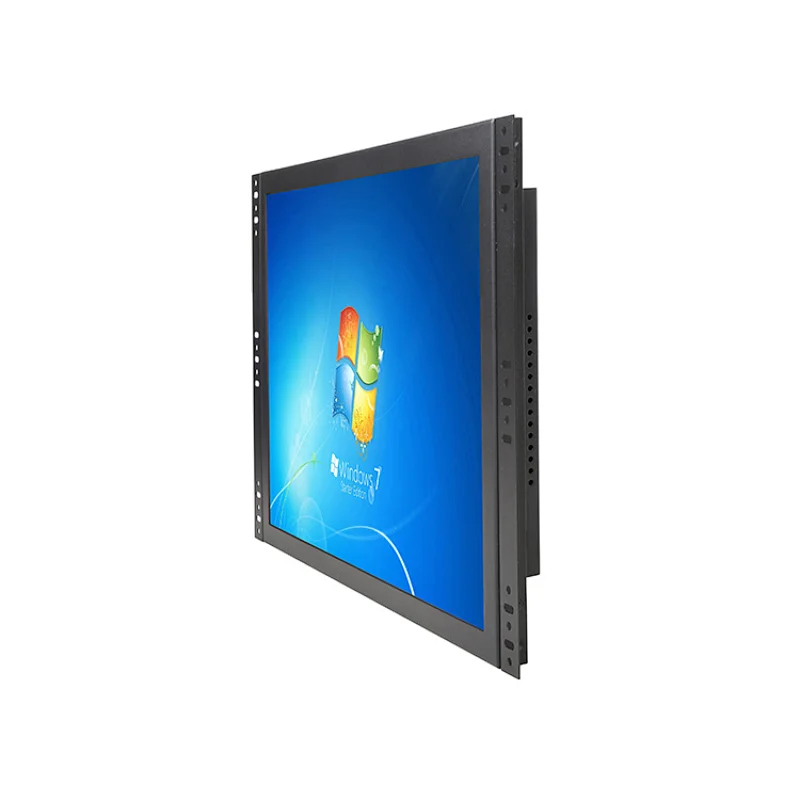

Details Images

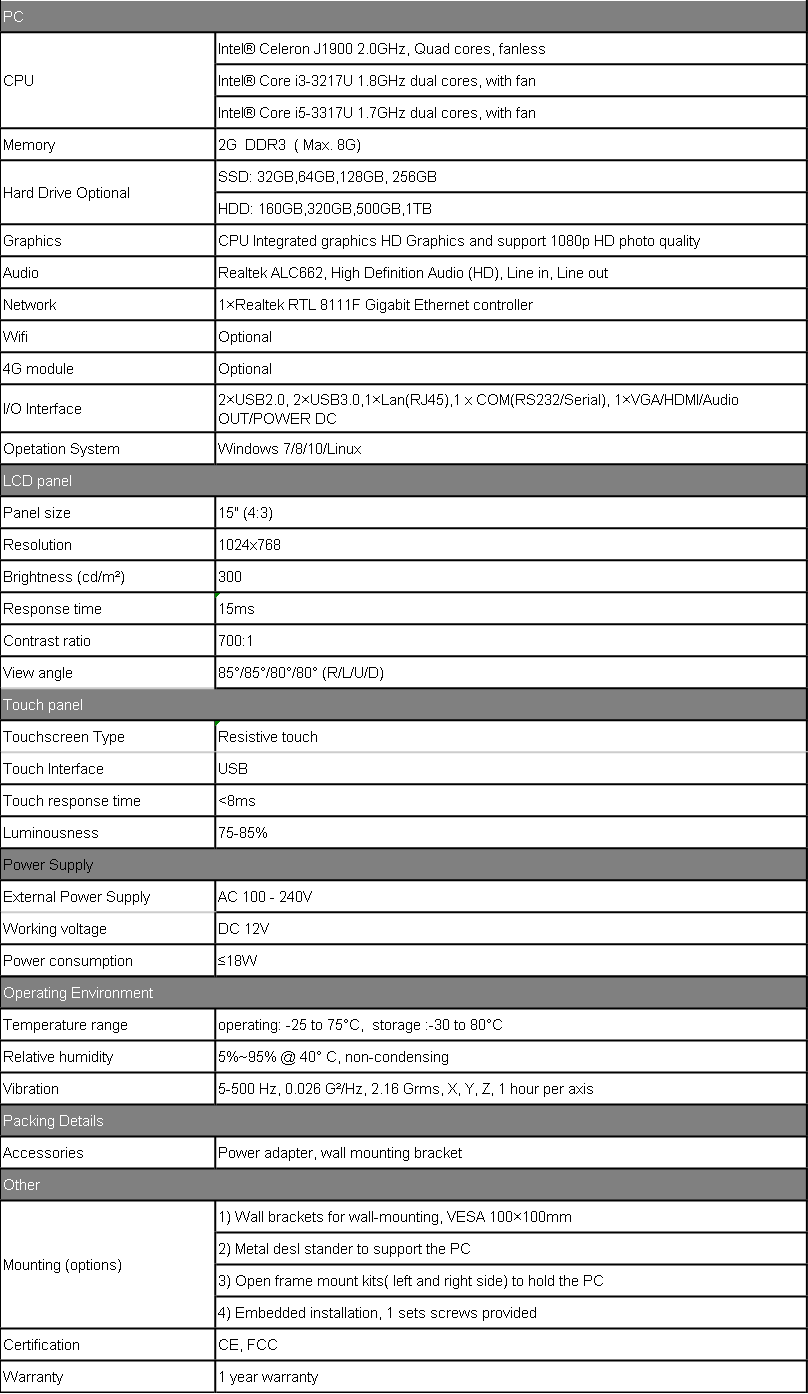

Products Description
PC
CPU
on board Intel® Celeron J1900 2.0GHz quad cores,fanless
CPU optional
Inter® Core i3-3217, dual core, 1.8Ghz / i5-3317U, dual core, 1.7Ghz
Inter® Core i3 6100U 2.3Ghz / 7100U 2.4Ghz
Inter® Core i5 6200U 2.3Ghz,up to 2.8Ghz / 7200U 2.5Ghz,up to 3.1Ghz
Memory
2G DDR3 ( Max. 16G)
Hard Drive Capacity
32G SSD or 320G HDD
Hard Drive Optional
SSD: 32GB,64GB,128GB, 256GB
HDD: 320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
Built-in W-Lan Antenna(802.11b/g/n)

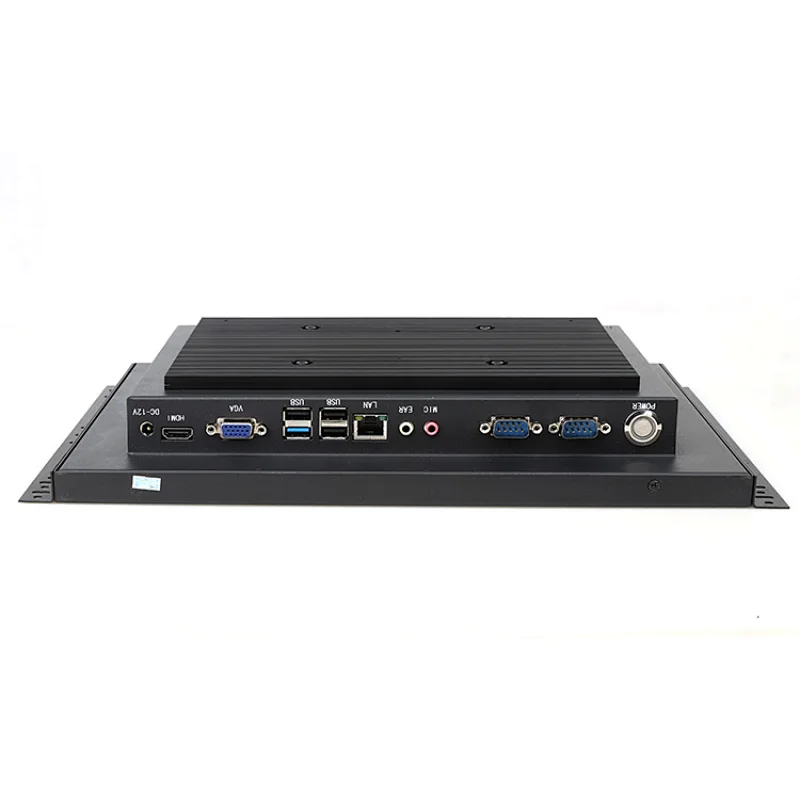

I/O Interfaces
2×USB2.0, 2×USB3.0,1×Lan(RJ45),2 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC; 6xCOM (5xRS232,1xRS485) optional
Extension interface
Mini-PCIE, support WIFI/3G/4G/MSTA
Operation System
Windows 7/8/10 test version (with license optional), Ubuntu, Linux optional
LCD panel
Panel size
15"(4:3)
Display Area
304.128 (H) x 228.096(V)
Resolution
1024*768
Brightness (cd/m²)
350cd/m2, high brightness 500~1500cd/m2 optional
Response time
8ms
Contrast ratio
700:1
View angle
80°/80°/75°/80° (R/L/U/D)
Touch panel
Touchscreen Type
Resistive touch
Touch Interface
USB
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤30W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, wall mounting bracket
Other
Mounting (options)
1) Wall brackets for wall-mounting, VESA 100×100mm
2) Metal desl stander to support the PC
3) Embedded installation, 1 sets screws provided
Certification
CE, FCC
Warranty
1 year warranty
Product packaging
