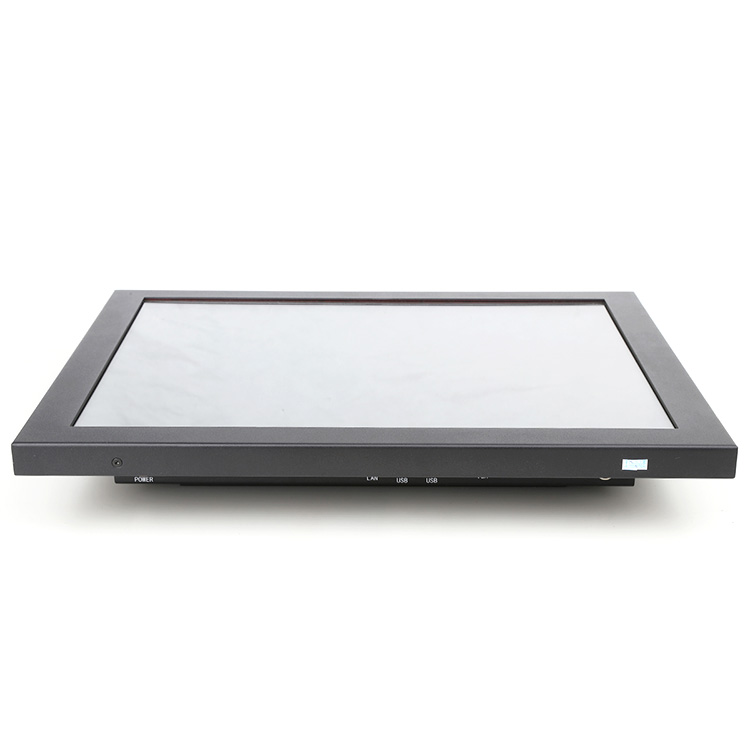

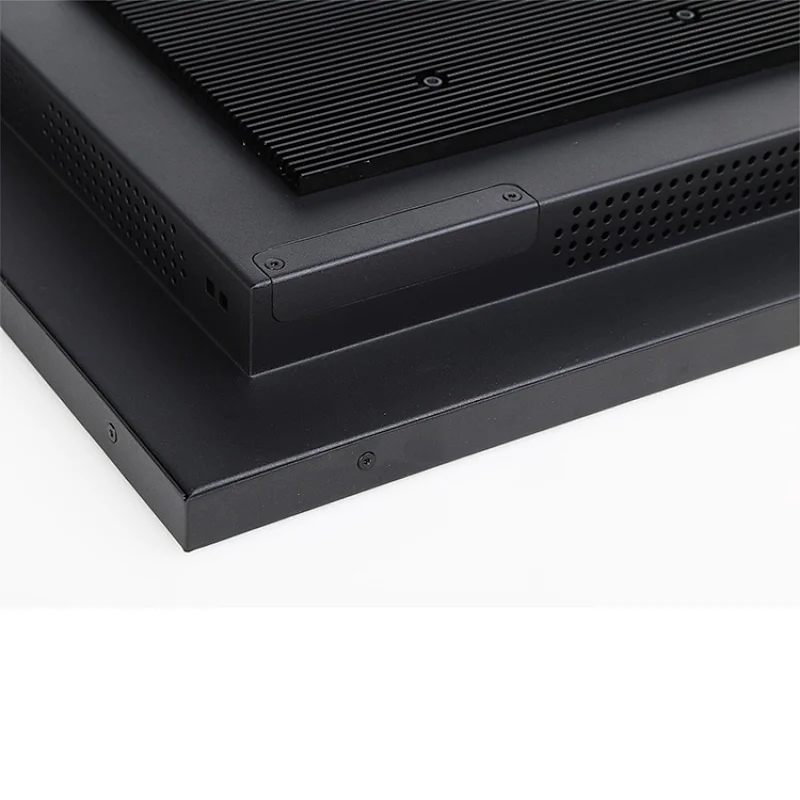

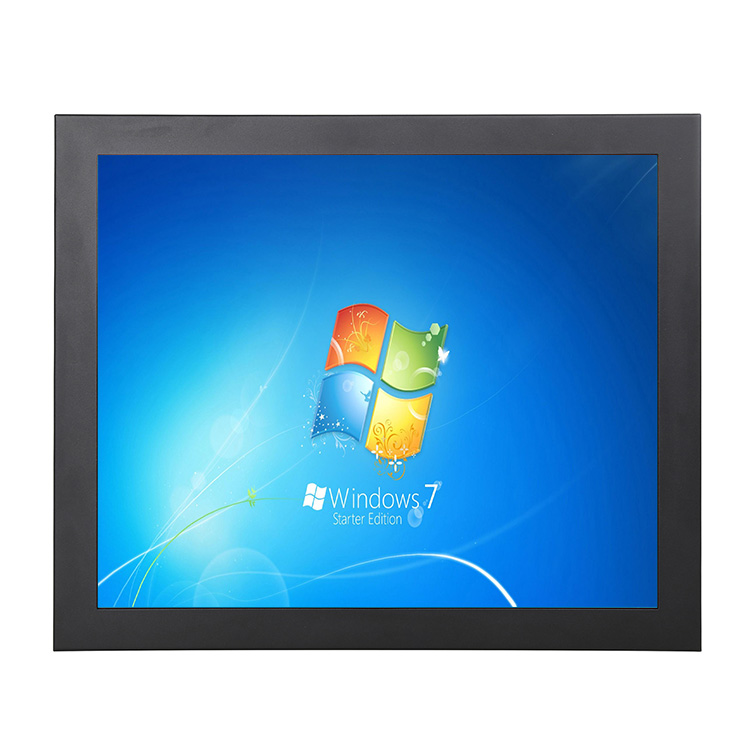

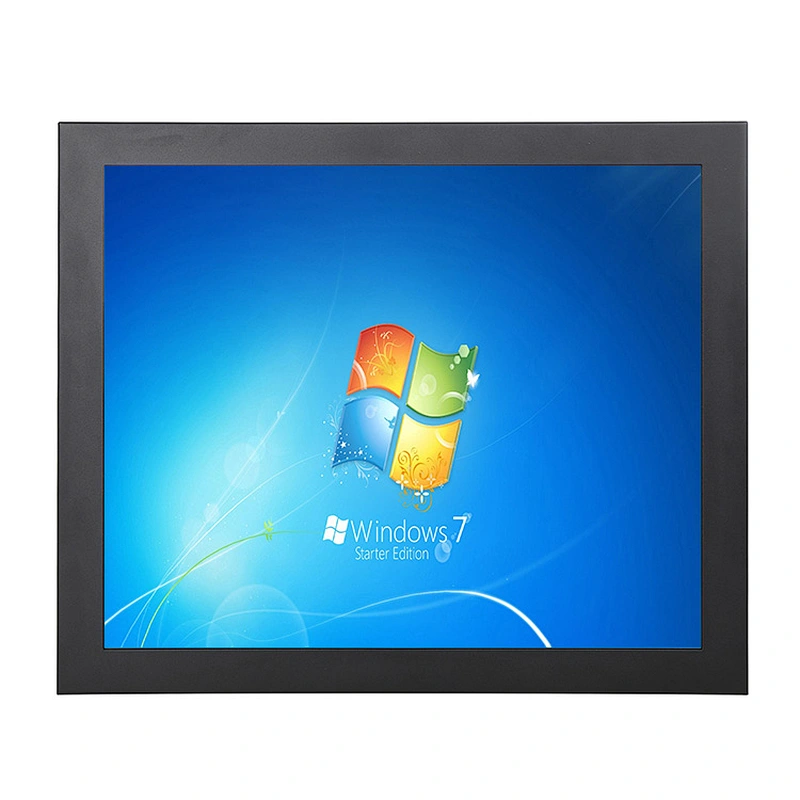

17 inch ip66 fanless aluminium industrial touch computer resistive touch pc for gaming using desktop

Model NO.:
YT17PC-R
Min order:
1 piece
Supply Ability:
3000 piece / Month
Country of Origin:
Shenzhen
Stock Time:
15 Days
Product Catalogue

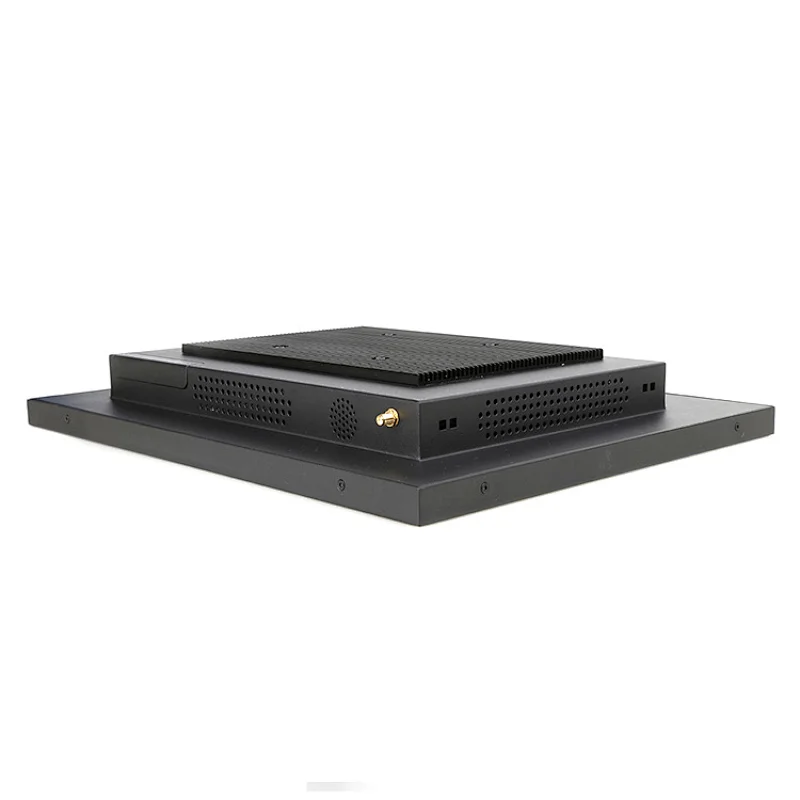

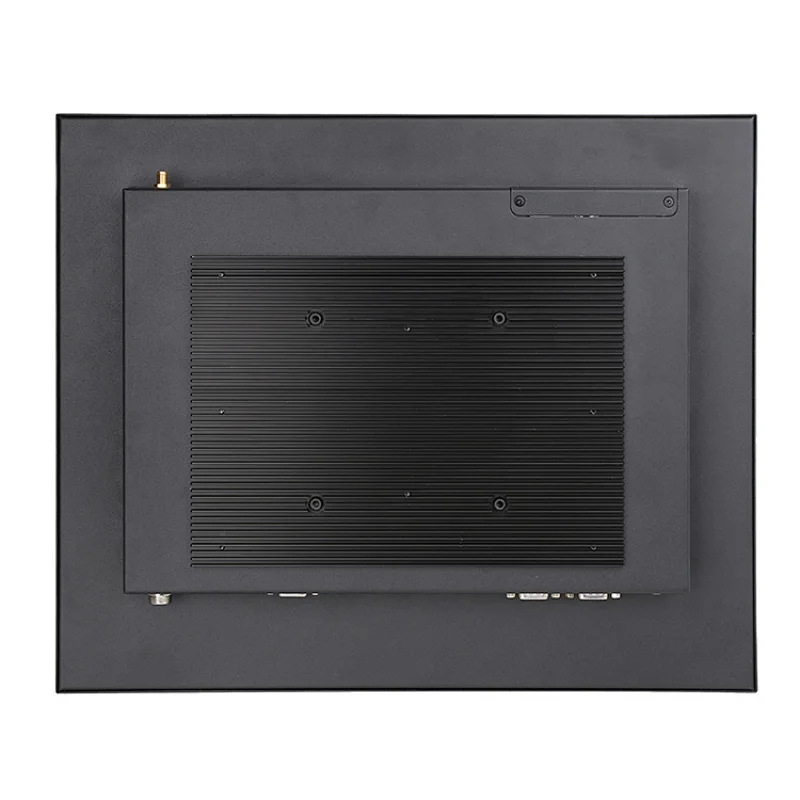

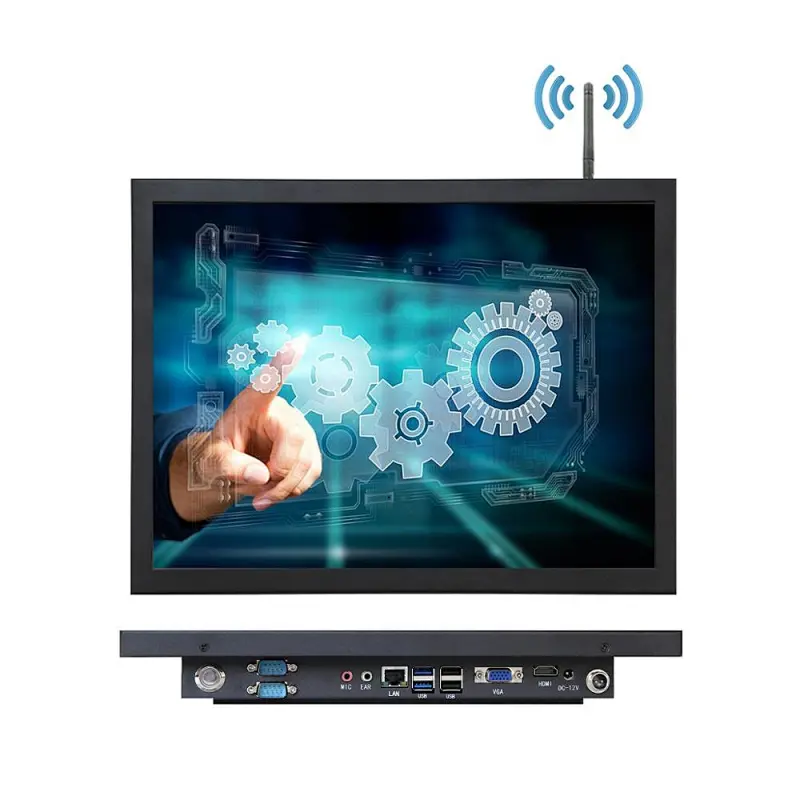

Details Images

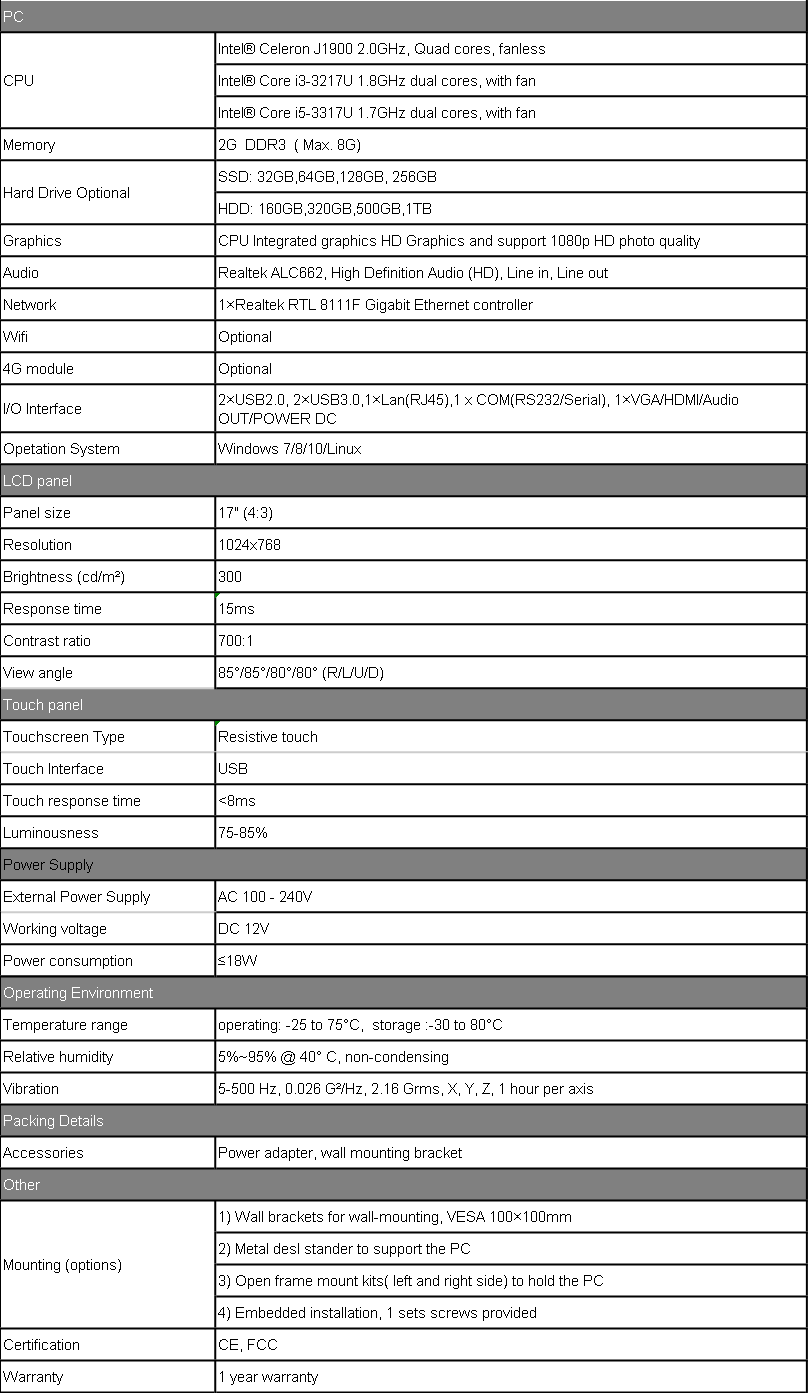

Products Description
PC
CPU
Intel® CeleronJ1900 2.0GHz Quad cores
(Core i3 6100U 2.3Ghz/7100U 2.4Ghz),
Core i5 6200U 2.3Ghz,up to 2.8Ghz /7200U 2.5Ghz,up to 3.1Ghz)
Core i7-6500U 2.5Ghz,up to 3.1Ghz/7500U, 2.7Ghz,up to 3.5Ghz)
Memory
2GB DDR3, MAX to 16G
Hard Drive Capacity
32G SSD
Hard Drive Optional
SSD: 32GB,64GB,128GB,256GB
HDD: 320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111F Gigabit Ethernet controller
Wireless Network
WIFI optional

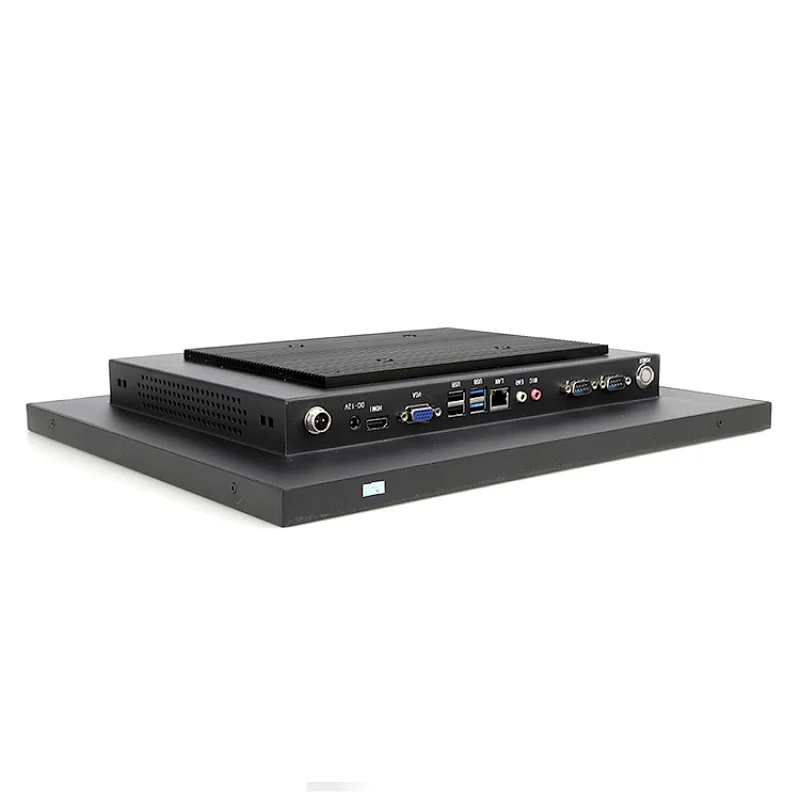

I/O Interface
Standard: 2×USB2.0, 2×USB3.0, 1×Lan(RJ45), 2 x COM(RS232),1×VGA/HDMI/Audio OUT/POWER DC (2xLAN,5xRS232,1xRS485 optional)
LCD panel
Panel size
17"(4:3)
Display Area
337.92(W)×270.336(H) mm
Resolution
1280*1024
Brightness (cd/m²)
350cd/m2, 1000cd/m2 sunlight readable optional
Response time
<10ms
Contrast ratio
1000:1
View angle
85°/85°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type
4 wires resistive touch, 5 wires resistive touch/ 10 points capacitive touch
Touch Interface
USB
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤50W
Operating Environment
Temperature range
operating: -10 to 60°C, storage :-20 to 70°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight
5.8kg
Gross weight
6.5kg
Accessories
Power adapter, USB touch CD drive, touch pen, wall mounting bracket optical
Other
Case/Bezel
Metal case; IP66 front bezel, Aluminum case optional
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
3) Screws for embedded
Certification
CE, FCC
Warranty
1 year warranty
Product packaging
Company Profile
Company Profile
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.

Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc. The market has spread Europe, America, Southeast Asia and other more than 60 countries.
FAQ
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
4.What’s the Warranty?
All products with 1year warranty, supply replacement or offer new parts according to our communication.
For quantity and regular order,you may keep the RMA and after long time collection,ship the RMA back together,we offer repair or
replacement,or if you have your own engineer department, no need return back,we can send repair parts to you
