17 inch win10 Linux touch screen industrial Panel pc Open Frame Industrial Embedded All in One touch screen PC
17 inch win10 Linux touch screen industrial Panel pc Open Frame Industrial Embedded All in One touch screen PC
17 inch win10 Linux touch screen industrial Panel pc Open Frame Industrial Embedded All in One touch screen PC
17 inch win10 Linux touch screen industrial Panel pc Open Frame Industrial Embedded All in One touch screen PC
17 inch win10 Linux touch screen industrial Panel pc Open Frame Industrial Embedded All in One touch screen PC

17 inch win10 Linux touch screen industrial Panel pc Open Frame Industrial Embedded All in One touch screen PC

Model NO.:
YT17PC-C
Min order:
1 piece
Supply Ability:
3000.0 piece / Month
Country of Origin:
Shenzhen / hongkong
Product Description

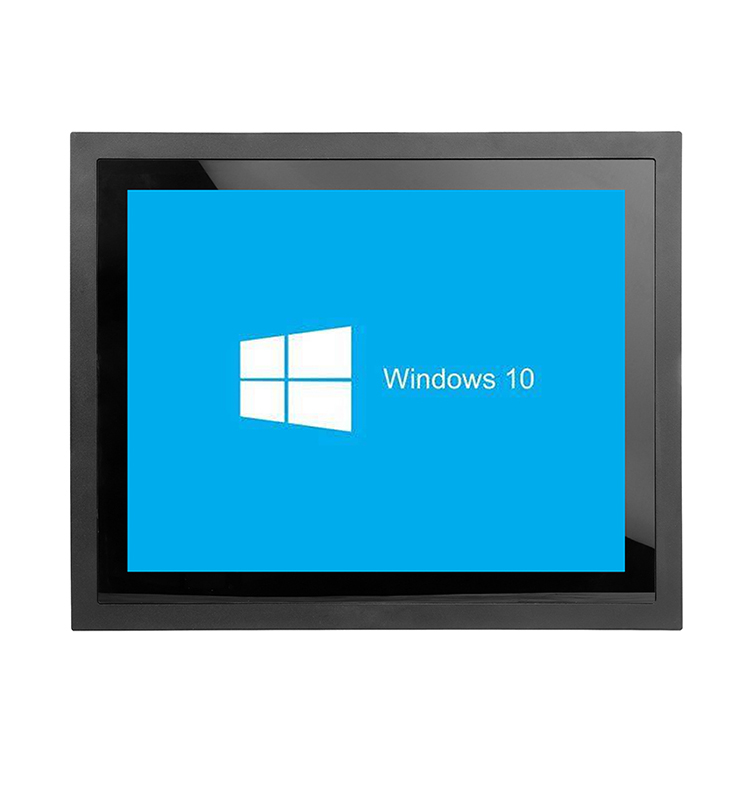

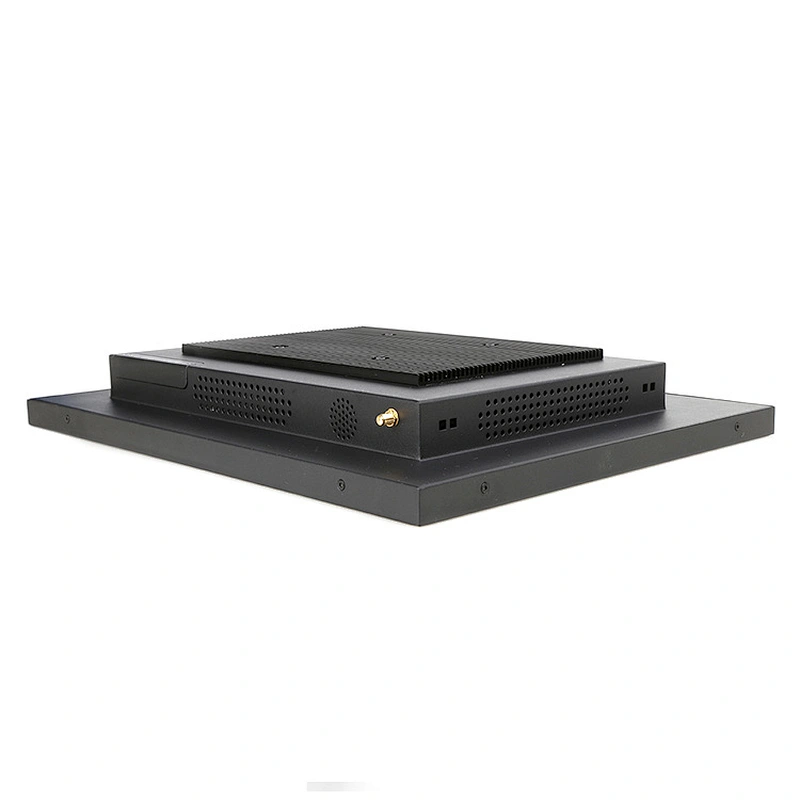

17 inch industrial flat touch screen all in one panel pc with IP65 front case
LCD panel( IPS screen)

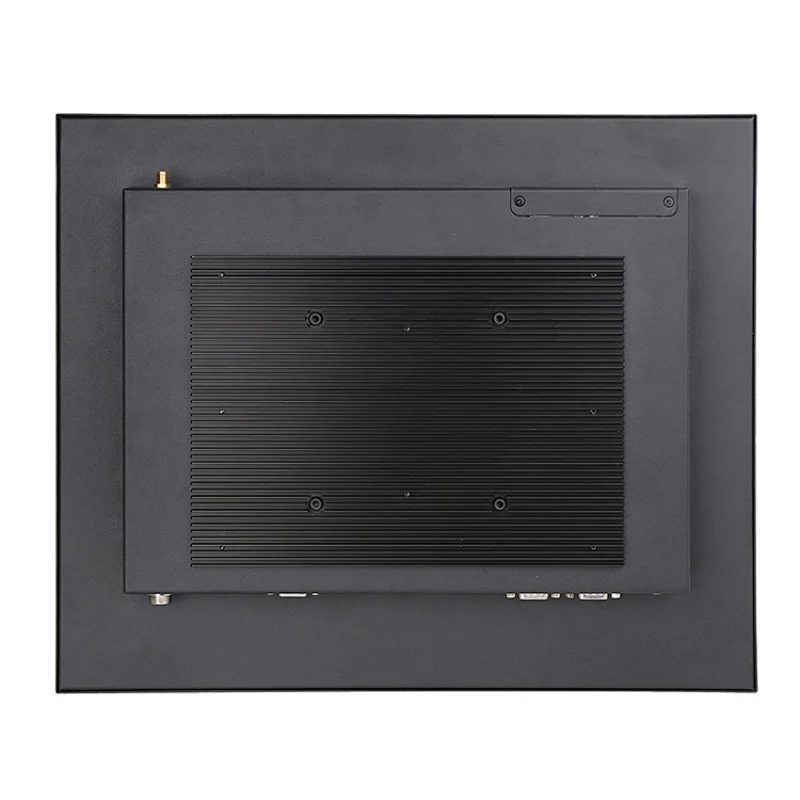

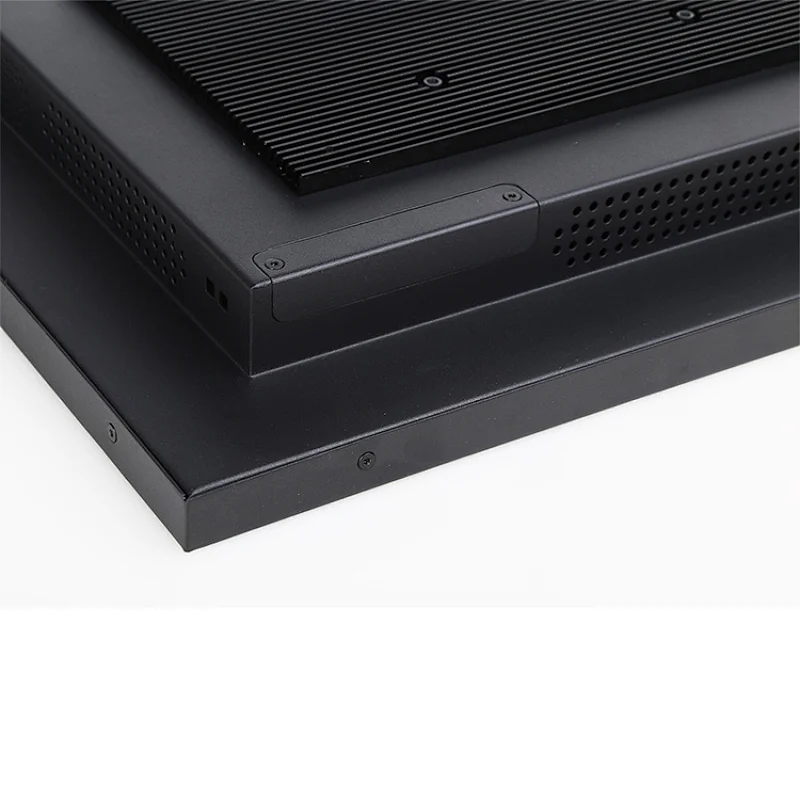

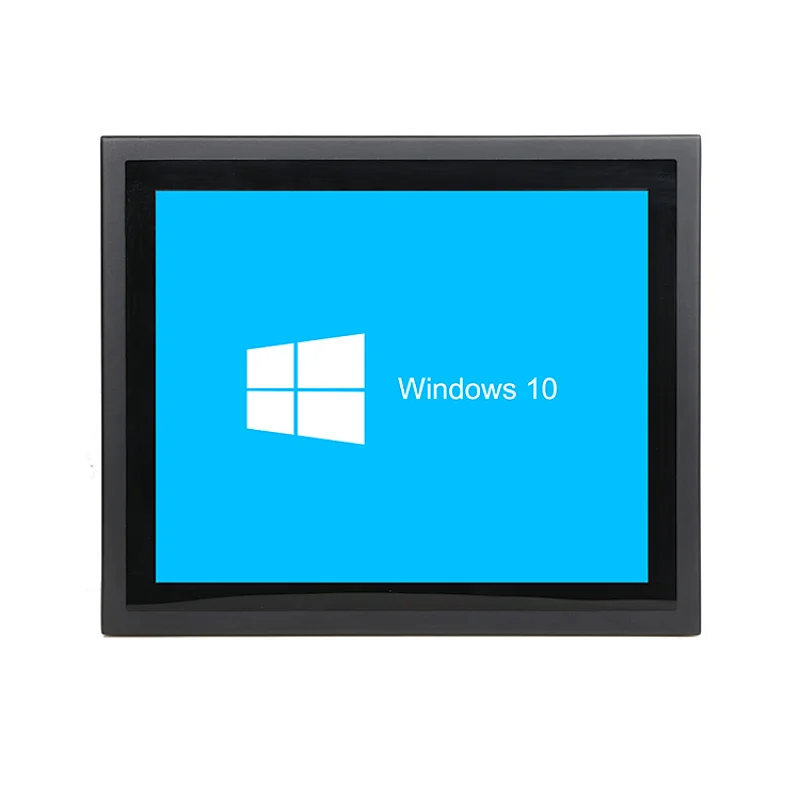

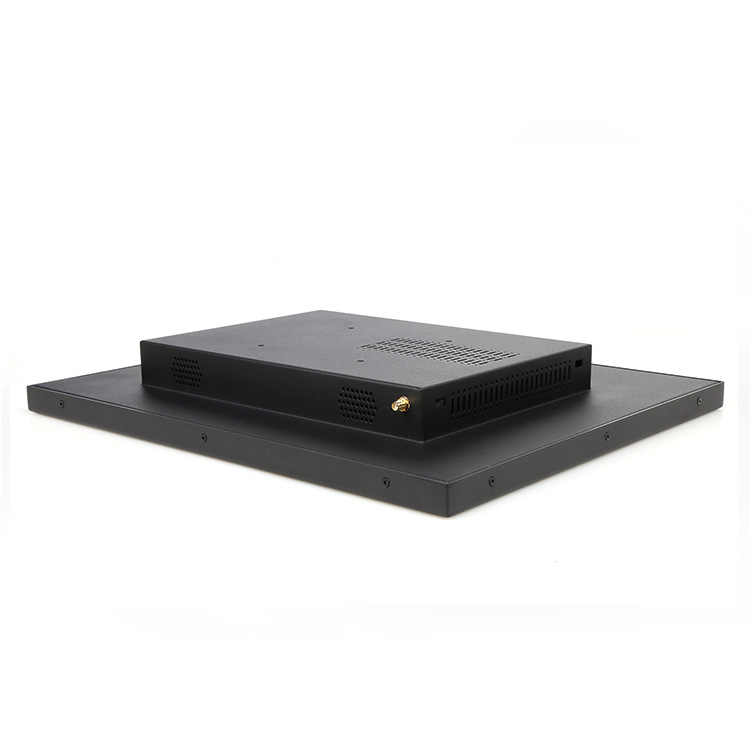

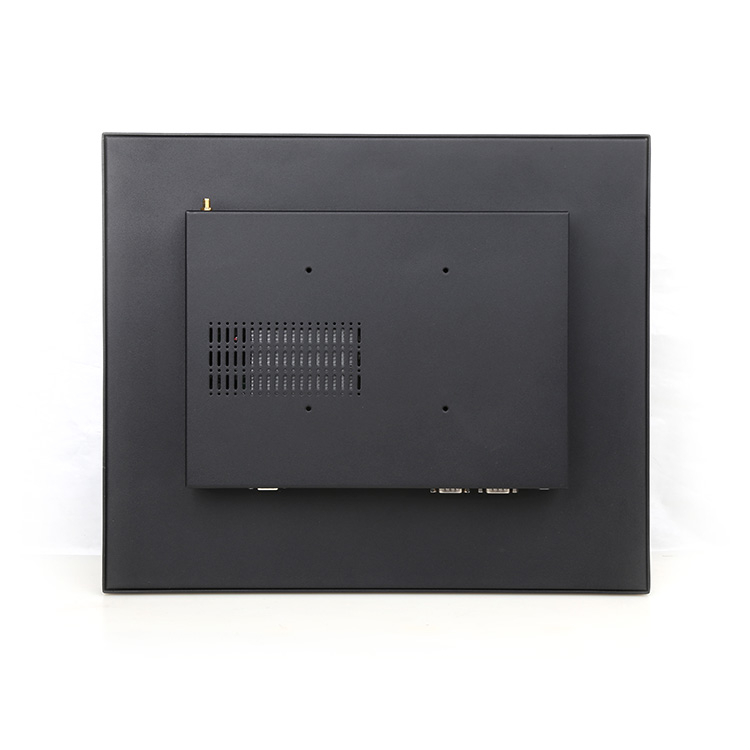

17 inch Metal case all in one Panel PC (YT17PC)
PC
CPU
Intel® Celeron J1900 2.0GHz quad cores( Core i3, Core i5 optional)
Memory
2G DDR3, ( Max. 8G)
Hard Drive Capacity
32G SSD or 320G HDD
Hard Drive Optional
SSD: 16GB,32GB,64GB,128GB,160GB
HDD: 160GB,320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
WIFI optional

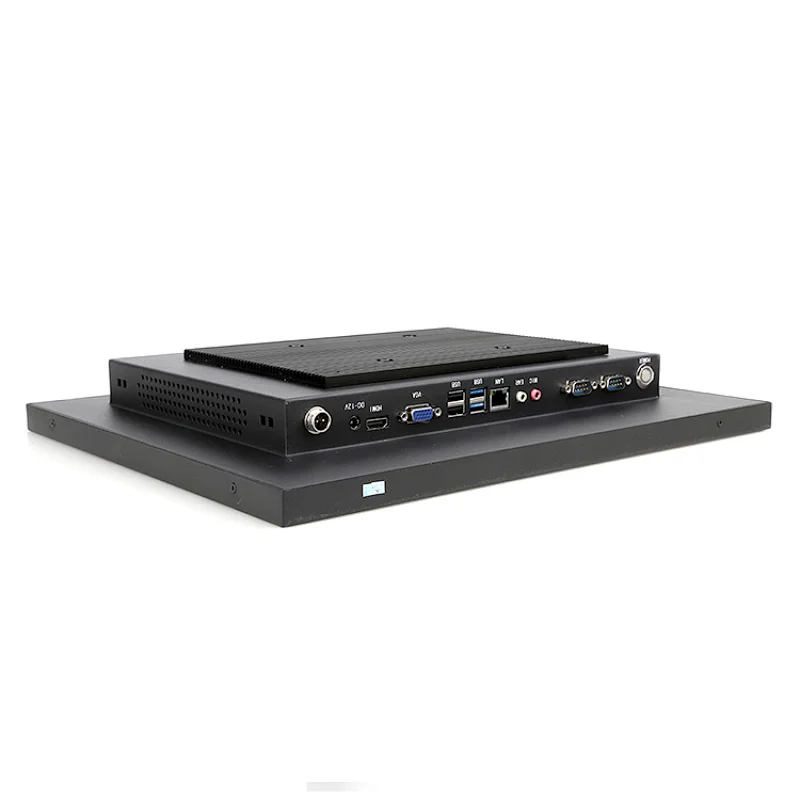

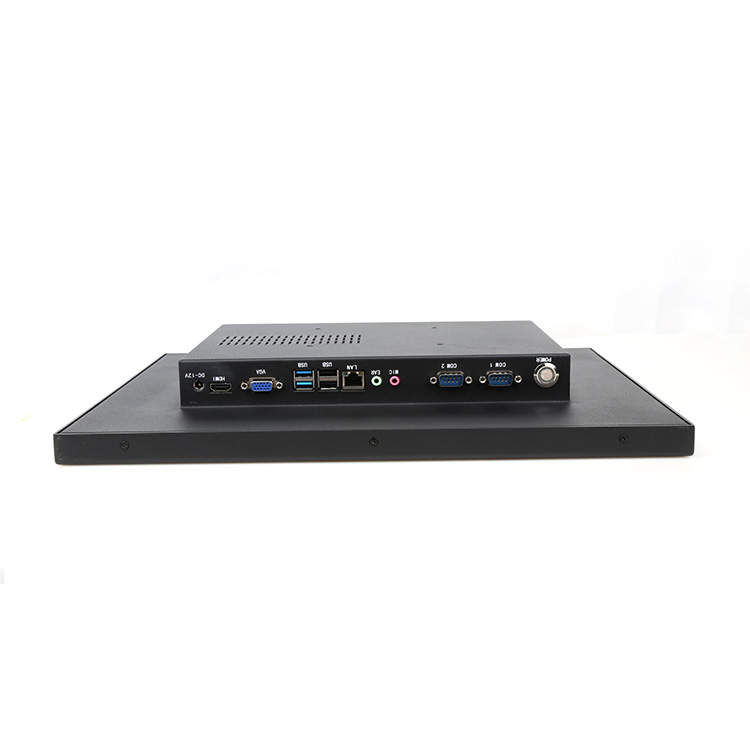

I/O Interface
2×USB2.0,2xUSB3.0,1×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC
Opetation System
Preinstall test version Windows 7/8/10,Linux
LCD panel
Panel size
17"
Resolution
1280*1024
Brightness (cd/m²)
300
Response time
15ms
Contrast ratio
700:1
View angle
85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type
capacitive touch for optional
Touch Interface
USB
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -25 to 75°C, storage :-30 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight
7kg
Gross weight
10kg
Accessories
Power adapter, USB touch CD drive, touch pen, wall mounting bracket
Other
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Certification
CE, FCC
Warranty
1 year warranty
Product Usage
Packing&Shipping
Company Introduction
Bestview is the manufacture specialized for industrial touchscreen monitor,
open frame/rack mount monitor, industrial AIO panel pc, IP65 waterproof monitor, Field/broadcast monitor

Our Services & Strength

1.Your any inquiry or question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize
your idea.
3.To be our agent or distributor is well welcomed.
4.You can find the right product you want,whatever the most competitive price or Highest quality!
FAQ
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY
