- CPU:Core i3, Dual core,1.8Ghz,fan
- Panel:17 inch lcd panel
- Resolution:1024*768
- Touch type:capacitive touch(10 points)
- brightness:400nits
- Contrast ratio:1000:1
- I/O interface:2xUSB2.0,2xLan,2 x COM(RS232,1xVGA/Audio OUT/POWER DC
- warranty:1 year
- Certification:CE,FCC
- Memory Capacity:8GB
- Products Status:New
- Warranty(Year):1-year
- Graphics Card Type:Integrated Card
- Widescreen:no
- Certification:FCC
- Certification:ce
- Interface Type:DVI
- Interface Type:HDMI
- Interface Type:VGA
- Interface Type:usb
- Color:Black
- Display Type:LCD
- Processor Brand:Intel
- Display Ratio:16:9
- Plugs Type:US
- Plugs Type:CN
- Plugs Type:AU
- Plugs Type:UK
- Plugs Type:EU
- Hard Drive Type:SSD+HDD
- Operating System:Windows 10
- Processor Type:Intel Core
- Graphics Card Chipset:Integrated Card
- Processor Series:Intel CoreM
- Video Memory:64GB
- After-sales Service:Free spare parts
- After-sales Service:Return and Replacement
- After-sales Service:Repair
- After-sales Service:Others
- Place of Origin:CN
- Processor Main Frequency:2.4Ghz
- Model Number:YT17PC
- Optical Drive Type:optional
- Brand Name:Bestview/OEM
- Video Card:Other
Related Products
Product Description

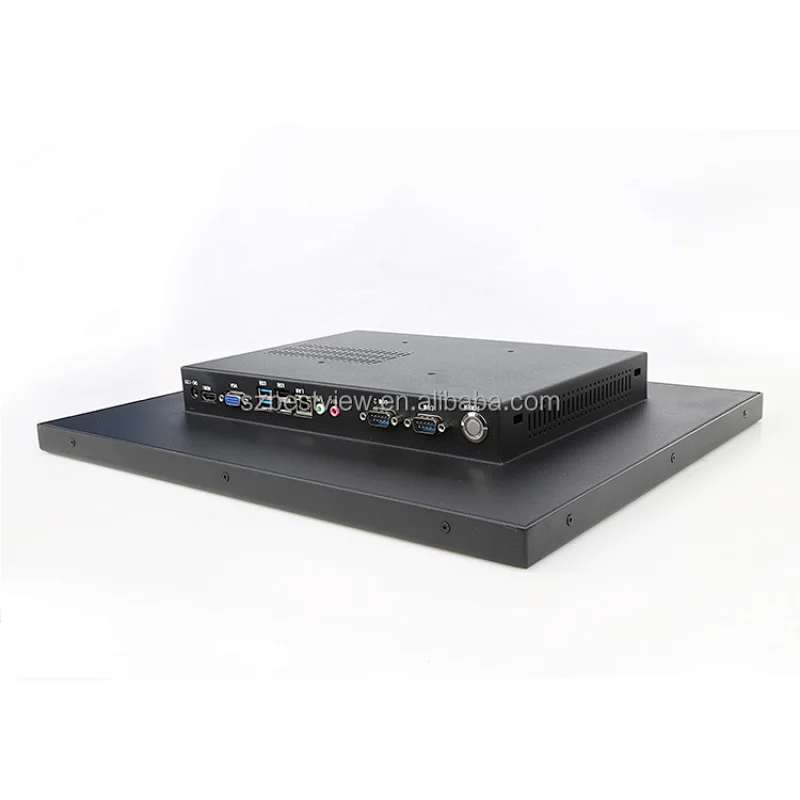

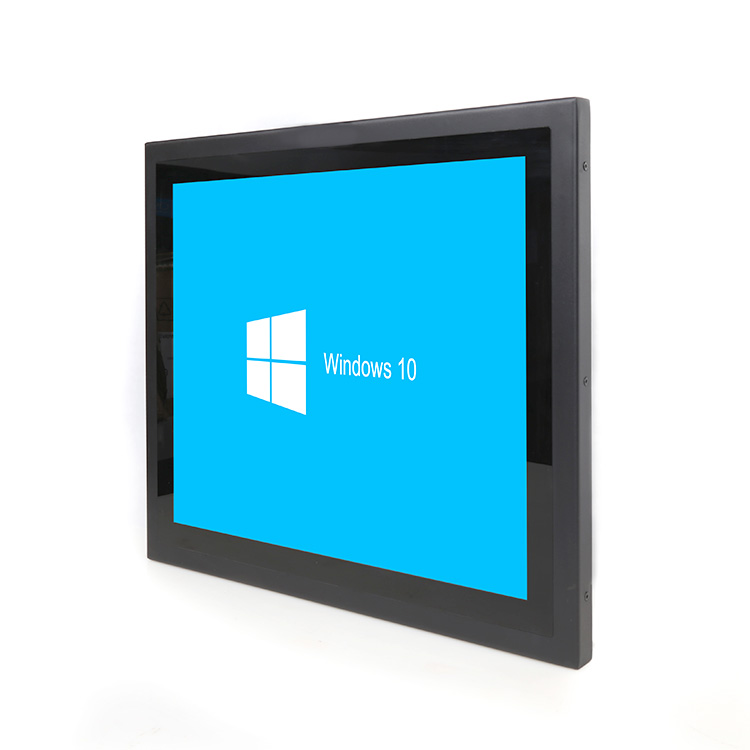

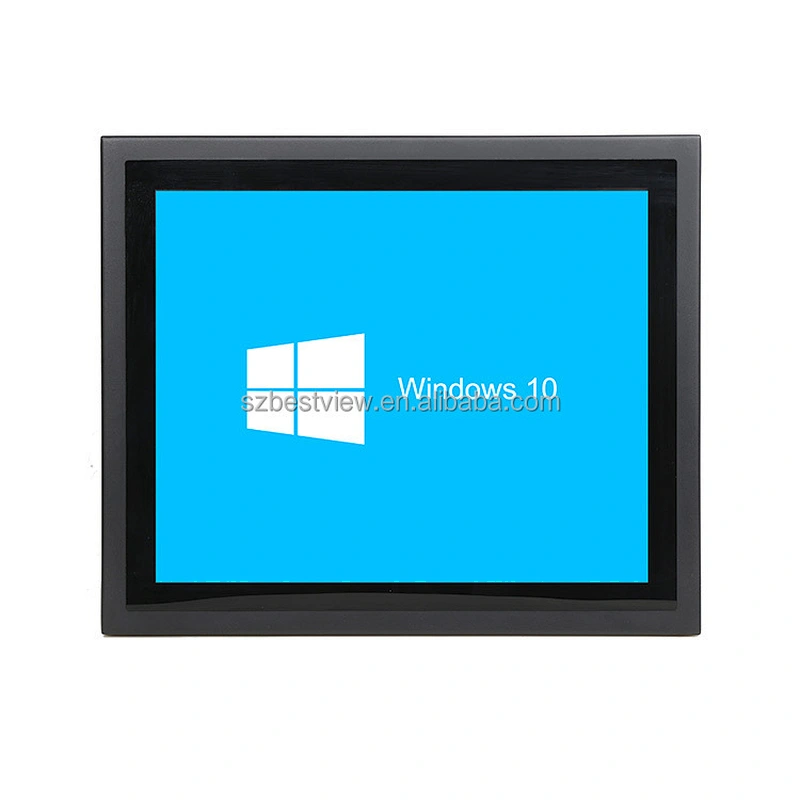

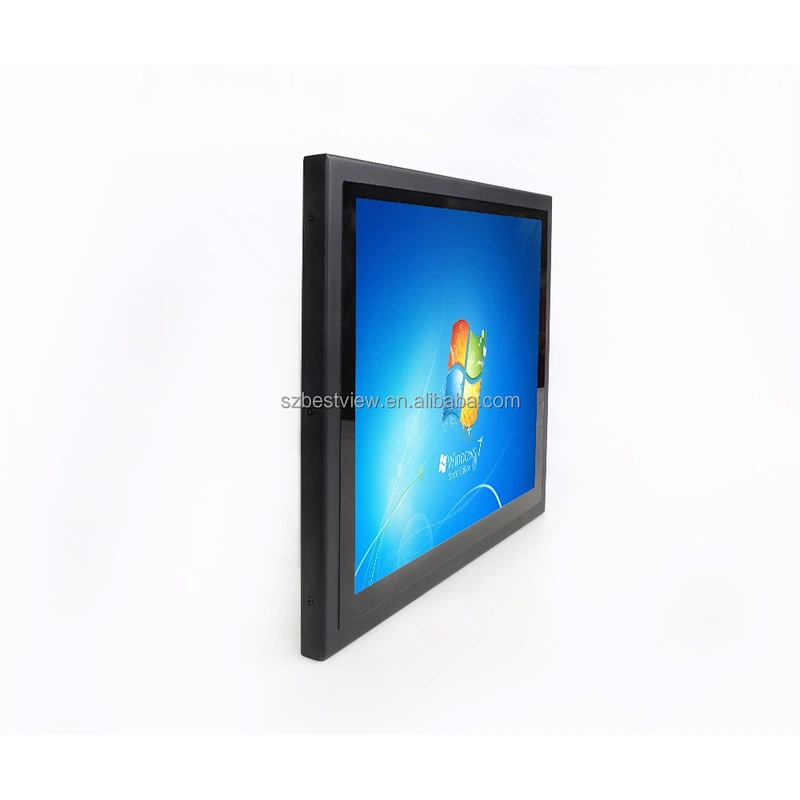

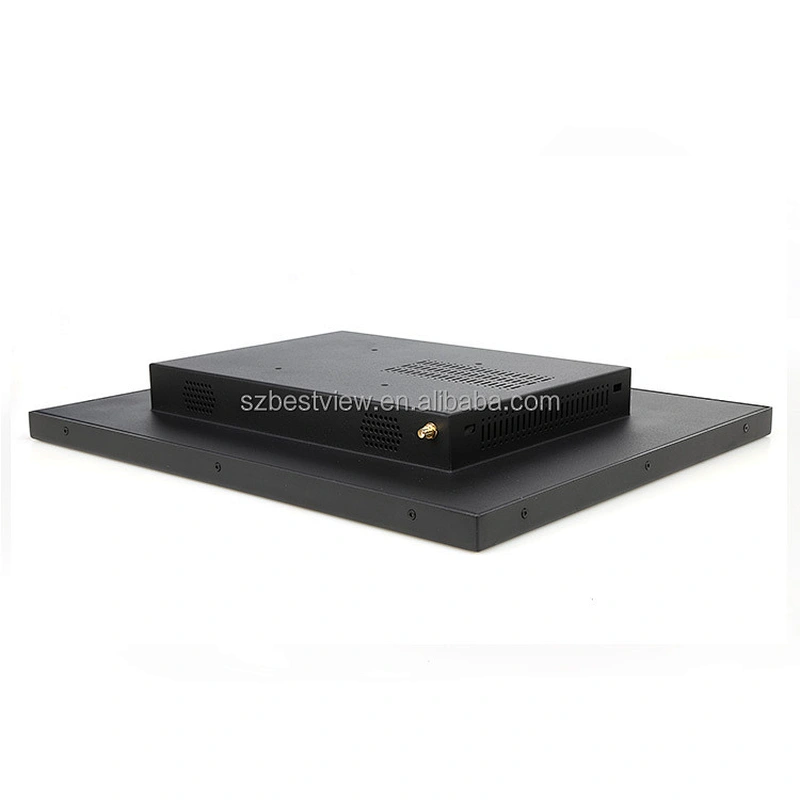

17 inch Metal case industrial all in one Panel PC (YT15PC-R) | ||
PC | ||
Intel® Celeron J1900 2.0GHz dual cores, fanless( Core i3, Core i5 optional) | ||
Memory | 2G DDR3, ( Max. 8G) | |
Hard Drive Capacity | 32G SSD or 320G HDD | |
SSD: 16GB,32GB,64GB,128GB,160GB | ||
HDD: 160GB,320GB,500GB,1TB | ||
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller | |
Wireless Network | WIFI optional | |

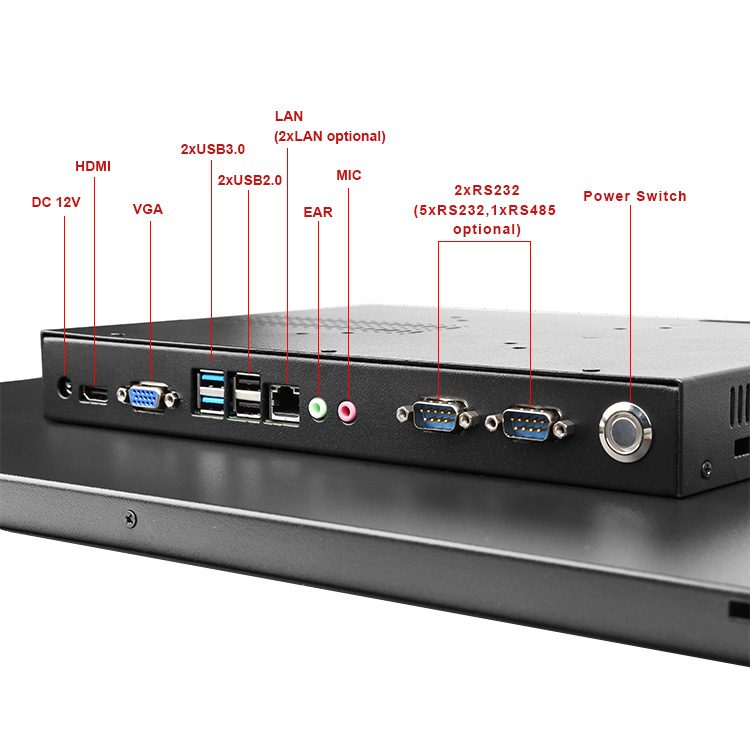

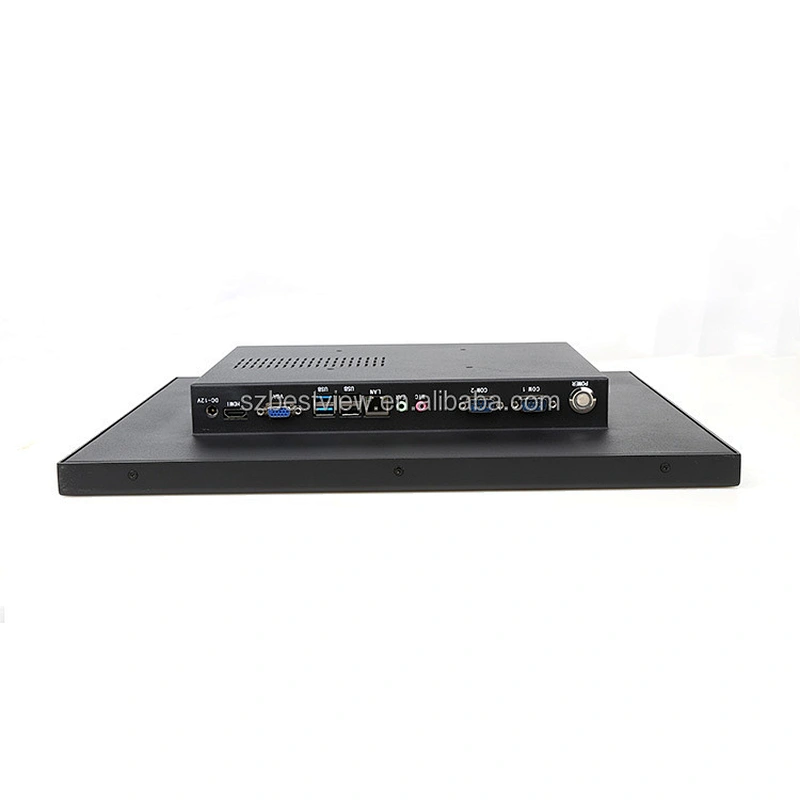

I/O Interface | 2×USB2.0,2×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC | |
Opetation System | Preinstall test version Windows 7 | |
LCD panel | ||
Panel size | 17"(4:3) | |
Resolution | 1280*1024 | |
Brightness (cd/m²) | 300 | |
Response time | 15ms | |
Contrast ratio | 500:1 | |
View angle | 80°/80°/70°/70° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | 4 wires resistive touch( 5 wires resistive ,capacitive touch for optional) | |
Touch Interface | USB (RS232 optional) | |
Touch response time | <8ms | |
Luminousness | 75-85% | |
Power Supply | ||
External Power Supply | AC 100 - 240V | |
Working voltage | DC 12V | |
Power consumption | ≤18W | |
Operating Environment | ||
Temperature range | operating: -25 to 75°C, storage :-30 to 80°C | |
Relative humidity | 5%~95% @ 40° C, non-condensing | |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
Packing Details | ||
Net weight | 5kg | |
Gross weight | 5.5kg | |
Accessories | Power adapter, USB touch CD drive, touch pen, wall mounting bracket | |
Other | ||

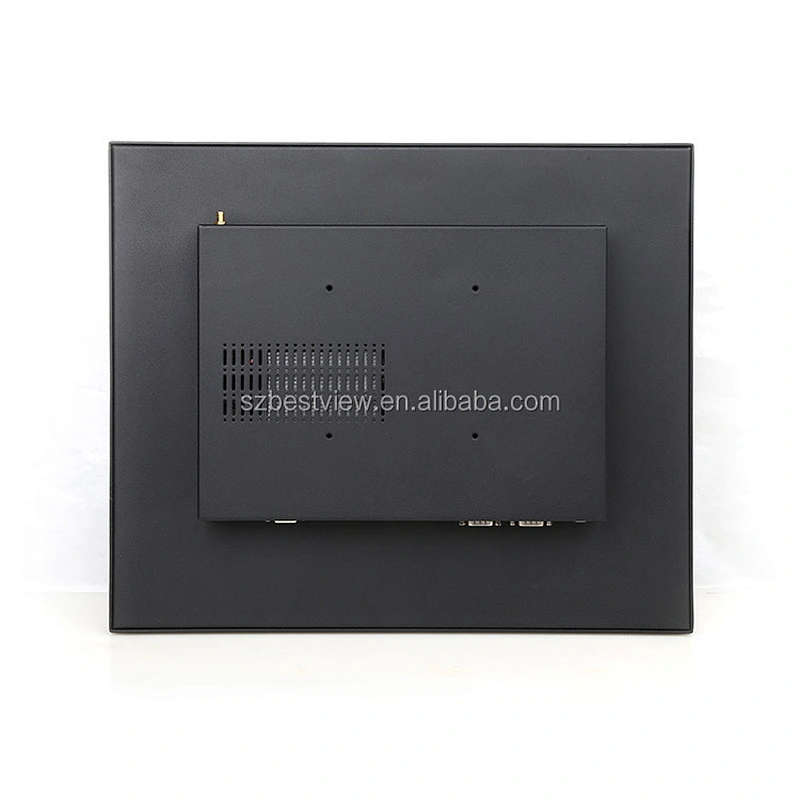

1) provide wall brackets for wall-mounting, VESA 100×100mm | ||
2) provide stable metal holder to support the monitor | ||
Certification | CE, FCC | |
Warranty | 1 year warranty | |

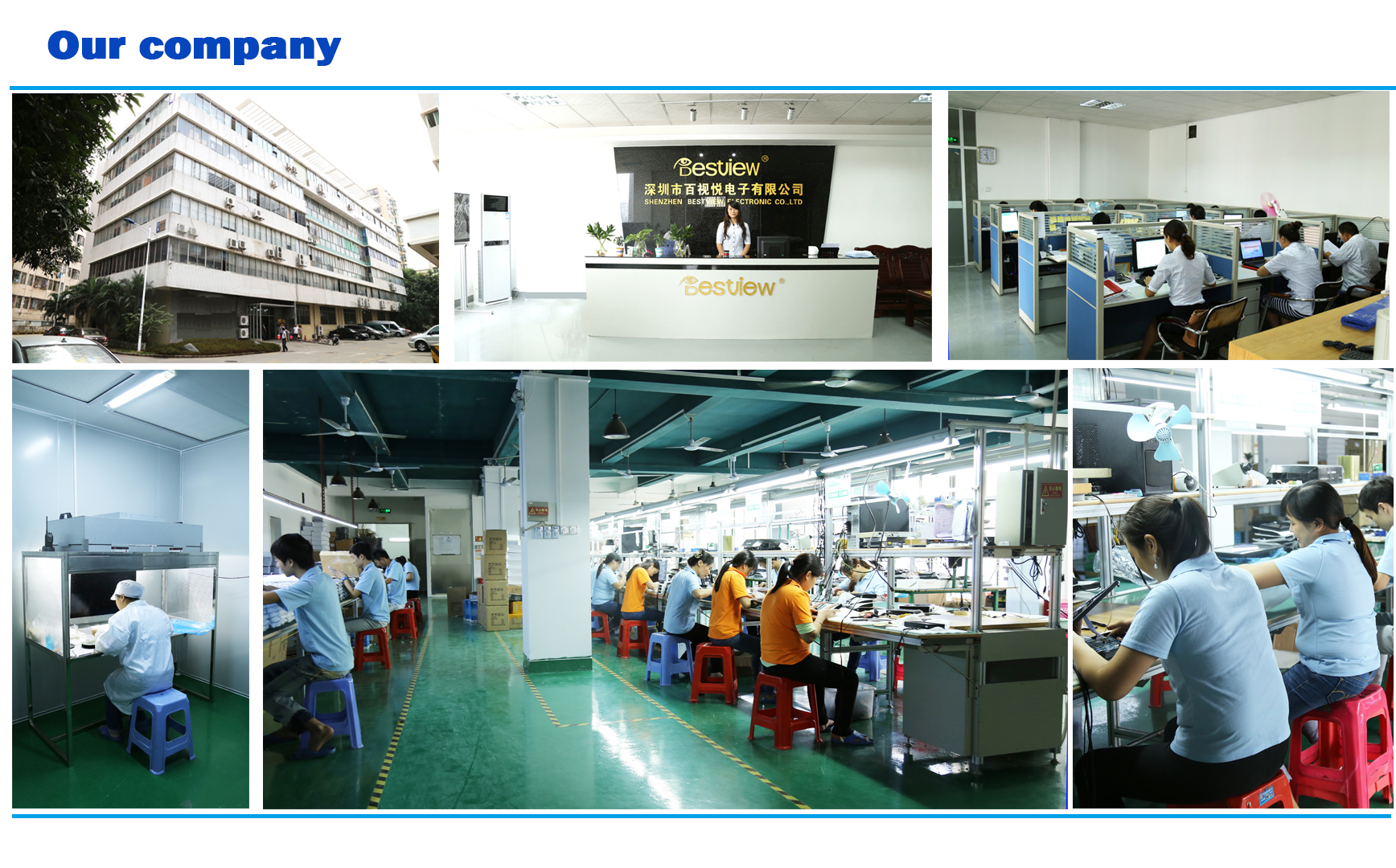

Company Introduction
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.
Our Services & Strength
1.Your any inquiry or question will be replied within 24hrs.
2.OEM&ODM are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize
your idea.
3.To be our agent or distributor is well welcomed.
4.You can find the right product you want,whatever the most competitive price or Highest quality!
Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.
Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product
has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.
has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc.
The market has spread Europe, America, Southeast Asia and other more than 60 countries.
FAQ
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
4.What’s the Warranty?
All products with 1year warranty, supply replacement or offer new parts according to our communication.
For quantity and regular order,you may keep the RMA and after long time collection,ship the RMA back together,we offer repair or
replacement,or if you have your own engineer department, no need return back,we can send repair parts to you
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
4.What’s the Warranty?
All products with 1year warranty, supply replacement or offer new parts according to our communication.
For quantity and regular order,you may keep the RMA and after long time collection,ship the RMA back together,we offer repair or
replacement,or if you have your own engineer department, no need return back,we can send repair parts to you
