- Memory Capacity:≥ 2GB
- Certification:FCC, CE, RoHS
- Material:Metal case
- Contrast Ratio:1000:1
- Resolution:1920*1080
- Display ratio:16:9
- Brightness:450cd/m2
- I/O Ports:VGA/HDMI/LAN/,USB for touch
- CPU:Intel Celeron J1900 2.0GHz Quad cores
- Hard Drive Capacity:64GB or above
- Warranty(Year):1-year
- Certification:FCC
- Certification:ce
- Certification:RoHS
- Display resolution:1920x1080
- Dispaly Ratio:16:9
- Plugs Type:Other
- Series:For Business
- Hard Drive Type:SSD+HDD
- Video Memory Type:GDDR3
- Operating System:Windows 10
- Graphics Card Chipset:Integrated Card
- Video Memory:2 GB
- Video Card:NVIDIA Quadro T1000
- After-sales Service:Free spare parts
- Products Status:New
- Type:ALL-IN-ONE
- Screen Size:21.5"
- Processor Brand:Intel
- Graphics Card Type:Integrated Card
- Display Type:LCD
- Widescreen:yes
- Optical Drive Type:No CD ROM
- Use:Industrial
- Place of Origin:CN;GUA
- Processor Main Frequency:2.0GHz
- Brand Name:Bestview/OEM/ODM
- Model Number:YT215PC-C
Related Products
Product Description

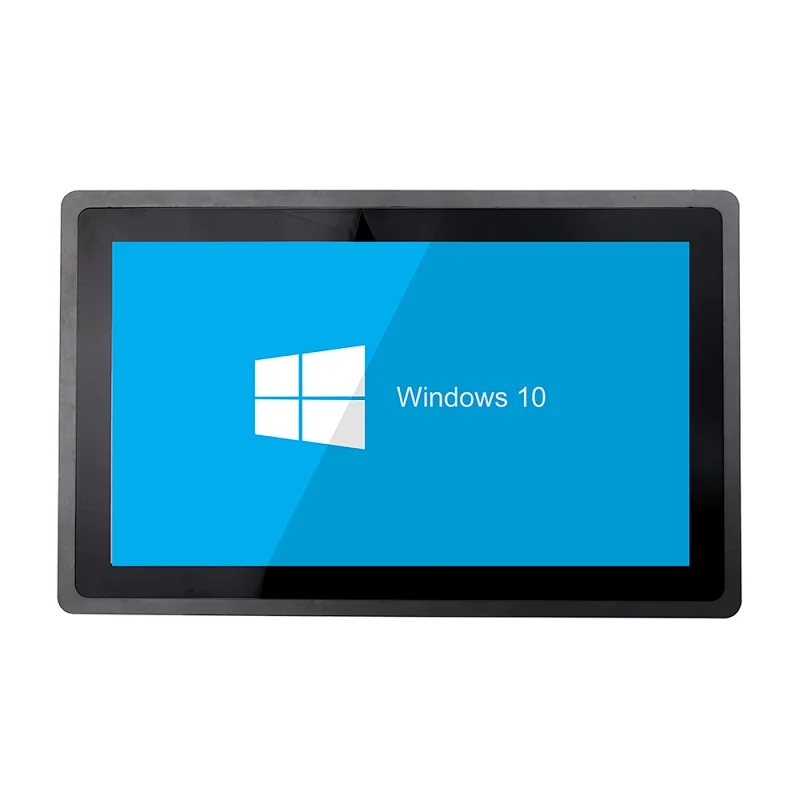

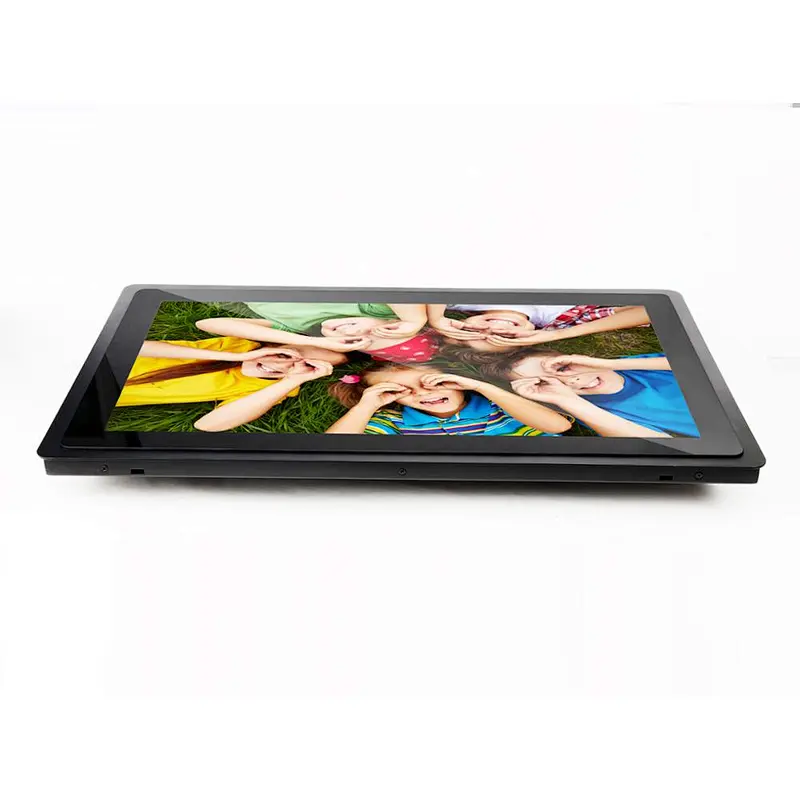

21.5 inch industrial touch screen all in one panel pc with aluminium IP65 front case
LCD panel( IPS screen) | ||||
21.5 inch Metal case all in one Panel PC (YT215PC) | ||||
PC | ||||
CPU | Intel® Celeron J1900 2.0GHz quad cores( Core i3, Core i5 optional) | |||
Memory | 2G DDR3, ( Max. 8G) | |||
Hard Drive Capacity | 32G SSD or 320G HDD | |||
Hard Drive Optional | SSD: 64GB,128GB,160GB | |||
HDD: 160GB,320GB,500GB,1TB | ||||
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality | |||
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | |||
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller | |||
Wireless Network | WIFI optional | |||

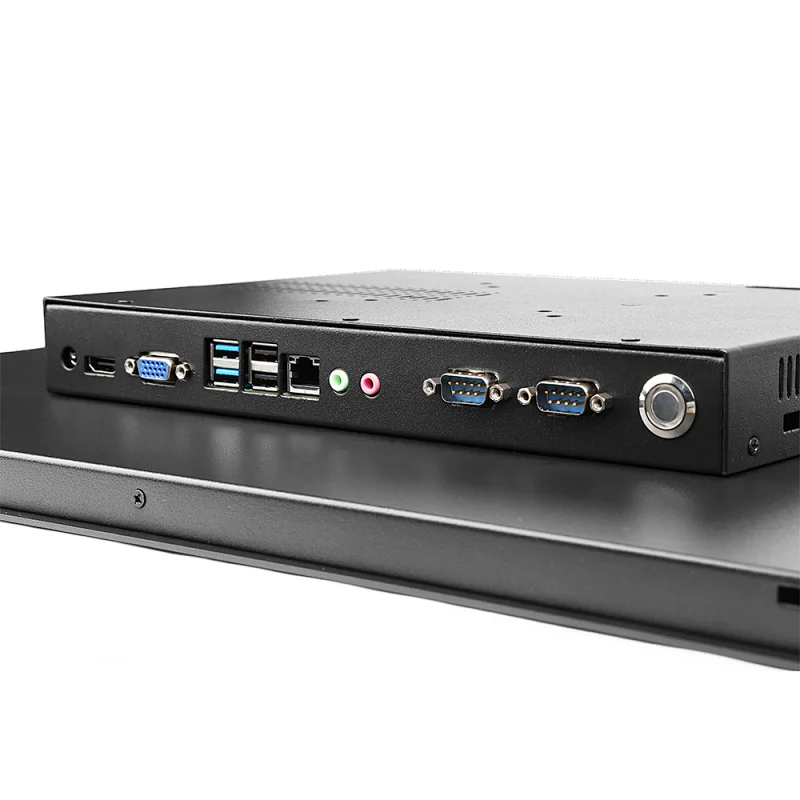

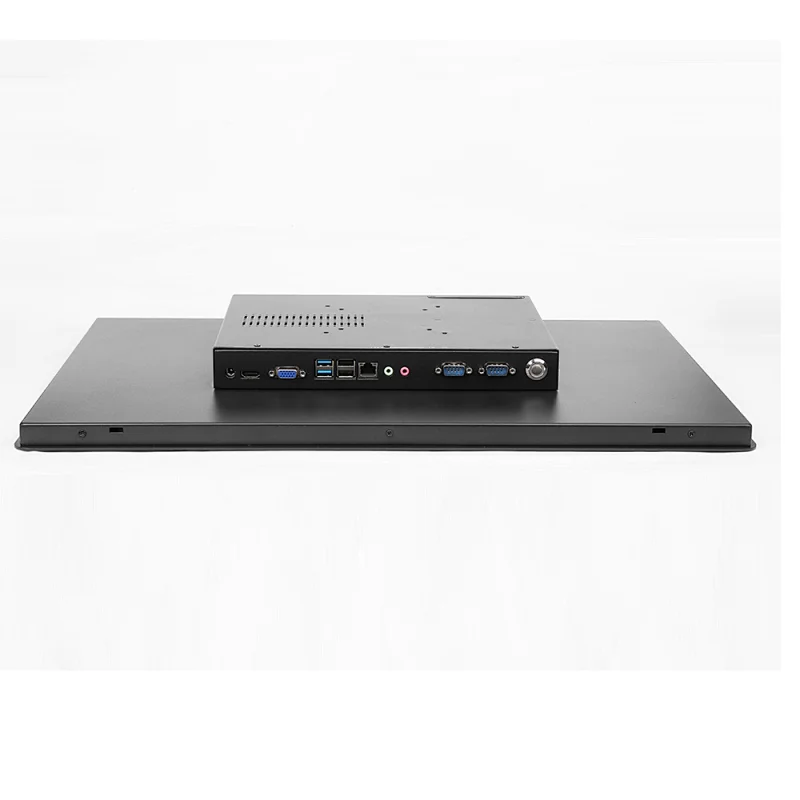

I/O Interface | 2×USB2.0,2xUSB3.0,1×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC | |||
Opetation System | Preinstall test version Windows 7/8/10,Linux | |||
LCD panel | ||||
Panel size | 21.5" | |||
Resolution | 1920*1080 | |||
Brightness (cd/m²) | 300 nits ( 800-1000 nits optional ) | |||
Response time | 15ms | |||
Contrast ratio | 700:1 | |||
View angle | 89°/89°/89°/89° (R/L/U/D) | |||
Touch panel | ||||
Touchscreen Type | capacitive touch for optional | |||
Touch Interface | USB | |||
Touch response time | <8ms | |||
Luminousness | 75-85% | |||
Power Supply | ||||
External Power Supply | AC 100 - 240V | |||
Working voltage | DC 12V (12V-36V optional ) | |||
Power consumption | ≤18W | |||
Operating Environment | ||||
Temperature range | operating: -25 to 75°C, storage :-30 to 80°C | |||
Relative humidity | 5%~95% @ 40° C, non-condensing | |||
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
Packing Details | ||||
Net weight | 7kg | |||
Gross weight | 10kg | |||
Accessories | Power adapter, USB touch CD drive, touch pen, wall mounting bracket | |||
Other | ||||

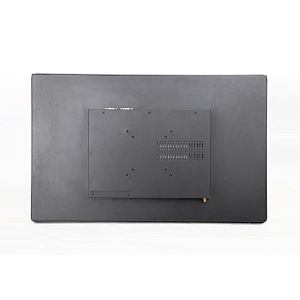

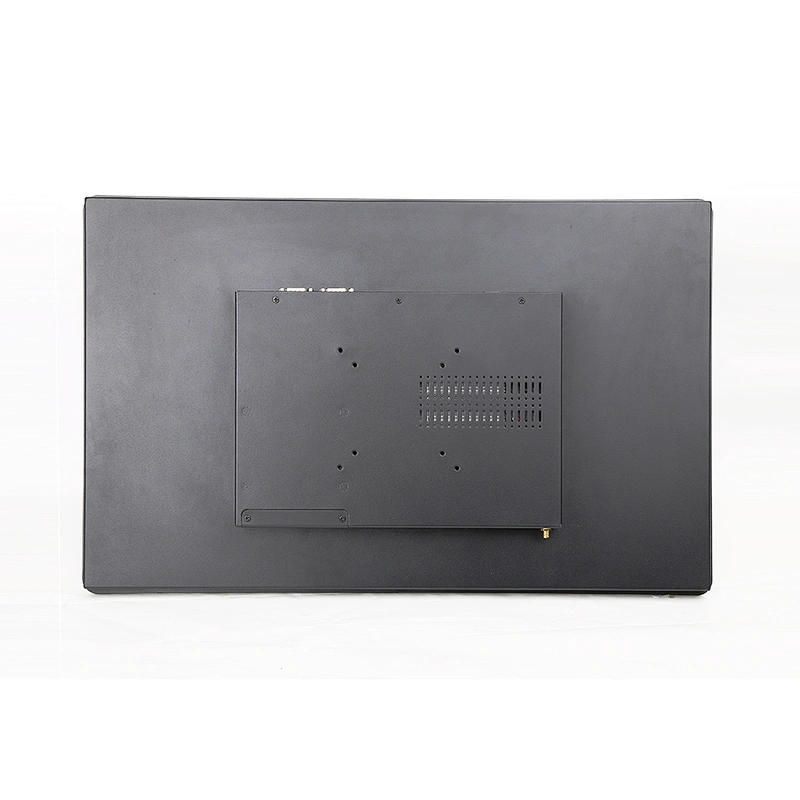

Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm | |||
2) provide stable metal holder to support the monitor | ||||
Certification | CE, FCC | |||
Warranty | 1 year warranty | |||
