Model NO.:
YT17PC
Product Description

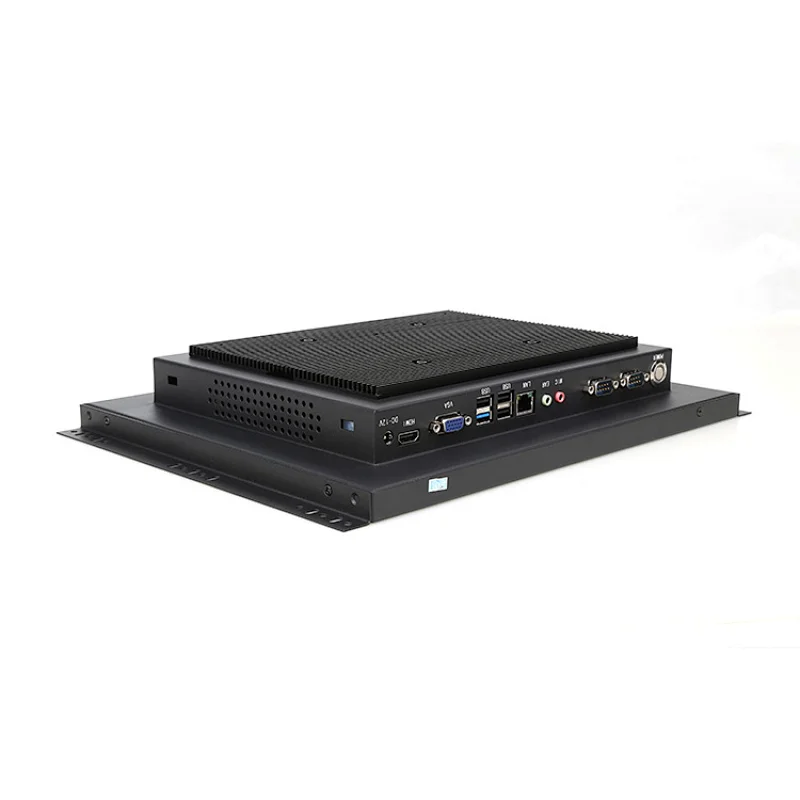

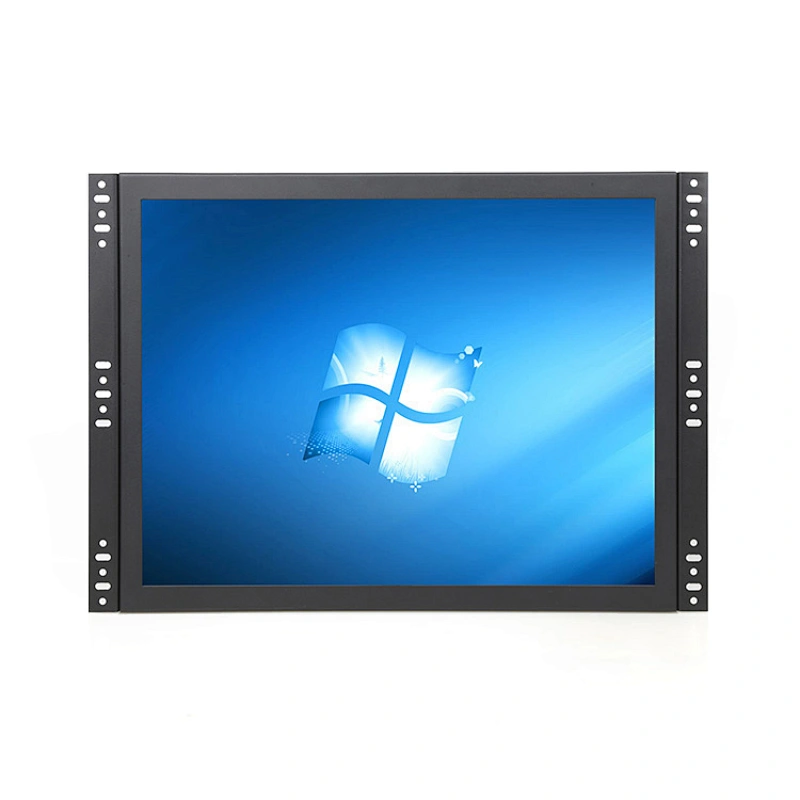

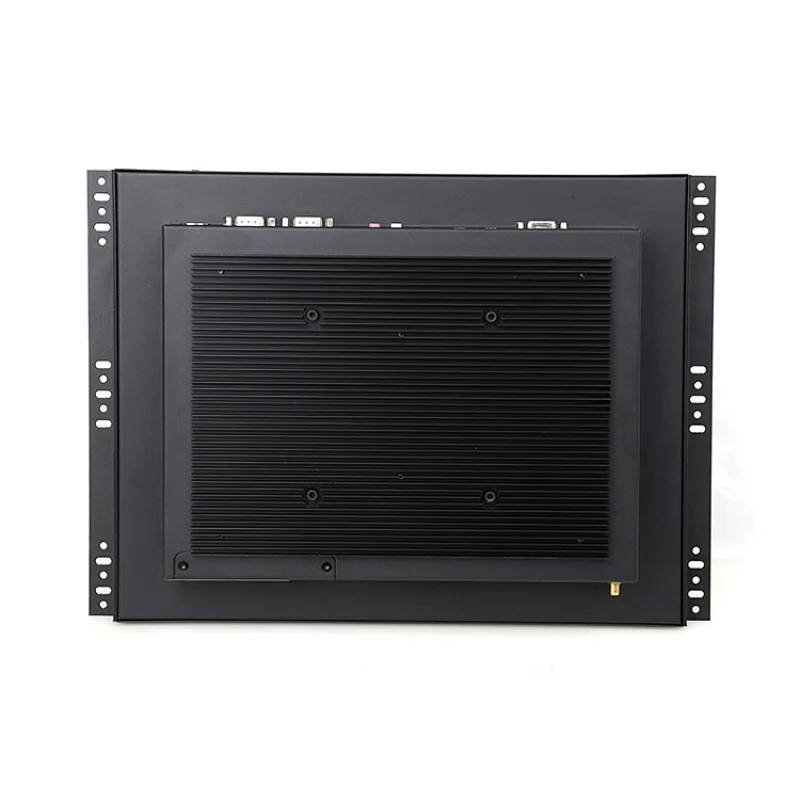

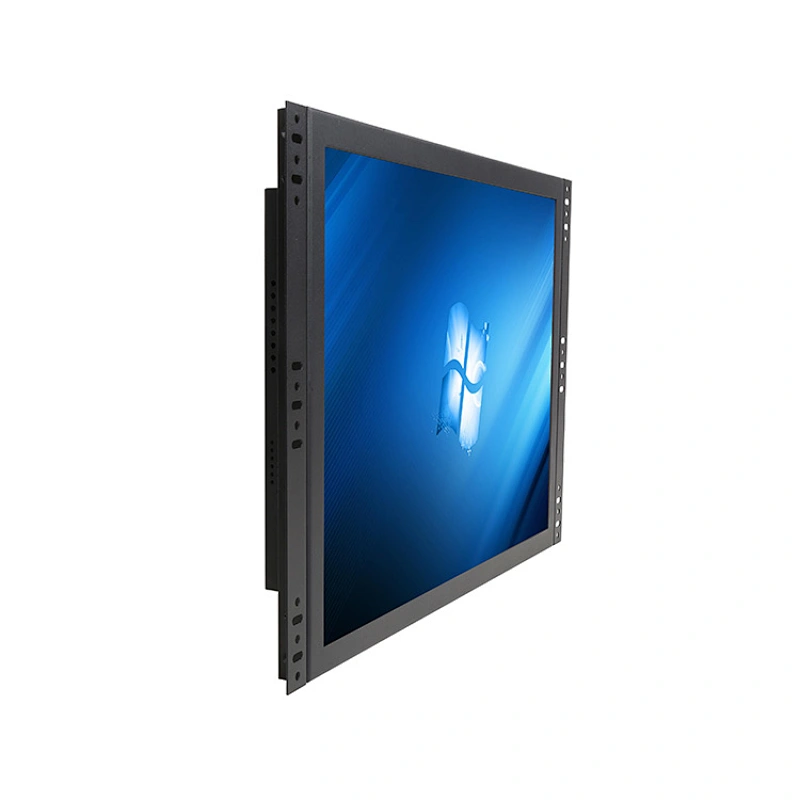

17 inch Metal case industrial all in one Panel PC (YT17PC-R)

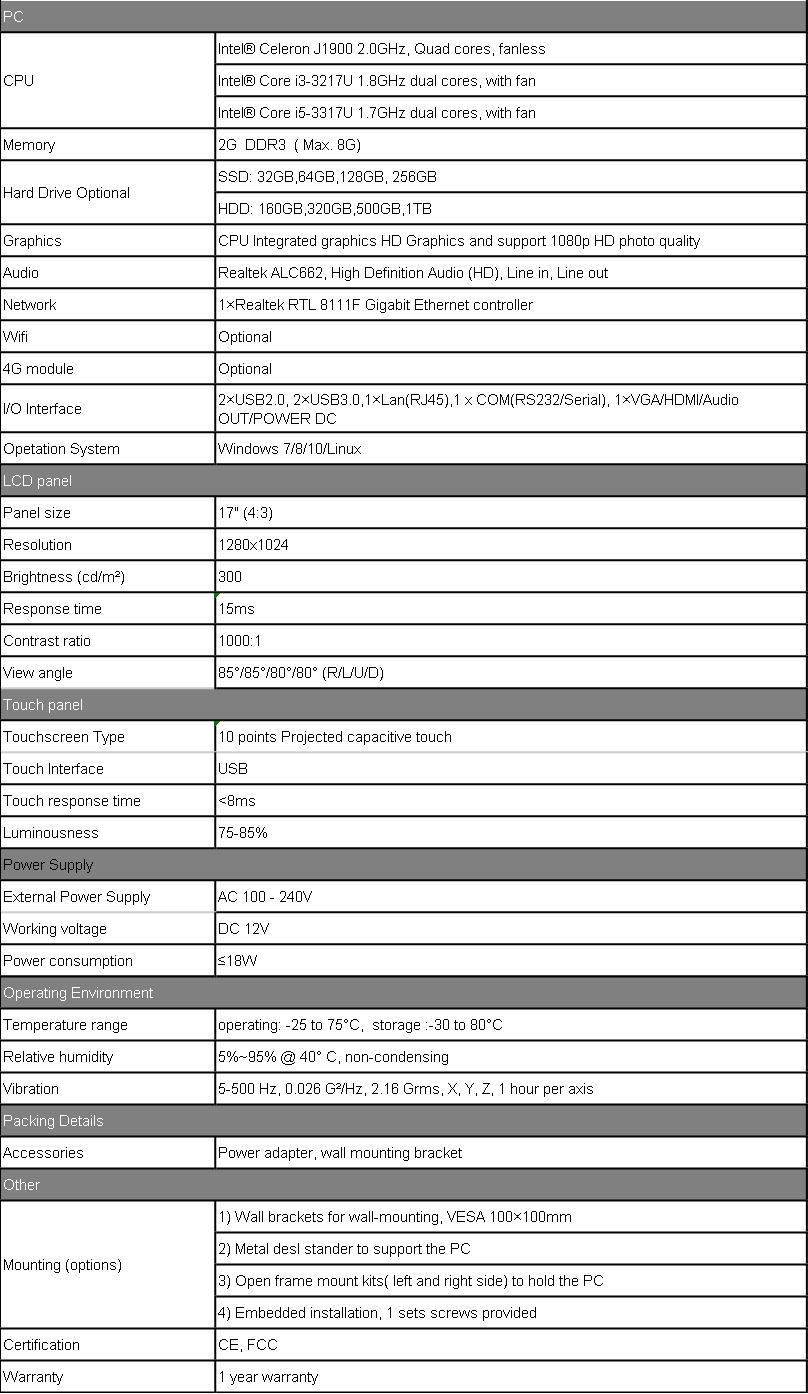

PC
CPU
Intel® Celeron J1900 2.0GHz dual cores, fanless( Core i3, Core i5 optional)
Memory
2G DDR3, ( Max. 8G)
Hard Drive Capacity
32G SSD or 320G HDD
Hard Drive Optional
SSD: 16GB,32GB,64GB,128GB,160GB
HDD: 160GB,320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
WIFI optional
I/O Interface

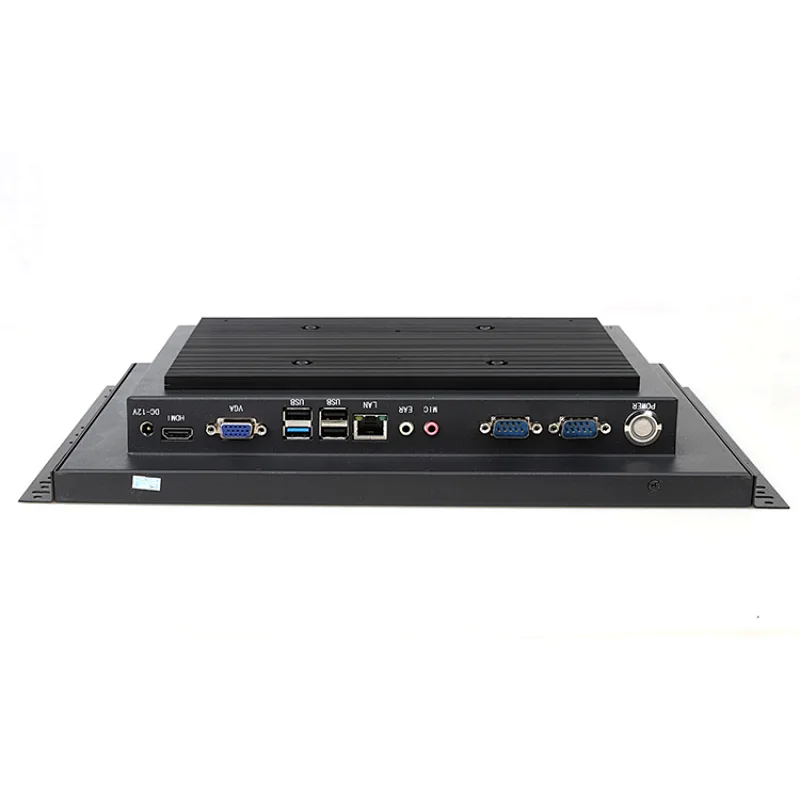

2×USB2.0,2×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC
Opetation System
Preinstall test version Windows 7
LCD panel
Panel size
17"(4:3)
Resolution
1280*1024
Brightness (cd/m²)
300
Response time
15ms
Contrast ratio
500:1
View angle
80°/80°/70°/70° (R/L/U/D)
Touch panel
Touchscreen Type
4 wires resistive touch( 5 wires resistive ,capacitive touch for optional)
Touch Interface
USB (RS232 optional)
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -25 to 75°C, storage :-30 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Accessories
Power adapter, USB touch CD drive, touch pen, wall mounting bracket
Other
Mounting (options)

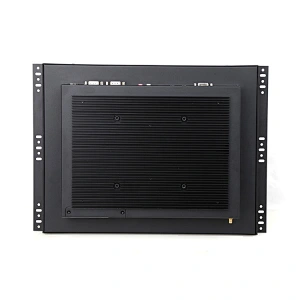

1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Certification
CE, FCC
Warranty
1 year warranty
