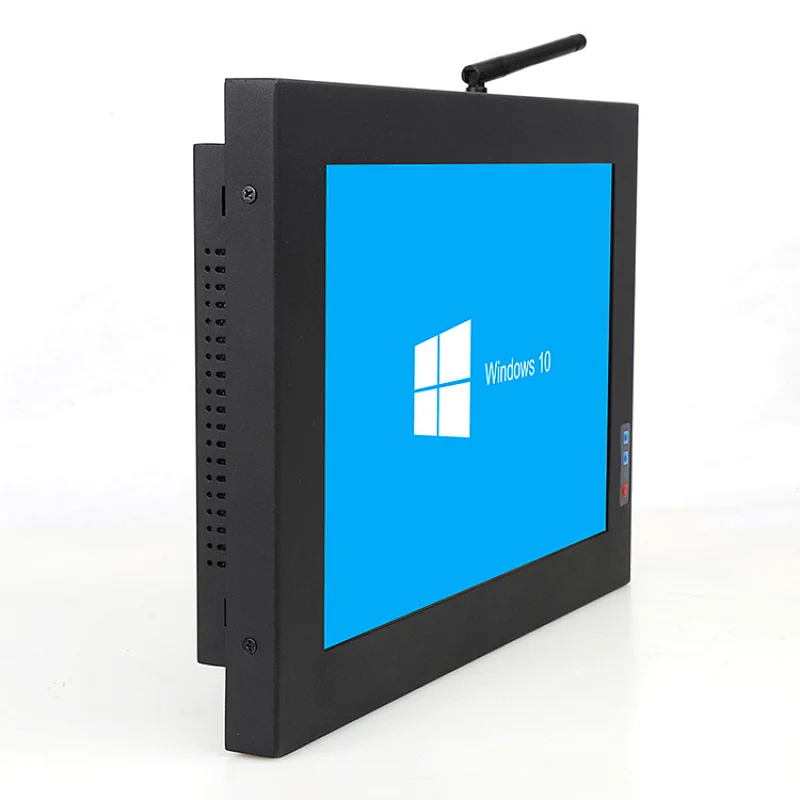

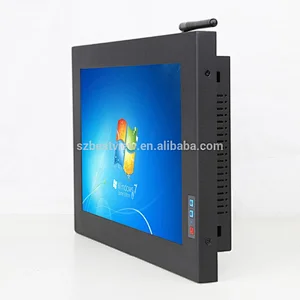

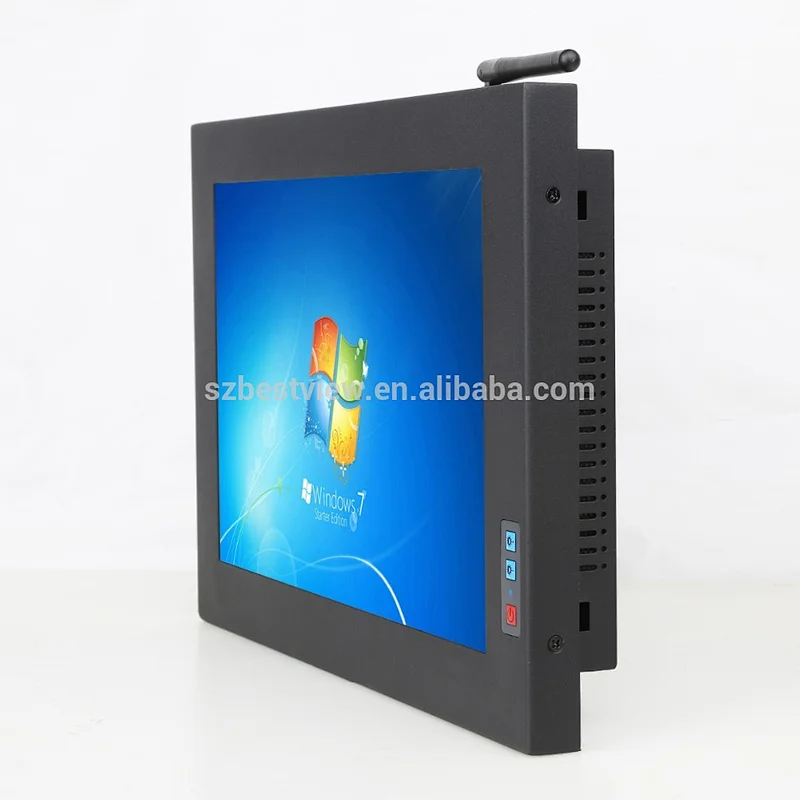

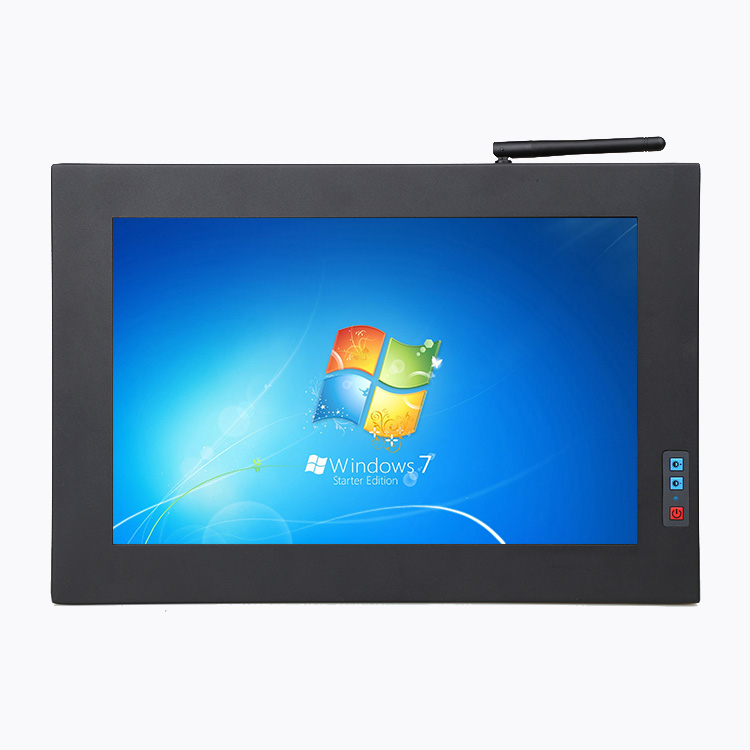

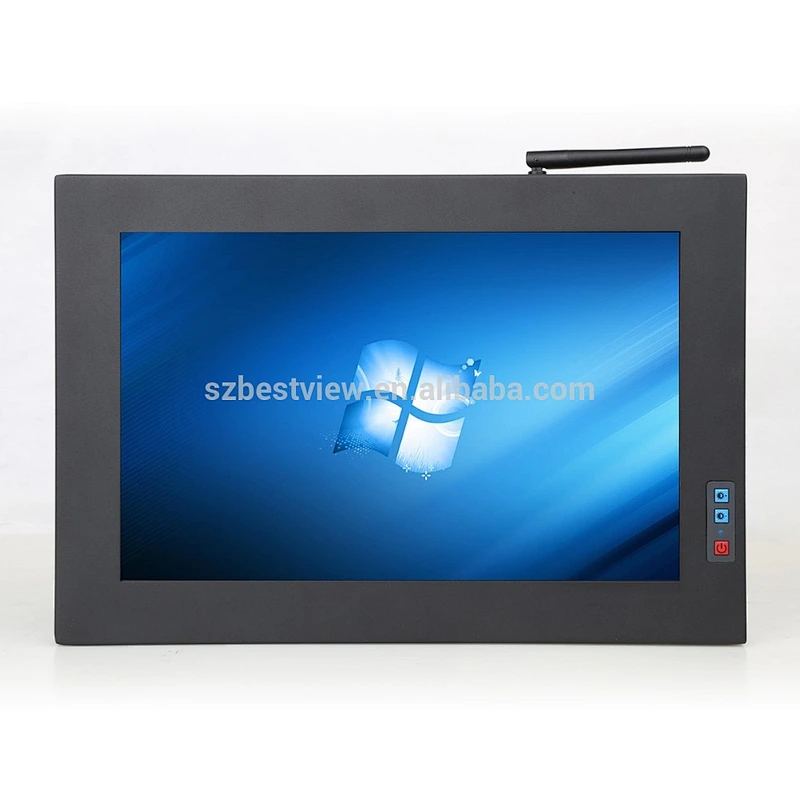

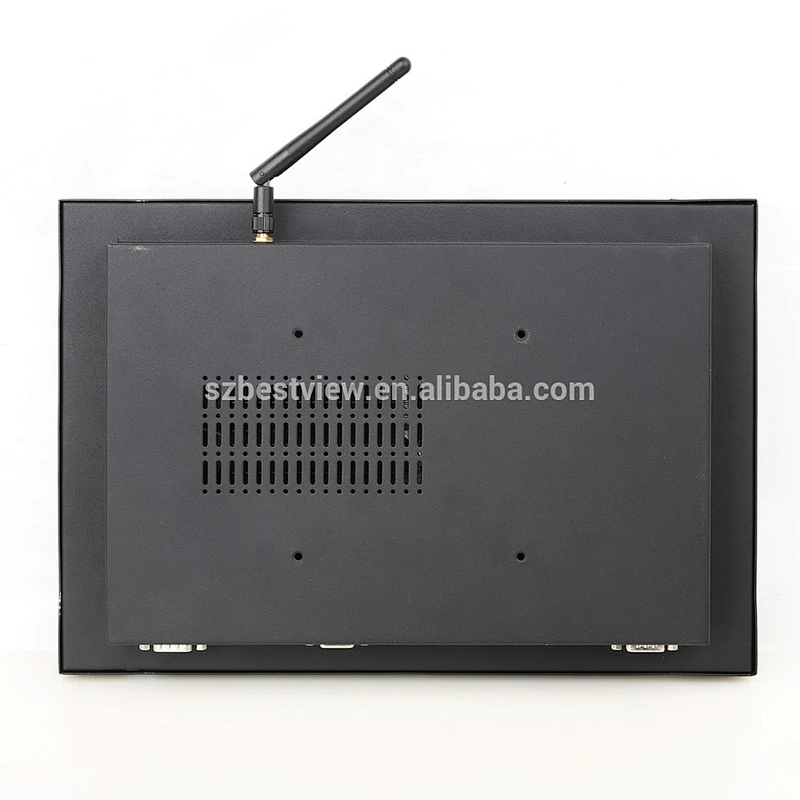

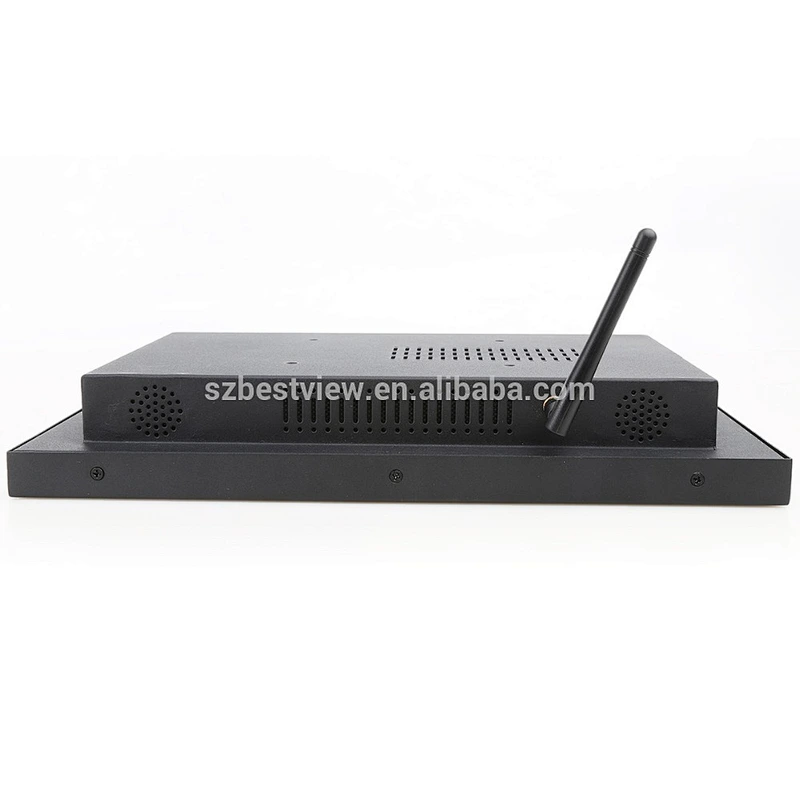

12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control
12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control
12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control
12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control
12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control
12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control

12 inch ODM OEM industrial resistive/Capacitive touch screen panel pc 1280x800 with 3 keys front control

Model NO.:
YT121PC-R (ODM)
Min order:
2 pieces
Supply Ability:
10000.0 pieces / Month
Country of Origin:
shenzhen/Hongkong
Product Catalogue

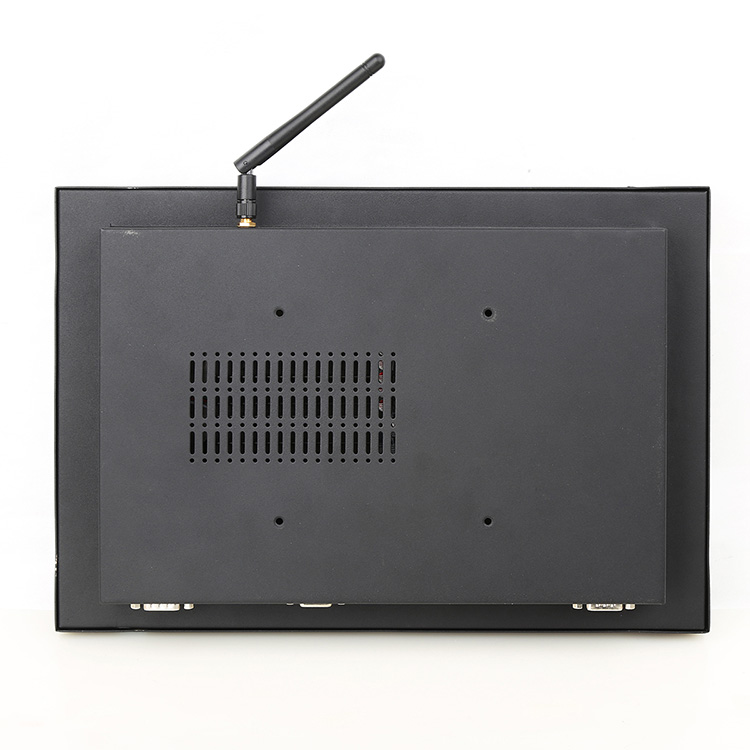

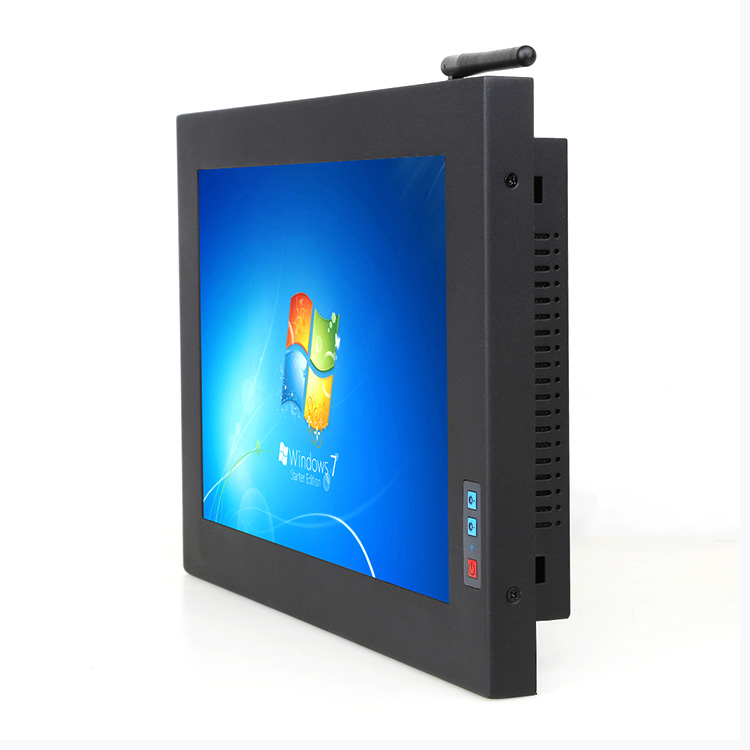

Details Images

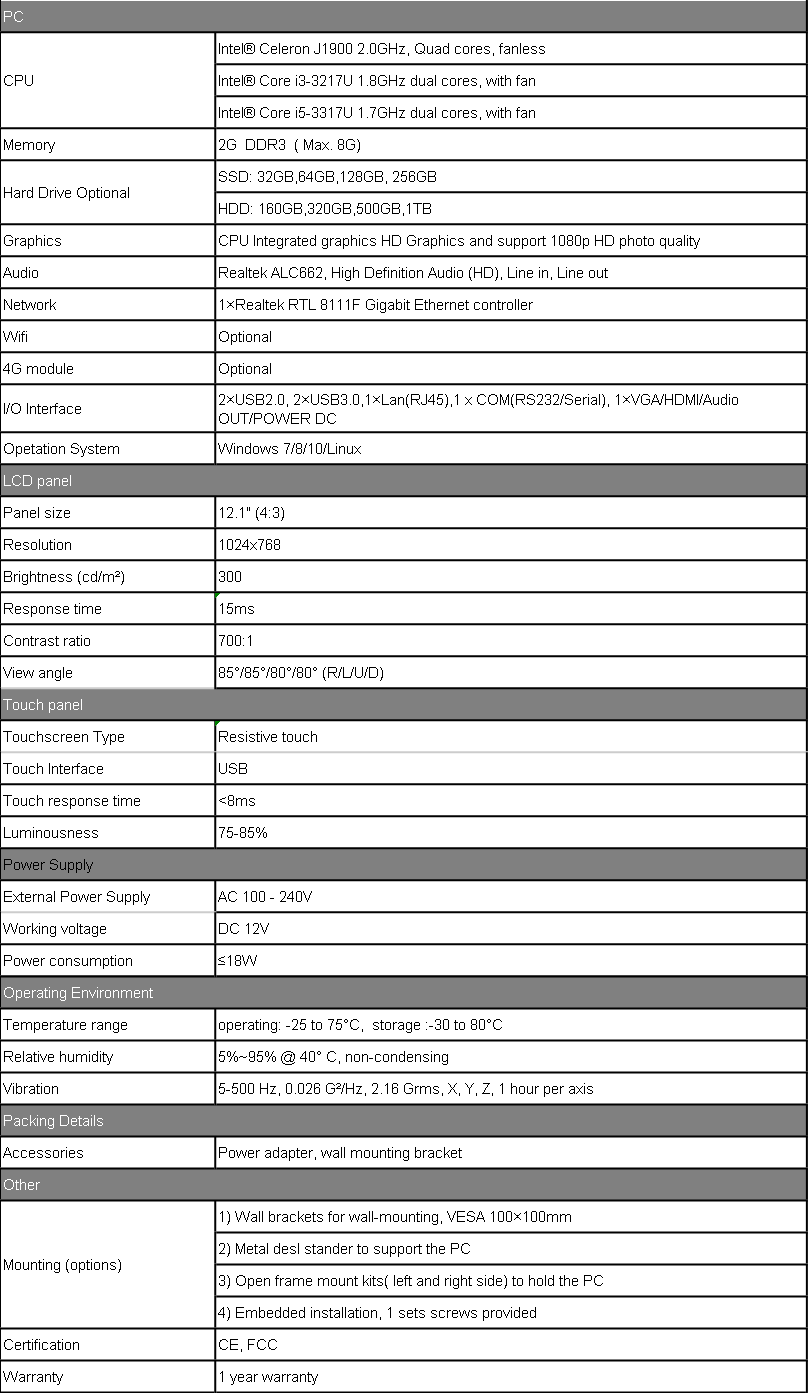

Products Description
PC
CPUs
Intel® Celeron J1900 2.0GHz dual cores(Core i3, Core i5 optional)
Memory
2G DDR3, ( Max. 8G)
Hard Drive Capacity
32G SSD or 320G HDD
Hard Drive Optional
SSD: 16GB,32GB,64GB,128GB,160GB
HDD: 160GB,320GB,500GB,1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
WIFI optional

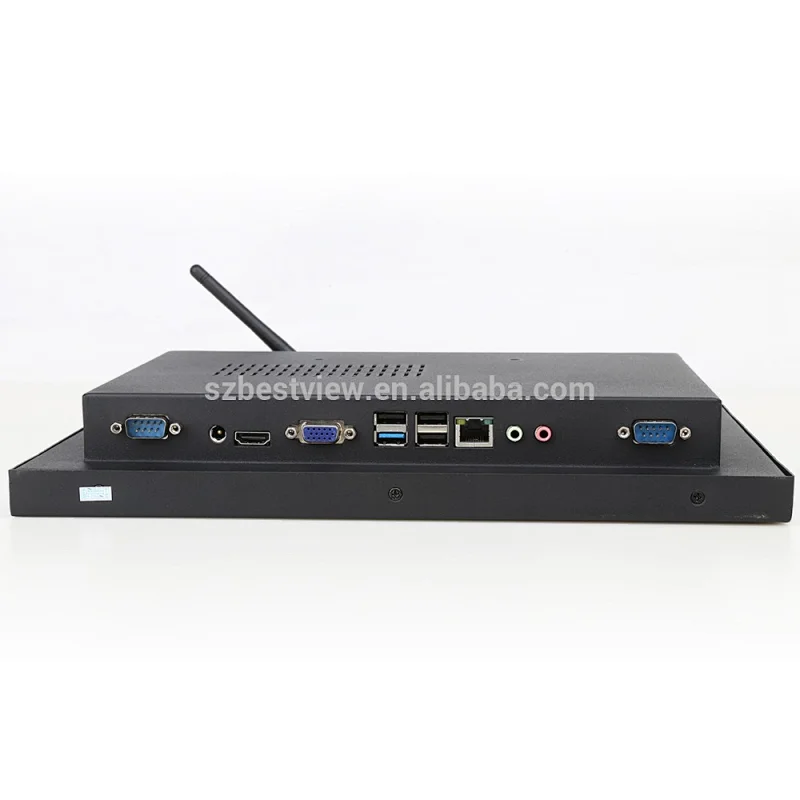

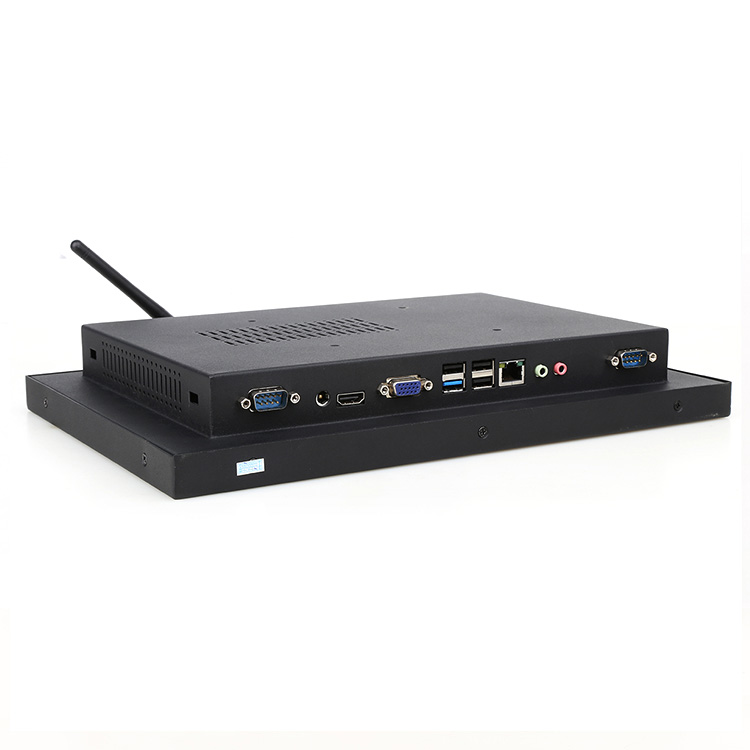

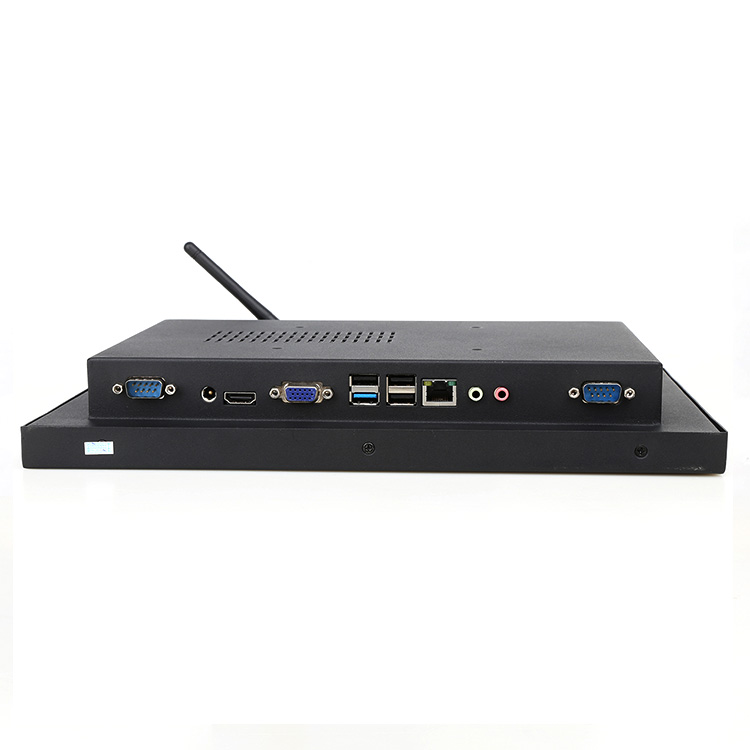

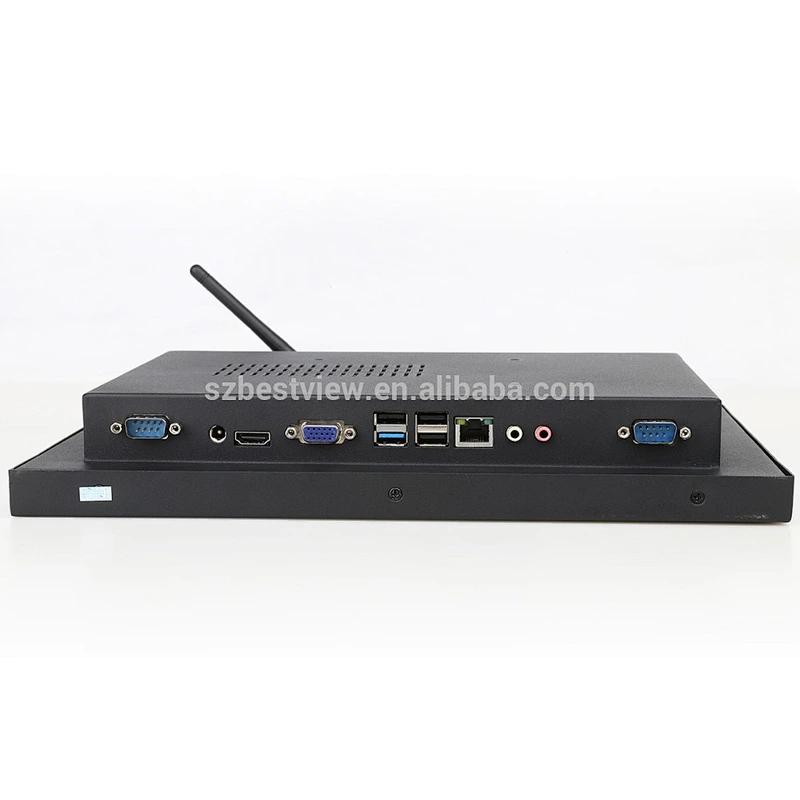

I/O Interface
2×USB2.0,2×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC
Opetation System
Preinstall test version Windows 7
LCD panel
Panel size
12.1"(16:10)
Resolution
1280x800
Brightness (cd/m²)
350
Response time
15ms
Contrast ratio
500:1
View angle
80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type
Projected Capacitive touch
Touch Interface
USB (RS232 optional)
Touch response time
<8ms
Luminousness
75-85%
Power Supply
External Power Supply
AC 100 - 240V
Working voltage
DC 12V
Power consumption
≤18W
Operating Environment
Temperature range
operating: -25 to 75°C, storage :-30 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight
4kg
Gross weight
4.5kg
Accessories
Power adapter, USB touch CD drive, touch pen, wall mounting bracket
Other
Mounting (options)
1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Certification
CE, FCC
Warranty
1 year warranty
Product packaging
Company Profile
Company Profile
Bestview is a national high technology company, professional R&D, produce and sell broadcast field monitor, industrial touch monitor and All in one PC. With the powerful technology advantage and rigorous quality control process, Bestview already got certifications of CE, KCC, FCC,CCC,ROHS,IP67,HDMI and ISO9001. Bestview has won the favor of many customers from abroad.Bestview main Partners: Coca Cola, Pepsi, KYOCERA Corporation, Huawei, Midea, Chinese Academy of Sciences, Hollywood, Heng Dian World Studios etc.

Bestview is famous for professional product functions, high quality and cost-effective. With the 14 years professional R&D experience, we have accumulate many precious experience and good reputation. Bestview has already been a famous brand. The product has already applied every photography field in the world, industry generation four, rail way traffic, industry application etc. The market has spread Europe, America, Southeast Asia and other more than 60 countries.
FAQ
1.How to pay ?
For bulk order it is better to pay by TT(HSBC),to save your banking charges.
For sample and small order, Paypal and Western Union are acceptable.
2.When can get?
For available model,after payment(or Deposit) received,sample need around 1-3days,quantity order need 15-20days.
OEM or ODM order,the lead time is negotiated.
3.How to get?
All items can be shipped by DHL, UPS, FEDEX, EMS,BY AIR ,BY SEA and so on ACCORDINGLY.
4.What’s the Warranty?
All products with 1year warranty, supply replacement or offer new parts according to our communication.
For quantity and regular order,you may keep the RMA and after long time collection,ship the RMA back together,we offer repair or
replacement,or if you have your own engineer department, no need return back,we can send repair parts to you
